Elpress Crimp Dies for V1300C2, V1311C2-A and PVX1300C2 (Cu Lugs & C-Sleeves)
Product overview
Elpress Crimp Dies for V1300C2, V1311C2-A and PVX1300C2
Elpress Crimp Dies for V1300C2, V1311C2-A and PVX1300C2 (Cu Lugs & C-Sleeves). The B dies below are intended for Cu Terminals (type KR/KRF/KRD/KRT and KS/KSF/KSD/KST), together with both stranded and multi-stranded Cu Conductors (Class 2) respectively according to IEC 60228. For multi-stranded (Class 5) Cu Conductors, crimping is recommended with the DUAL System. Not integrated dies are suggested to use with Elpress Die Holder V1330.
Make sure to use dies exactly matching the terminals.
Crimp Dies (C-Fork) for KRF/ KSF
For Cu Terminals, hexagonal crimping. Supplied in pairs. Use with Die Holder V1330 (below).
Elpress Part Numbers: B8, B9, B11, B13, B14,5, B17, B20, B22, B25. See table below for additional technical information.
Crimp Dies (C-Fork) for KRF/ KSF (integrated)
For Cu Terminals, hexagonal crimping. Supplied in pairs. Use without a die holder.
Elpress Part Numbers: 13CB8, 13CB9, 13CB11, 13CB13, 13CB14,5, 13CB17, 13CB20, 13CB22, 13CB25, 13CB27, 13CB30, 13CB32, 13C21B38. See table below for additional technical information.
Crimp Dies (C-Fork) for KRD/ KSD
For Cu Terminals, hexagonal crimping. Supplied in pairs.
The B Dies below are intended for Cu Terminals, type KRD/KSD, together with Cu conductors Class 2 according to IEC 60228. Use with Die Holder V1330 (below).
Elpress Part Numbers: B8, B9, B11, B12, B14, B16, B19, B22. See table below for additional technical information.
Crimp Dies (C-Fork) for KRD/ KSD (integrated)
For Cu Terminals, hexagonal crimping. Supplied in pairs. Use without a die holder.
Elpress Part Numbers: 13CB8, 13CB9, 13CB11, 13CB12, 13CB14, 13CB16, 13CB19, 13CB22, 13CB25, 13CB27, 13CB30, 13CB32. See table below for additional technical information.
Crimp Dies (C-Fork) for KRT/ KST
For Cu Terminals, hexagonal crimping. Supplied in pairs. Elpress V1330, V1300C2 Dies
The B Dies below are intended for Cu Terminals, type KRT/KST, together with Cu conductors Class 2 according to IEC 60228. Use with Die Holder V1330 (below).
Elpress Part Numbers: B7, B8,5, B10, B12, B14, B16, B18, b19, B22, B24. See table below for additional technical information.
Crimp Dies (C-Fork) for KRT/ KST (integrated)
For Cu Terminals, hexagonal crimping. Supplied in pairs. Use without a die holder.
Elpress Part Numbers: 13CB7, 13CB8,5, 13CB10, 13CB12, 13CB14, 13CB16, 13CB18, 13CB19, 13CB22, 13CB24, 13CB26, 13CB30, 13CB32. See table below for additional technical information.
Crimp Dies (C-Fork) for C-sleeves
For Cu branching with C-sleeves, oval crimping. Unless otherwise stated, use with Die Holder V1330 (below).
Elpress Part Numbers: BC5, BC6, BC8-9, 13CBC13, 13CBC15. See table below for additional technical information.
Dies Holders for the V1300C2 System
Elpress Die Holder V1330 – Net Weight: 0,43 |
General Information
SYSTEM ELPRESS
System Elpress consists of terminals and tools, designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems. It also ensures the achievement of a secure connection through the proper handling of our products.
HYDRAULIC CRIMP SYSTEMS
Elpress hydraulic crimp systems crimp from 10 to 1200 mm². The systems consist of pumps and crimp heads that can be freely combined or with complete hand-held tools, where these devices are integrated. Wide range of accessories available for crimping, pre-rounding, cutting etc. Together with the matching terminals, they form a complete system. Both pumps and hand-held tools have, with a few exceptions, quick feed function that means crimping can begin after a few pump strokes. The systems have a built-in ratchet lock that ensures the completion of the initial crimp and thus, produces results with the best characteristics. Pumps can connect to the different crimp heads providing the option of comfortable work in difficult situations and with maximum flexibility.
For more information on Elpress Crimp Dies for V1300C2, V1311C2-A and PVX1300C2 (Cu Lugs & C-Sleeves), consult PDF File or Technical Data Table below. Elpress V1330, V1300C2 Dies
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
Crimp Dies (C-Fork) for KRF/ KSFFor Cu Terminals, hexagonal crimping. Supplied in pairs. Use with Die Holder V1330 (below). |
| KR/ KS, KRF/ KSF mm2 | Name | Number of Crimps | Net Weight (kg) |
| 10 | B8 | 1 | 0,101 |
| 16 | B9 | 1 | 0,103 |
| 25 | B11 | 1 | 0,109 |
| 35 | B13 | 1 | 0,113 |
| 50 | B14,5 | 1 | 0,111 |
| 70 | B17 | 1 | 0,107 |
| 95 | B20 | 1 | 0,115 |
| 120 | B22 | 1 | 0,148 |
| 150 | B25 | 1 | 0,135 |
Crimp Dies (C-Fork) for KRF/ KSF (integrated)For Cu Terminals, hexagonal crimping. Supplied in pairs. Use without a die holder. |
| KR/ KS, KRF/ KSF mm2 | Name | Number of Crimps | Net Weight (kg) |
| 10 | 13CB8 | 1 | 0,434 |
| 16 | 13CB9 | 1 | 0,446 |
| 25 | 13CB11 | 1 | 0,468 |
| 35 | 13CB13 | 1 | 0,488 |
| 50 | 13CB14,5 | 1 | 0,481 |
| 70 | 13CB17 | 1 | 0,480 |
| 95 | 13CB20 | 1 | 0,497 |
| 120 | 13CB22 | 1 | 0,537 |
| 150 | 13CB25 | 2 | 0,474 |
| 185 | 13CB27 | 2 | 0,478 |
| 240 | 13CB30 | 2 | 0,535 |
| 300 | 13CB32 | 2 | 0,491 |
| 400 | 13C21B38 | 3 | 0,450 |
Crimp Dies (C-Fork) for KRD/ KSDFor Cu Terminals, hexagonal crimping. Supplied in pairs. |
| KRD/ KSD mm2 | Name | Number of Crimps | Net Weight (kg) |
| 16 | B8 | 1 | 0,101 |
| 25 | B9 | 1 | 0,103 |
| 35 | B11 | 1 | 0,109 |
| 50 | B12 | 1 | 0,108 |
| 70 | B14 | 1 | 0,112 |
| 95 | B16 | 1 | 0,107 |
| 120 | B19 | 1 | 0,118 |
| 150 | B22 | 1 | 0,148 |
Crimp Dies (C-Fork) for KRD/ KSD (integrated)For Cu Terminals, hexagonal crimping. Supplied in pairs. Use without a die holder. |
| KRD/ KSD mm2 | Name | Number of Crimps | Net Weight (kg) |
| 16 | 13CB8 | 1 | 0,434 |
| 25 | 13CB9 | 1 | 0,446 |
| 35 | 13CB11 | 1 | 0,468 |
| 50 | 13CB12 | 1 | 0,466 |
| 70 | 13CB14 | 1 | 0,483 |
| 95 | 13CB16 | 1 | 0,484 |
| 120 | 13CB19 | 1 | 0,500 |
| 150 | 13CB22 | 1 | 0,537 |
| 185 | 13CB25 | 2 | 0,474 |
| 240 | 13CB27 | 2 | 0,478 |
| 300 | 13CB30 | 2 | 0,535 |
| 400 | 13CB32 | 2 | 0,491 |
Crimp Dies (C-Fork) for KRT/ KSTFor Cu Terminals, hexagonal crimping. Supplied in pairs. |
| KRT/ KST mm2 | Name | Number of Crimps | Net Weight (kg) |
| 10 | B7 | 1 | 0,101 |
| 16 | B8,5 | 1 | 0,101 |
| 25 | B10 | 1 | 0,106 |
| 35 | B12 | 1 | 0,108 |
| 50 | B14 | 1 | 0,112 |
| 70 | B16 | 1 | 0,107 |
| 95 | B18 | 1 | 0,120 |
| 120 | B19 | 1 | 0,118 |
| 150 | B22 | 1 | 0,148 |
| 185 | B24 | 1 | 0,139 |
Crimp Dies (C-Fork) for KRT/ KST (integrated)For Cu Terminals, hexagonal crimping. Supplied in pairs. Use without a die holder. |
| KRD/ KSD mm2 | Name | Number of Crimps | Net Weight (kg) |
| 10 | 13CB7 | 1 | 0,460 |
| 16 | 13CB8,5 | 1 | 0,460 |
| 25 | 13CB10 | 1 | 0,475 |
| 35 | 13CB12 | 1 | 0,466 |
| 50 | 13CB14 | 1 | 0,483 |
| 95 | 13CB16 | 1 | 0,484 |
| 95 | 13CB18 | 1 | 0,502 |
| 120 | 13CB19 | 1 | 0,500 |
| 150 | 13CB22 | 1 | 0,537 |
| 185 | 13CB24 | 2 | 0,482 |
| 240 | 13CB26 | 2 | 0,480 |
| 300 | 13CB30 | 2 | 0,535 |
| 400 | 13CB32 | 2 | 0,491 |
Crimp Dies (C-Fork) for C-sleevesFor Cu branching with C-sleeves, oval crimping. Unless otherwise stated, use with Die Holder V1330 (below). |
| Through Conductor & Branching mm2 |
mm2 | Name | No of Crimps | Net Weight (kg) | Die Holder |
| 6-16 | Total: 12-26 | BC5 | 1 | 0,112 | Required |
| 5-25 | Total: 30-50 | BC6 | 1 | 0,149 | Required |
| 6-50 | Total: 50-100 | BC8-9 | 1 | 0,138 | Required |
| 25-120 | Total: 95-190 | 13CBC13 | 3 | 0,620 | |
| 25-185 | Total: 175-240 | 13CBC15 | 3 | 0,462 |
Dies Holders for the V1300C2 System |
|
Elpress Die Holder V1330 - Net Weight: 0,43 |
Technical Information

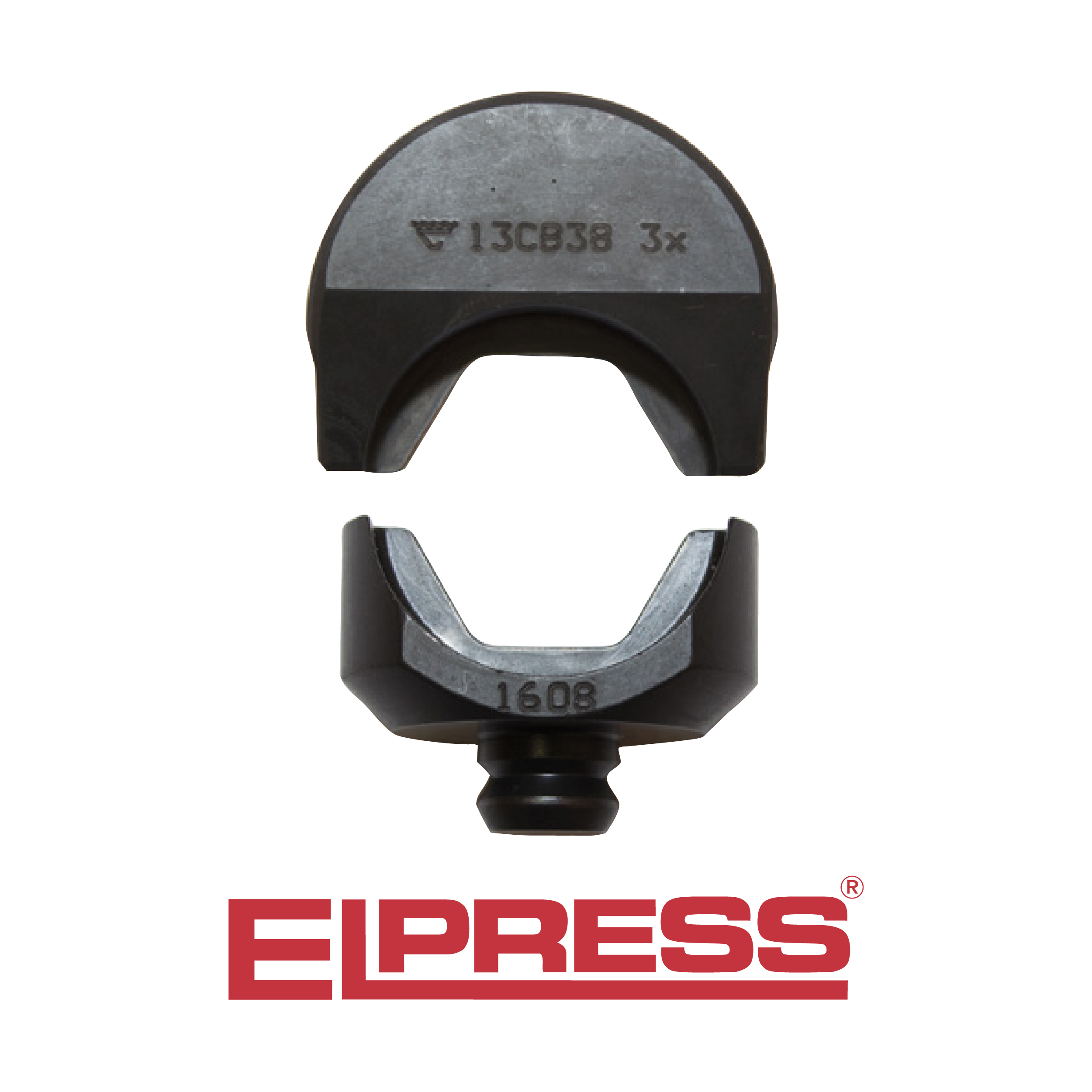

- Image 1: Die pair 13CB27, to be used with die holder V1330.
- Image 2: One, two and three crimps demonstration.

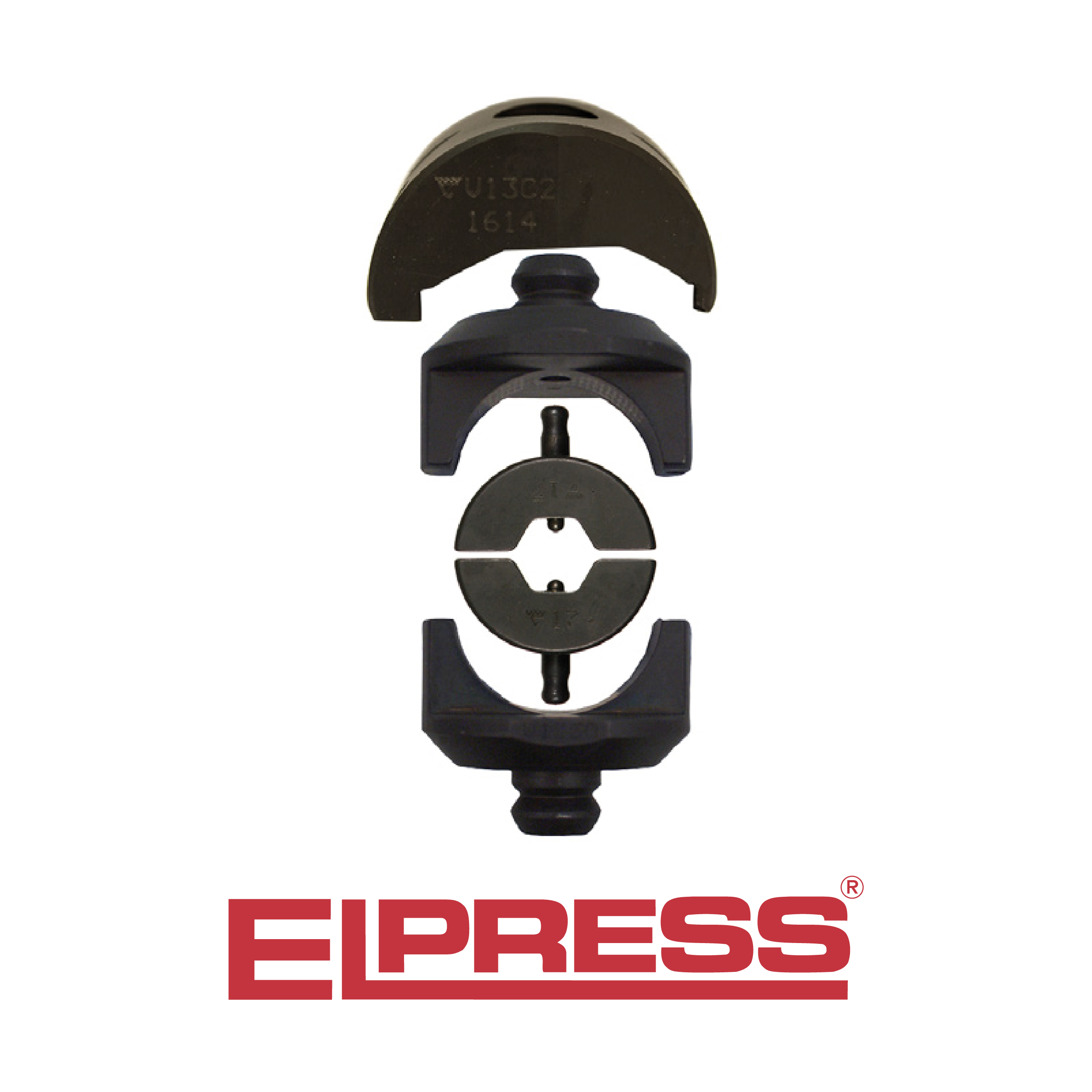

- Image 3: Die holder V1330 + BC6-dies.
- Image 4: One or two crimps.
