Elpress Crimping Tool Systems Explained: Your E-Tech Components Guide
Elpress Crimping Tool Systems are designed as complete solutions, combining Cable Connectors and Crimping Tools that have been tested together to ensure optimal connection results. This system-based approach gives you confidence that, when used correctly, Elpress products deliver safe and reliable connections.
The Elpress Hydraulic Crimp Systems accommodate Elpress Terminals and Connectors ranging from 10 to 1200 mm². These systems are available either as modular Pumps and Crimp Heads, which can be combined as needed, or as fully integrated hand-held tools that incorporate both functions.
A wide range of accessories is available for tasks such as Crimping, Pre-Rounding of Sector-Shaped Conductors, and Cable Cutting. When paired with the corresponding Terminals, these accessories complete the Crimp System. Both Pumps and Hand Crimping Tools (with a few exceptions) feature a fast-feed function, allowing the dies to quickly engage the terminal before the actual crimping begins. Additionally, a full-closure function ensures the crimping process is fully completed for maximum reliability.
Elpress Crimping Tool Systems
The Crimping Tool Overview Chart below presents our range of tools designed to meet various crimping needs. The key differences between them are the Crimping Force each tool delivers and the Crimping Area for which it is suitable. This article provides a clear guide to the Features, Crimping Areas and Geometries supported by the tools and components within the Elpress System range.
Elpress V250 System

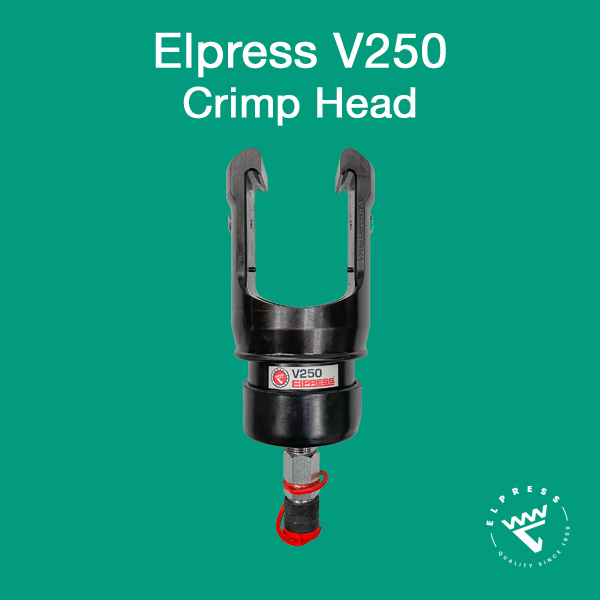

The Elpress V250 System features Crimping Tools suitable for copper terminals ranging from 10 to 800 mm², aluminium terminals from 16 to 630 mm², and C-sleeves from 6 to 300 mm². The system delivers a crimping force of 25 tons and covers a crimping area of 10 to 800 mm².
 |
 |
| CAT. NO. | AL (mm²) |
CU KRF/KSF (mm²) |
C-SLEEVES (mm²) |
AREA (mm²) |
GROSS WEIGHT (kg) | L x W x H (mm) |
CRIMPING GEOMETRY |

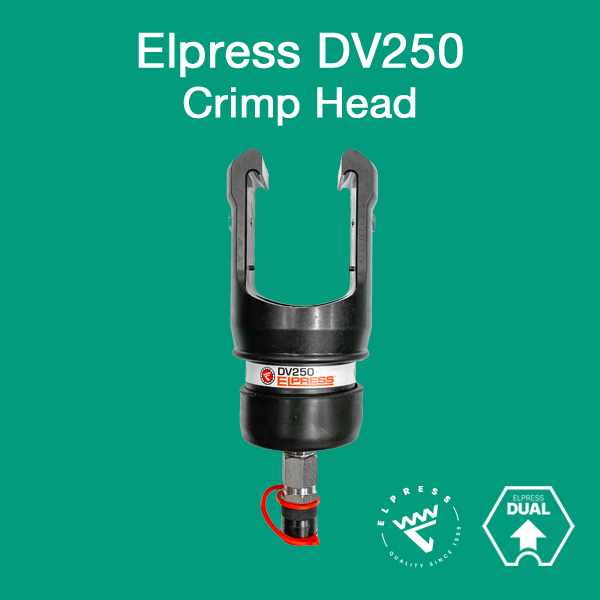

| DV250 | 16-630 | 10-800 | 6-300 | 10-800 | 4,8 | 280 x 111 x 74 | Punch, DUAL, Hexagonal, Oval |
| V250 | 16-630 | 10-800 | 6-300 | 10-800 | 4,68 | 280 x 111 x 74 | Punch, Hexagonal, Oval |
Elpress V600 System
The Elpress V600 System includes Crimping Tools for copper terminals from 10 to 240 mm², aluminium terminals from 16 to 25 mm² (up to 35 mm² solid), and C-sleeves from 6 to 50 mm². It provides a crimping force of 6 tons and covers a crimping area of 10 to 150 mm².
 |
 |
 |
| CAT. NO. | AL (mm²) |
CU KRF/KSF (mm²) |
C-SLEEVES (mm²) |
SOLID AL (mm²) |
AREA (mm²) |
GROSS WEIGHT (kg) |
L x W x H (mm) |
CRIMPING GEOMETRY |

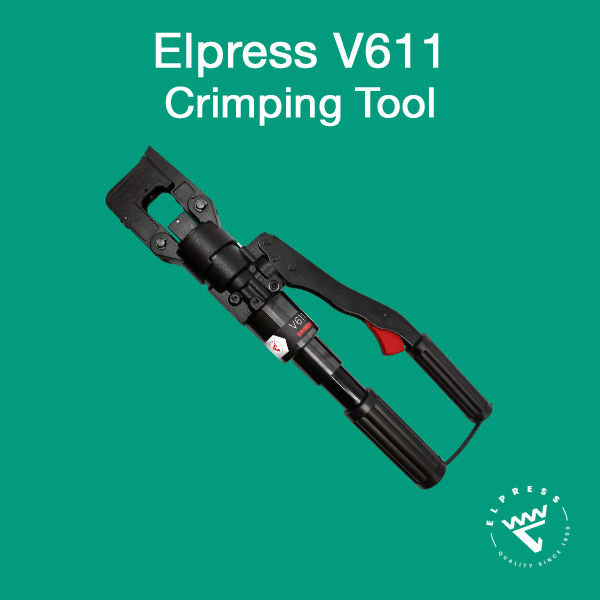

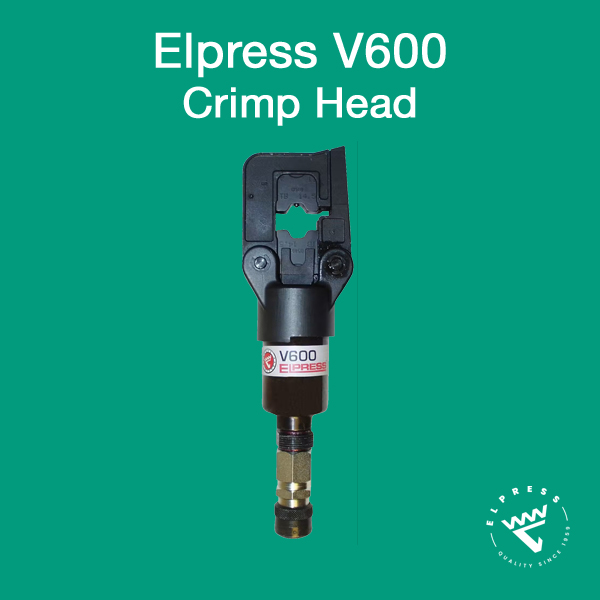

| V600 | 16-25 | 10-240 | 6/6-50/50 | 16-35 | 10-150 | 2,45 | 189 x 74 x 53 | Punch, Hexagonal, Oval |
| V611 | 16-25 | 10-240 | 6/6-50/50 | 16-35 | 10-150 | 2,6 | 425 x 115 x 53 | Punch, Hexagonal, Oval |
| PVX611 | 16-25 | 10-150 | 6/6-50/50 | 16-35 | 10-150 | 5,50 | 414 x 116 x 75 | Punch, Hexagonal, Oval |
| PVX611DB | 16-25 | 10-150 | 6/6-50/50 | 16-35 | 10-150 | 5,85 | 414 x 116 x 75 | Punch, Hexagonal, Oval |

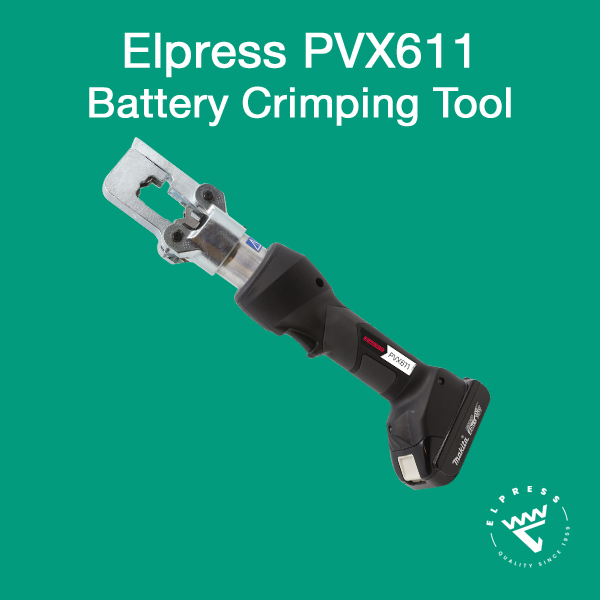

The Elpress PVX611 Battery Crimping Tool (6-240mm²) is the latest battery-powered addition to the V600 System, now featuring an exciting new capability. To meet the demand for a lighter tool suitable for crimping winding conductors, Elpress has developed L-range* Dies specifically for the PVX611.
The PVX611 crimp pistol is 100% reverse-compatible and has been tested and approved for use with both Elpress TB-dies and KB-dies. One of its standout features is a display that provides valuable information about your tool, including the number of crimps performed, battery status, service intervals and more. Designed with a new ergonomic profile, the PVX611 enhances user performance and comfort. The tool comes with a 2-year guarantee for added peace of mind.
*In the Elpress naming convention, the letter L indicates that the die is designed for crimping winding conductors, as well as Class 2 and Class 5 cables in accordance with the IEC 60228 standard.
Elpress V1300 System

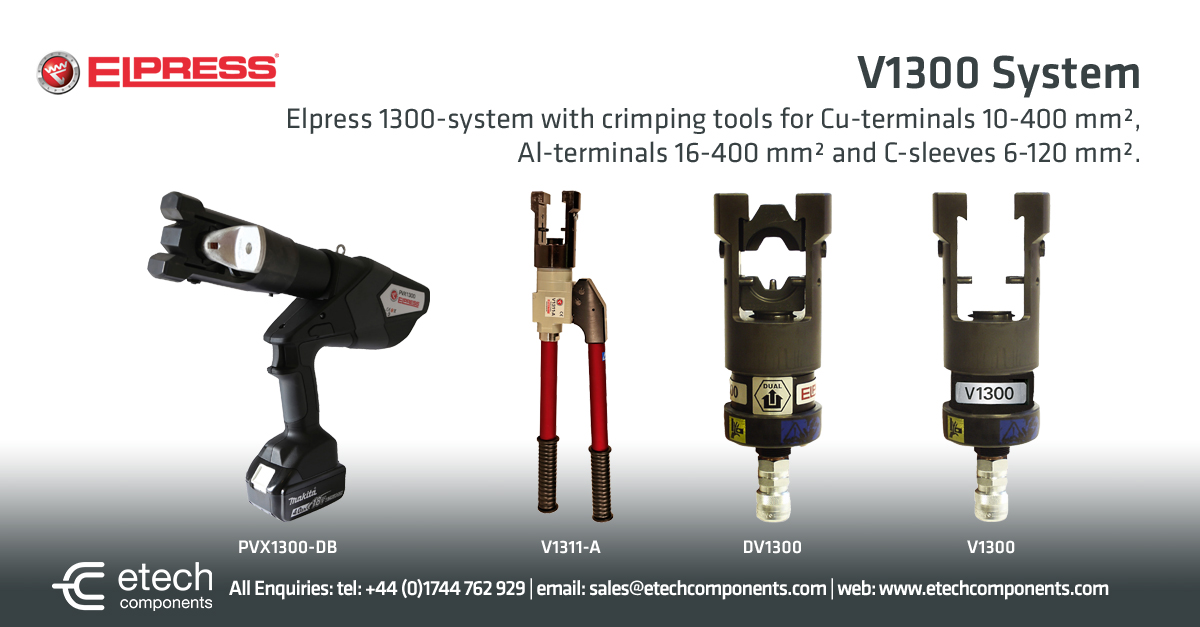

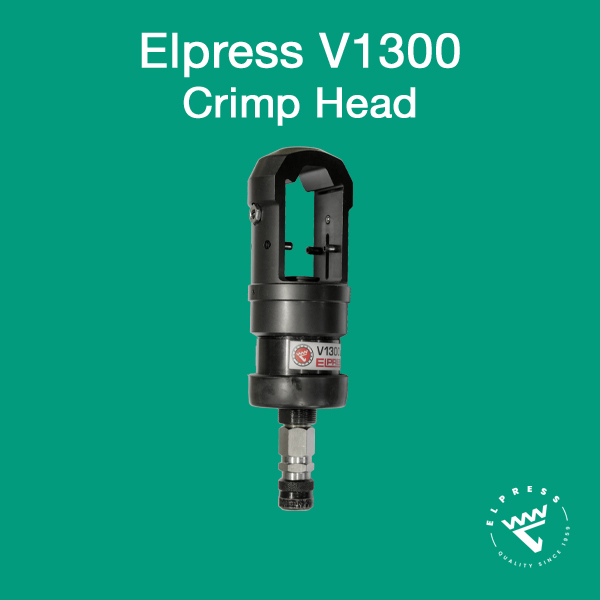

The Elpress V1300 System features Crimping Tools for copper terminals from 10 to 400 mm², aluminium terminals from 16 to 400 mm², and C-sleeves from 6 to 240 mm². It delivers a crimping force of 13 tons and covers a crimping area of 10 to 400 mm².
 |
 |
 |
 |
| CAT. NO. | AL (mm²) |
CU KRF/KSF (mm²) |
C-SLEEVES (mm²) |
SOLID AL (mm²) |
AREA (mm²) |
GROSS WEIGHT (kg) | L x W x H (mm) |
CRIMPING GEOMETRY |
| V1300 | 16-400 | 10-400 | 6-240 | 16-240 | 10-400 | 3,46 | 263 x 88 x 75 | Punch, Hexagonal, Oval |

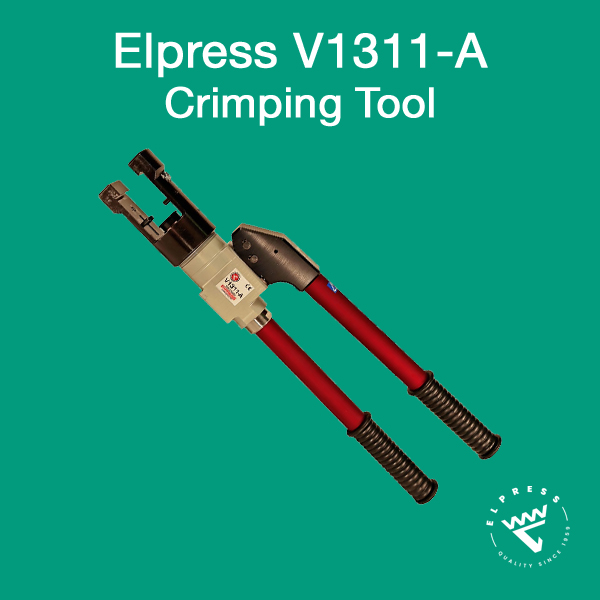

| V1311-A | 16-400 | 10-400 | 6-240 | 16-240 | 10-150 | 4,3 | 588 x 150 x 74 | Punch, Hexagonal, Oval |

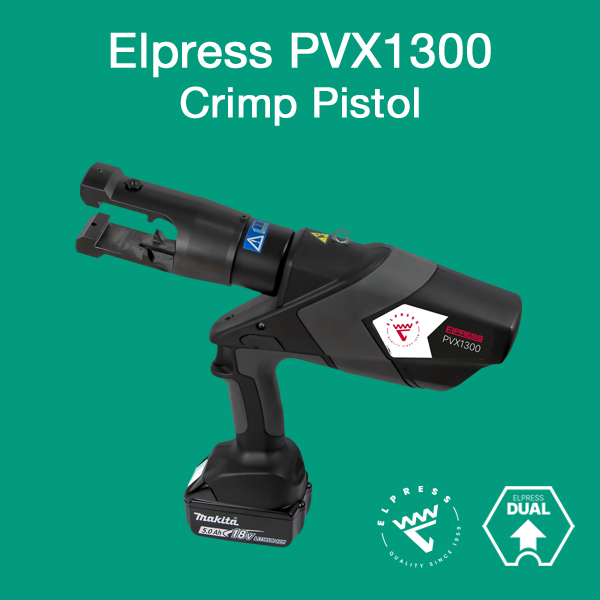

| PVX1300 | 16-400 | 10-400 | 6-240 | 16-240 | 10-400 | 6,7 | 412 x 319 x 75 | Punch, DUAL, Hexagonal, Oval, W |
| PVX1300DB | 16-400 | 10-400 | 6-240 | 16-240 | 10-400 | 7,3 | 412 x 319 x 75 | Punch, DUAL, Hexagonal, Oval, W |
| DV1300 | 16-400 | 10-400 | 25-240 | 16-240 | 10-400 | 3,34 | 265 x 74 x 75 | Punch, DUAL, Hexagonal, Oval |
Elpress V1300C2 System

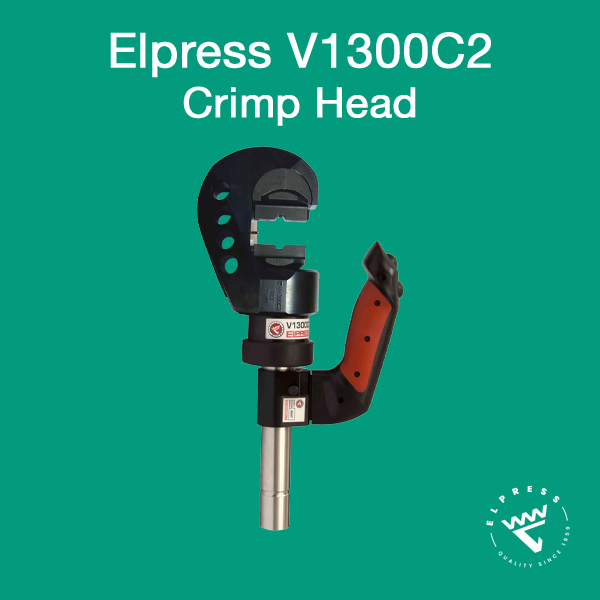

The Elpress V1300C2 System includes Crimping Tools with an open-head design (C-forks) for crimping in narrow spaces. It is suitable for copper terminals from 10 to 400 mm² and C-sleeves from 6 to 240 mm², delivering a crimping force of 13 tons and covering a crimping area of 10 to 400 mm².
 |
 |
 |
| CAT. NO. | CU KRF/KSF (mm²) |
C-SLEEVES (mm²) |
AREA (mm²) |
GROSS WEIGHT (kg) |
L x W x H (mm) |
CRIMPING GEOMETRY |

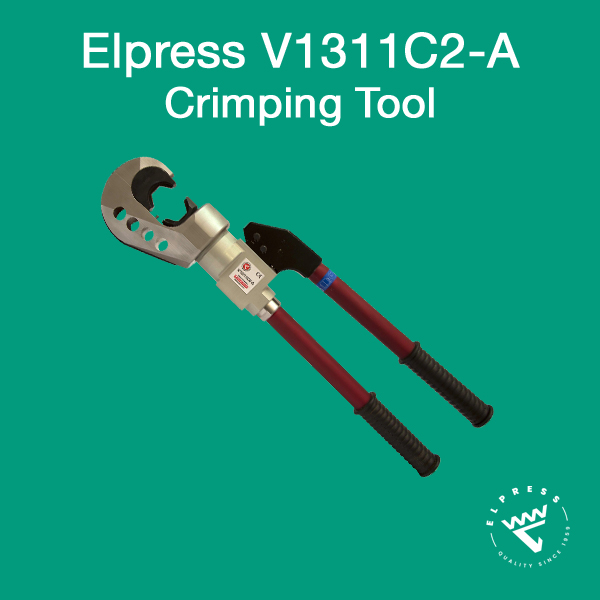

| V1300C2 | 10-400 | 6-120 | 10-400 | 4,6 | 296 x 125 x 75 | Hexagonal, Oval |
| V1311C2-A | 10-400 | 6-120 | 10-400 | 5,7 | 625 x 150 x 76 | Hexagonal, Oval |

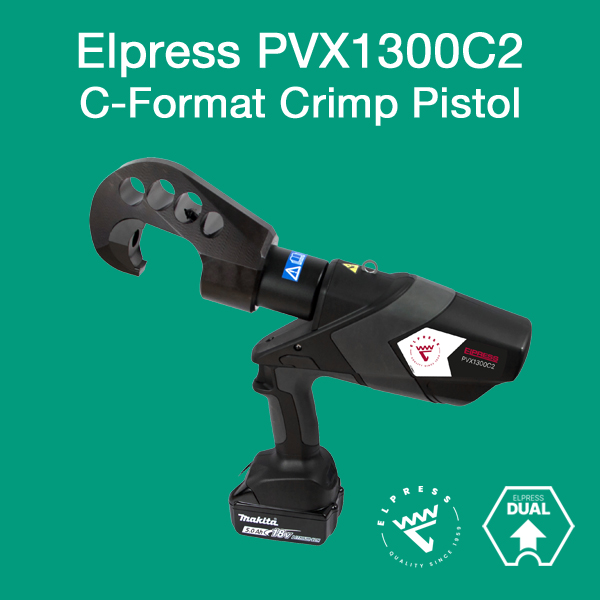

| PVX1300C2 | 10-400 | 6-240 | 10-400 | 7,5 | 399 x 319 x 75 | DUAL, Hexagonal, Oval |
| PVX1300C2DB | 10-400 | 6-240 | 10-400 | 8,1 | 399 x 319 x 75 | DUAL, Hexagonal, Oval |
| DV1300C2 | 10-400 | 25-240 | 10-400 | 4,9 | 297 x 140 x 75 | DUAL, Hexagonal, Oval |
Elpress V1470 System

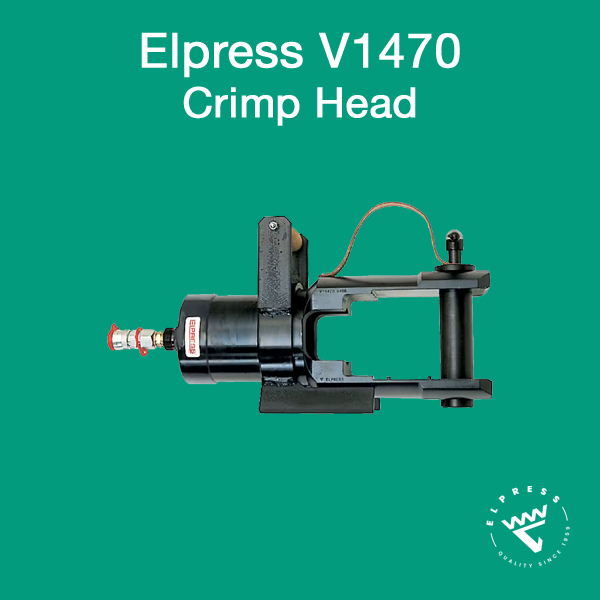

The Elpress V1470 System features the Elpress V1470 Crimping Head for copper terminals from 500 to 1000 mm², aluminium terminals from 800 to 1200 mm², and C-sleeves from 150 to 300 mm². It is used in combination with Foot Pump P4000 or the Battery/ Mains Powered Electro-hydraulic Pump PS710. The system is equipped with an oil-spray safety protection cap and comes supplied in a robust plywood box. It delivers a crimping force of 45 tons (400 kN) and covers a crimping area of 500 to 1200 mm². The system weighs 20,76 kg and measures 510 mm in length and 235 mm in width.
 |
| CAT. NO. | AL (mm²) |
CU KRF/KSF (mm²) |
C-SLEEVES (mm²) |
AREA (mm²) |
GROSS WEIGHT (kg) |
L x W x H (mm) |
CRIMPING GEOMETRY |
| V1470 | 800-1200 | 500-1000 | 150-300 | 500-1200 | 20,76 | 510 x 235 x 103 | Punch, Hexagonal, Oval |
Frequently Asked Questions
What are Elpress Crimping Tool Systems used for?
They are used to create secure electrical connections between cables and terminals using matched Elpress tools, dies and connectors.
What cable sizes can Elpress hydraulic crimping tools handle?
Depending on the system, Elpress tools can crimp conductors ranging from 10 mm² up to 1200 mm².
What is the difference between the V250, V600 and V1300 Elpress Systems?
The main difference is Crimping Force and Cable Capacity, with each system designed for different conductor sizes and applications.
What are Crimping Geometries and which ones do Elpress tools support?
Crimping Geometries determine the electrical performance, strength and reliability of a connection. Elpress tools support several types, including hexagonal, oval, punch, and DUAL crimps, depending on the tool and die used.
What is Elpress DUAL Crimping?
Elpress DUAL Crimping combines hexagonal and indent crimping to create a secure, high-conductivity connection without damaging conductor strands. It provides superior resistance to corrosion, vibration and temperature, making it ideal for flexible copper conductors in the toughest environments.
What features improve reliability when using Elpress crimping tools?
Features like fast-feed dies and a full-closure function help ensure complete crimp cycles for consistent connections.
If you need to crimp larger areas, contact our Technical Sales Team to explore larger tools or bespoke solutions.
