3M™ EE-12-CW1-R-C1-A1-S1 | 12kV Rear Plug-In IEC Separable Connector 630A (25-95mm²)
Product overview
The 3M 12kV 630A Rear Plug-In IEC Separable Connector (7100414008) is a reliable deadfront cable termination for medium-voltage transformers, switchgear and other electrical equipment. Designed for 12kV applications with a 630A current rating, this EE-12-CW1-R-C1-A1-S1 rear connector accommodates cable insulation diameters from 12.5 – 19.5mm and conductor sizes from 25 – 95mm². Each kit includes a mechanical shearbolt lug and range-taking cable adapters for flexible, reliable installation.
Part Number: EE-12-CW1-R-C1-A1-S1 | 3M ID: 7100414008

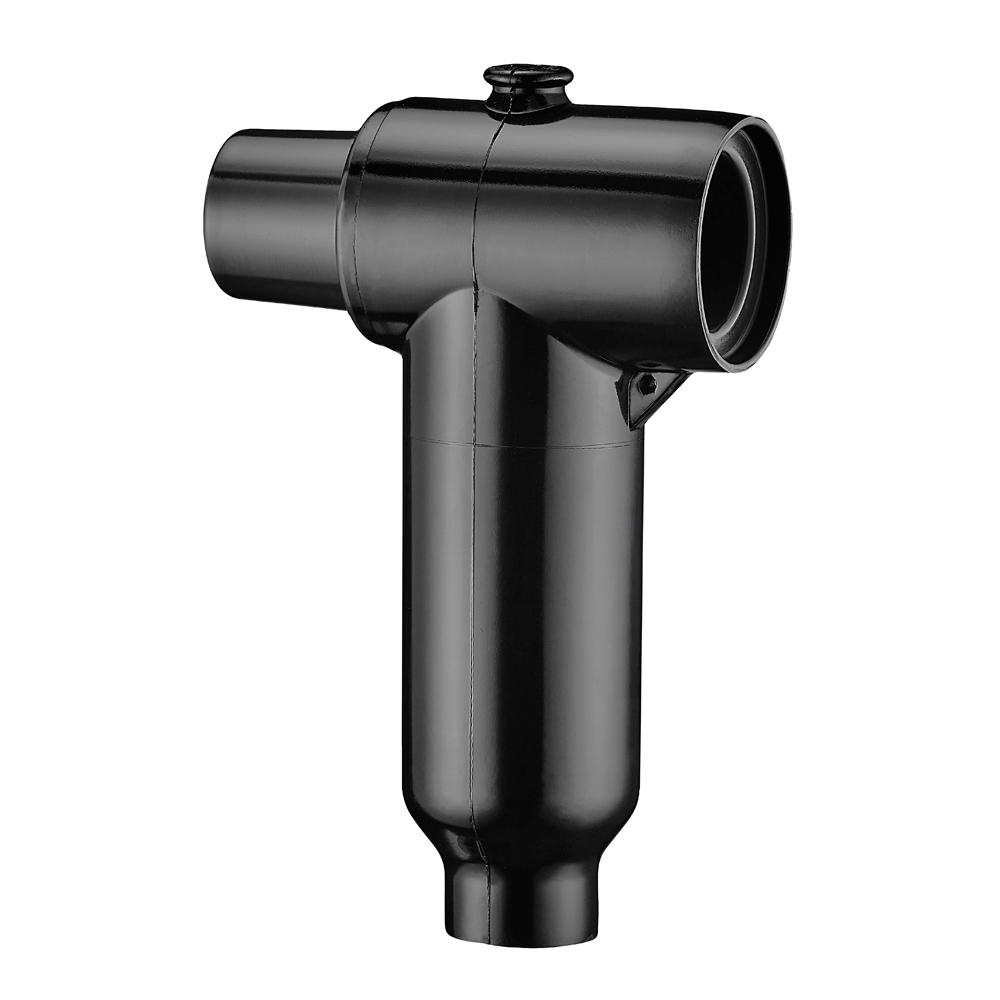

3M™ 12kV Rear Plug-In IEC Separable Connector 630A
The rear T-Plug (T-Shaped) design connects medium-voltage cables to Type C bushings complying with EN 50180 and EN 50181. This makes it suitable for use with compatible transformers, switchgear and other electrical apparatus. Designed for reliable deadfront connections, this 3M 12kV rear connector (630A) meets CENELEC HD 629.1 and IEC 60502-4 requirements and is suitable for compatible indoor and outdoor installations.
Key Features & Benefits
- 12kV, 630A rear plug-in IEC separable connector
- Designed for deadfront connections to Type C bushings
- Suitable for transformers, switchgear and other electrical apparatus
- Complies with EN 50180 and EN 50181
- Accommodates cable insulation diameters from 12.5-19.5mm
- Suitable for conductor sizes from 25-95mm²
- Includes range-taking cable adapters and mechanical shearbolt lug
- Meets CENELEC HD 629.1 and IEC 60502-4 requirements
- Suitable for compatible indoor and outdoor installations
- Suitable for one-conductor cable
- Range-taking kit helps reduce the number of SKUs
3M EE-12-CW1-R-C1-A1-S1
This 3M 12kV rear separable connector provides reliable deadfront cable connections to Type C bushings. Part of 3M’s range of medium-voltage separable connectors, this product provides a practical solution for compatible transformers, switchgear and other electrical equipment. The shearbolt lug and range-taking adapters simplify installation across the supported cable range, helping provide a secure and dependable connection.
For Additional Information on 3M EE-12-CW1-R-C1-A1-S1 | 12kV Rear Plug-In IEC Separable Connector 630A (25-95mm²) (7100414008), please refer to the Technical Data or PDF files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
TYPICAL PROPERTIES |
| APPLICATIONS | Deadfront Termination |
| COMPONENT TYPE | Connector |
| CURRENT | 630A |
| LUG/STEM CONNECTOR INCLUDED IN KIT | Mechanical Lug |
| MAX. VOLTAGE | 12 kV |
| NUMBER OF CONDUCTORS | 1 |
| SUITABLE FOR | One-Conductor Cable |
| VOLTAGE | 12 kV |
DIMENSIONS & CLASSIFICATIONS |
| MAX. INSULATION OUTER DIAMETER (IMPERIAL) | 0.768 in |
| MAX. INSULATION OUTER DIAMETER (METRIC) | 19.5 mm |
| MIN. INSULATION OUTER DIAMETER (IMPERIAL) | 0.492 in |
| MIN. INSULATION OUTER DIAMETER (METRIC) | 12.5 mm |
| HEIGHT | 250 mm |
| LENGTH | 158 mm |
| WIDTH | 68 mm |
Additional Information
Please note that supplementary earthing kits are available, including the part numbers 94-PAE 610-1 AL-CT, 94-PAE 620-1 AL-CT, and 94-PAE 621-1 CW-ALF.
