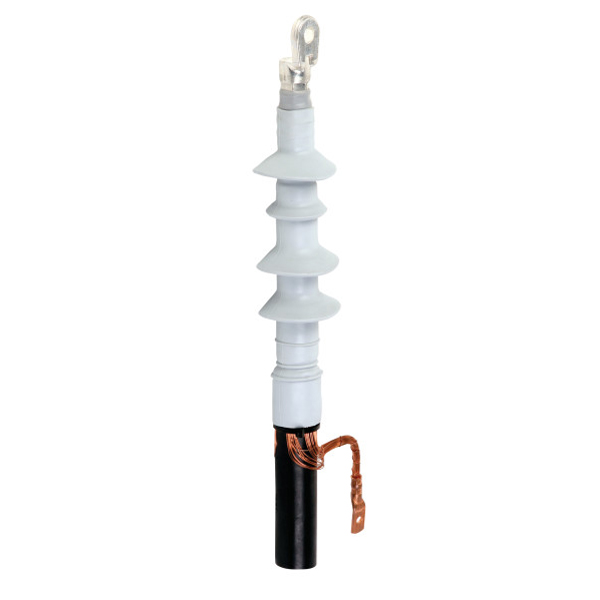

3M™ QTII 95-EB Cold Shrink Single-Core MV Cable Termination Kit (52kV)
Product overview
3M™ QTII 95-EB Cold Shrink Single-Core MV Cable Termination Kit (52kV)
The 3M QTII 95-EB Cold Shrink MV Termination Kit is a high-reliability solution for single-core indoor and outdoor terminations, rated up to 52kV. It’s designed for copper wire-screened polymeric cables. This 3M Medium Voltage Termination Kit installs easily with a tool-free cold shrink system and meets all IEC 60840 requirements. Each QTII Termination includes a one-piece silicone body with integrated skirts and stress control. This ensures strong environmental sealing and reliable electrical performance — without heat or flame.
Part Numbers: 95-EB62-2, 95-EB63-2, 95-EB622-2, 95-EB632-2, 95-EB631-2.
Key Features & Benefits
- Designed for medium-voltage applications up to 52kV (U_max)
- Compatible with a wide range of copper wire-screened polymeric cable sizes
- A design that enables fast, tool-free installation
- Integrated silicone skirts and stress control for effective electrical relief
- Includes silicone tape for sealing the lug and cable interface
- Solderless earth connection via constant force springs
- No special tools, heating or flame required
- Performance tested and certified to IEC 60840
- Each 3M Cold Shrink MV kit is clearly marked for traceability and cable compatibility
- Compact and lightweight for ease of handling and on-site use
3M QTII – Reliable, Field-Proven MV Cable Termination
The 3M QTII 95-EB Cold Shrink Termination Kit is a compact, high-performance alternative to heat-shrink solutions. It provides consistent stress control, sealing and reliability for medium-voltage applications. This 3M MV Termination package is designed for fast, safe and easy installation with no heat or soldering tools required.
Ideal for polymeric insulated cables in substations, industrial plants, infrastructure and utility networks, this 52kV Cold Shrink Termination offers strong protection, excellent sealing, and full IEC compliance. It’s a trusted choice across the energy and renewables sector.
3M QTII 95-EB – Order Information
| Kit Reference | Application Range Guide |
| 95-EB62-2 (95EB622) | 70 – 400 mm2 |
| 95-EB63-2 (95EB632) | 400 – 1000 mm2 |
| 95-EB622-2 (95EB6222) | 70 – 400 mm2 |
| 95-EB632-2 (95EB6322) | 400 – 1000 mm2 |
| 95-EB631-2 (95EB6312) | 400 – 1000 mm2 |
For Additional Information on the 3M QTII 95-EB Cold Shrink Single-Core MV Cable Termination Kit (52kV) (95-EB62-2, 95-EB63-2, 95-EB622-2, 95-EB632-2, 95-EB631-2), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Kit Reference | Cable Type | Application Range Guide (mm²) | Diameter over Primary Insulation (mm) | Max. Lug Diameter Accepted (mm) |
| 95-EB62-2 | Copper Wire Screen | 70 - 400 | 33.0 - 53.0 | 53 |
| 95-EB63-2 | Copper Wire Screen | 400 - 1000 | 46.0 - 66.0 | 66 |
| 95-EB622-2 | Copper Tape Screen | 70 - 400 | 33.0 - 53.0 | 53 |
| 95-EB632-2 | Copper Tape Screen | 400 - 1000 | 46.0 - 66.0 | 66 |
| 95-EB631-2 | Copper Wire Screen, JCN Cable | 400 - 1000 | 46.0 - 66.0 | 66 |
