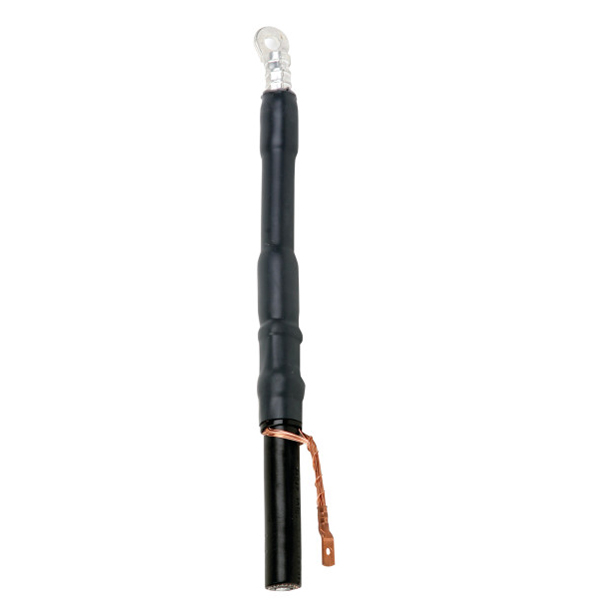

3M™ QTIII 93-EP Cold Shrink Single-Core MV Cable Termination Kit (24kV)
Product overview
3M™ QTIII 93-EP Cold Shrink Single-Core MV Cable Termination Kit (24kV)
The 3M QTIII 93-EP Cold Shrink Single-Core MV Cable Termination Kit is a trusted solution for polymeric insulated Single-Core cable terminations rated up to 24kV. Designed for indoor and outdoor applications, this Cold Shrink Single-Core system supports cable cross sections from 25 mm² to 400 mm². Each 3M QTIII Single-Core kit includes a factory-tested, one-piece silicone termination body with integrated stress control tube, moisture sealing and environmental protection. Ideal for confined or hazardous areas, this 24kV Cold Shrink Termination requires no heat or special tools to install.
Part Numbers: 93-EP610-1, 93-EP620-1, 93-EP630-1, 93-EP640-1, 93-EP611-1, 93-EP621-1, 93-EP631-1, 93-EP641-1, 93-EP612-1, 93-EP622-1, 93-EP632-1, 93-EP642-1.
Key Features & Benefits
- Rated for Single-Core MV Terminations up to 24kV (U_max)
- Compatible with a wide range of cable sizes: 25–400 mm²
- One-piece silicone QTIII Single-Core Termination body with stress control and sealing mastic
- Fast and easy installation at temperatures ranging from -20°C to +50°C
- Cold Shrink design allows quick, tool-free installation without open flames
- Integrated stress control tube and sealing mastic for superior electrical and environmental protection
- Solderless earth connection with constant force springs
- Fully tested to IEC 60502-4 and CENELEC HD 629.1 performance standards
- Ideal for indoor substations, industrial switchgear and renewable infrastructure
- Supplied as a complete 3M Single-Core MV Termination Kit
QTIII 93-EP – Simplified Cold Shrink Single-Core Termination
The 3M QTIII 93-EP Single-Core Cold Shrink Termination Kit offers a fast, compact and safe alternative to heat-shrink systems for 24kV applications. Built with a pre-expanded silicone body and integrated stress control, 3M Cold Shrink technology simplifies field installation while ensuring long-term electrical reliability.
Every 93-EP Cold Shrink Termination provides consistent sealing, electrical stress control and moisture resistance. With compliance to IEC and CENELEC standards, 3M 93-EP delivers proven performance for utilities, infrastructure and high-density power environments.
3M 93-EP – Order Information
| Kit Reference | Application Range Guide |
| 93-EP610-1 (93EP6101) | 25 – 120 mm2 |
| 93-EP620-1 (93EP6201) | 95 – 240 mm2 |
| 93-EP630-1 (93EP6301) | 185 – 400 mm2 |
| 93-EP640-1 (93EP6401) | 500 – 630 mm2 |
| 93-EP611-1 (93EP6111) | 25 – 120 mm2 |
| 93-EP621-1 (93EP6211) | 95 – 240 mm2 |
| 93-EP631-1 (93EP6311) | 185 – 400 mm2 |
| 93-EP641-1 (93EP6411) | 500 – 630 mm2 |
| 93-EP612-1 (93EP6121) | 25 – 120 mm2 |
| 93-EP622-1 (93EP6221) | 95 – 240 mm2 |
| 93-EP632-1 (93EP6321) | 185 – 400 mm2 |
| 93-EP642-1 (93EP6421) | 500 – 630 mm2 |
For Additional Information on the 3M QTIII 93-EP Cold Shrink Single-Core MV Cable Termination Kit (24kV), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Kit Reference | Cable Type | Application Range Guide (mm²) | Diameter over Primary Insulation (mm) | Max. Lug Diameter Accepted (mm) |
| 93-EP610-1 | Copper Wire Screen | 25 - 120 | 16.3 - 27.4 | 27 |
| 93-EP620-1 | Copper Wire Screen | 95 - 240 | 20.5 - 38.9 | 39 |
| 93-EP630-1 | Copper Wire Screen | 185 - 400 | 26.7 - 45.7 | 46 |
| 93-EP640-1 | Copper Wire Screen | 500 - 630 | 38.9 - 58.9 | 59 |
| 93-EP611-1 | Copper Tape or Braided Screen | 25 - 120 | 16.3 - 27.4 | 27 |
| 93-EP621-1 | Copper Tape or Braided Screen | 95 - 240 | 20.5 - 38.9 | 39 |
| 93-EP631-1 | Copper Tape or Braided Screen | 185 - 400 | 26.7 - 45.7 | 46 |
| 93-EP641-1 | Copper Tape or Braided Screen | 500 - 630 | 38.9 - 58.9 | 59 |
| 93-EP612-1 | Copper Wire Screen / Alu Laminate | 25 - 120 | 16.3 - 27.4 | 27 |
| 93-EP622-1 | Copper Wire Screen / Alu Laminate | 95 - 240 | 20.5 - 38.9 | 39 |
| 93-EP632-1 | Copper Wire Screen / Alu Laminate | 185 - 400 | 26.7 - 45.7 | 46 |
| 93-EP642-1 | Copper Wire Screen / Alu Laminate | 500 - 630 | 38.9 - 58.9 | 59 |
