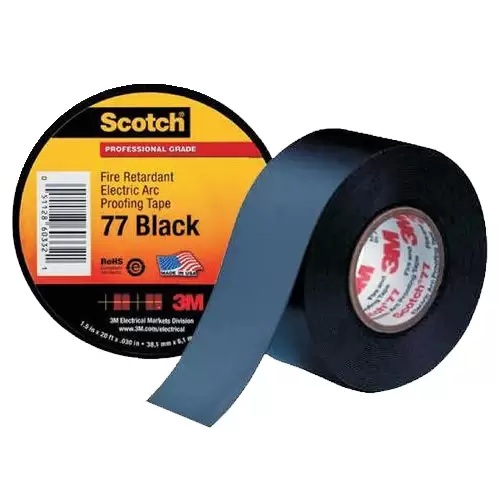

3M Scotch Fire-Retardant Electric Arc Proofing Tape 77 - 7100004537, 7100004701

Product overview

3M 77 (7100004537, 7100004701) is a professional-grade Fire-Retardant Arc Proofing Tape. It’s designed to protect electrical cables from fire and arc hazards in demanding industrial environments. Made from a highly flexible intumescent elastomer, 3M Tape 77 expands under extreme heat. This forms a thick, insulating char barrier between adjacent cables and surrounding flames. This Scotch Tape 77 offers arc-proofing performance up to 600V and can be applied with ease across a wide range of cable types, especially in confined or irregular spaces.
Part Numbers: 7100004537, 7100004701.

3M Scotch Fire-Retardant Electric Arc Proofing Tape 77

Engineered for electrical maintenance, construction, utility, and renewable sectors, Scotch 77 provides an essential layer of passive fire protection for vulnerable cable installations. Its conformable, non-adhesive design ensures fast, wrinkle-free wrapping without the need for additional tools or adhesives. Once exposed to fire, this Fire-Retardant Arc Proofing Tape self-extinguishes and forms a tough char, shielding cables and extending critical system uptime. Whether you’re safeguarding against arc propagation or protecting bundled circuits in tight enclosures, 3M 77 delivers proven, fire-rated performance in high-risk environments.

Key Features & Benefits

  • Fire-retardant tape expands to form a protective char in arc or flame exposure
  • Conformable elastomer backing wraps neatly around irregular shapes
  • Helps protect adjacent cables from flame and arc failures
  • UL Listed and RoHS 2011/65/EU compliant
  • Self-extinguishing, arc-proofing performance up to 600V
  • Flexible and removable for easy cable inspection
  • Dielectric strength: 19.7 kV/mm
  • Professional-grade 30 mil (0.76 mm) thick intumescent construction
  • Available in 38.1 mm (1.5 in) and 76.2 mm (3 in) widths, 6 m (20 ft) roll
  • Ideal for construction, utilities, industrial maintenance, and renewable energy
  • Suitable for use in wind farms, substations, solar arrays, and mining operations

3M Scotch 77 – Passive Fire Protection for Critical Cables

From commercial construction to high-voltage industrial sites, 3M 77 offers reliable arc proofing and flame resistance exactly where it matters. By expanding into a dense thermal barrier on exposure, this 3M Duct Tape 77 prevents cascading faults across cable networks, protecting both equipment and personnel. Whether you’re retrofitting arc containment in a utility cabinet or reinforcing cable trays in mining operations, Tape 77 ensures fast, efficient installation without compromising on safety or durability.

When passive fire protection is non-negotiable, choose this product for peace of mind in high-risk zones.


For Additional Information on 3M Scotch Fire-Retardant Electric Arc Proofing Tape 77 (7100004537, 7100004701), please consult the Technical Data Table or PDF File below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

TYPICAL PROPERTIES

Adhesive Type Application/Industry Applications Backing (Carrier) Material Backing (Carrier) Thickness (Metric) Brands Dielectric Strength Elongation at Break Features
Non-Adhesive Commercial Construction, Industrial Construction, Maintenance and Repair Operations, Mining, Utility, Wind Power, Residential Construction, Solar Electrical Maintenance, Insulation Intumescent elastomer 0.76 mm Scotch® 19.7 kV/mm 150.0%, 850.0% UV-resistant, Self-Extinguishing

TYPICAL PROPERTIES - CONTINUED

Min Operating Temp (℃) Product Colour Rolls per Carton Rolls per Case Shelf Life Smallest Saleable Unit Tape Grade Total Tape Thickness without Liner (Imperial) Total Tape Thickness without Liner (Metric)
0℃ Black 1 10 5 Year Roll Professional 30 mil 0.76 mm

PHYSICAL PROPERTIES

Elongation (% at Break) - 23°C Elongation (% at Break) - -12°C Elongation (% at Break) - -18°C Breaking Strength Flame Resistant (UL 94 [Self-extinguishing])  Oxygen Index ASTM D2863 Flame Test (Consolidated Edison EO 5343 Sec 3.2.6)
150% 130% 90% 8,3 MPa V-O 26 - 28% Pass

Data are not for specifications. Values are typical and should not be considered minimum or maximum. Properties measured at room temperature ~23°C unless otherwise stated.


ELECTRICAL AND THERMAL PROPERTIES

Dielectric Strength Thermal Conductivity (23°C) ASTM C518
>10 kV 0.15 BTU-ft (0,25 W/mk) ft2 -hr-°F

Data are not for specifications. Values are typical and should not be considered minimum or maximum. Properties measured at room temperature ~23°C unless otherwise stated.


DIMENSIONS AND CLASSIFICATIONS

Overall Length (ft) Overall Length (m) Overall Width (in) Overall Width (mm)
20 6 1.5, 3 38.1, 76.2
