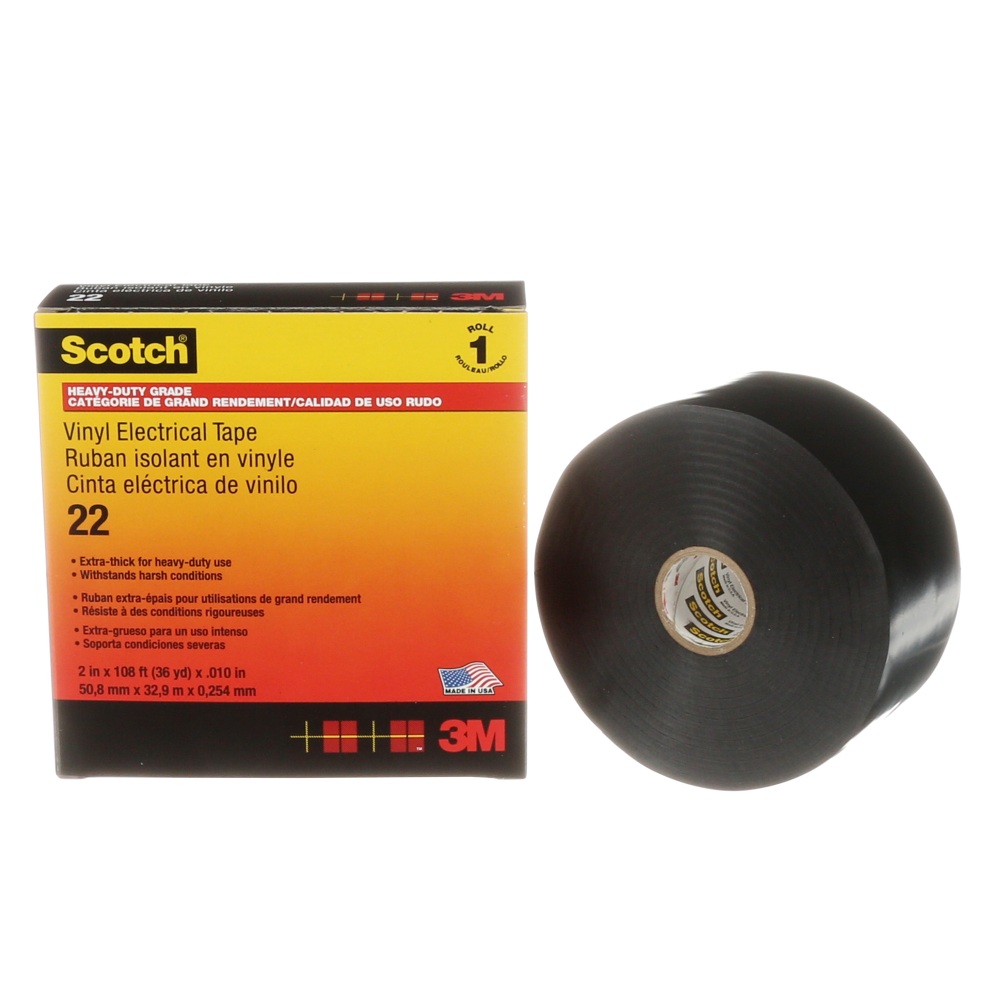

3M™ Scotch Vinyl Electrical Tape 22
Product overview
3M™ Scotch Vinyl Electrical Tape 22
3M™ Scotch Vinyl Electrical Tape 22 is a thick, heavy-duty PVC tape designed for demanding electrical insulation and maintenance tasks. Built for long-term durability and protection, 3M Scotch Tape 22 offers superior mechanical strength and abrasion resistance in high-stress environments. This conformable tape performs exceptionally in both high heat (up to 80 °C) and cold weather applications (down to -10 °C), making it ideal for professional use in varied conditions. Scotch 22 resists UV exposure, moisture, alkalis, acids and corrosion, making it a top-tier choice for field technicians, electricians and engineers working on robust electrical applications.
Part Numbers: 7000057495, 7000042539, 7000031346, 7000031345, 7000031344.
Key Features & Benefits
- Heavy-duty vinyl tape with 0.25 mm (10 mil) thickness
- Excellent abrasion resistance and mechanical strength
- Withstands operating temperatures from -10 °C to 80 °C (14 °F to 176 °F)
- Cold-weather flexible and highly conformable
- Resists UV, moisture, alkalis, acids and corrosion
- Professional-grade insulation for up to 600 V
- UL Listed, CSA Certified, VDE Approved, RoHS Compliant
- Ideal for cable sheath repair, harnessing, sealing, and bus bar insulation
- Available widths: 12.7 mm, 19 mm, 25 mm, 38 mm, 50 mm
- Supplied in 32.9 m (36 yd) rolls for optimal jobsite performance
3M Scotch 22 – High-Strength Protection for Demanding Environments
Engineered for maximum protection, Scotch Vinyl Electrical Tape 22 provides thick, rugged insulation where it matters most. Whether you’re sealing connectors, repairing cable sheaths or insulating high-stress bus bars, Vinyl Tape 22 delivers the toughness and weather resistance required for long-term performance. Its high dielectric strength and resistance to mechanical wear make it the go-to solution for professionals in the field.
Scotch Tape 22 is a proven performer in extreme conditions — offering durability, reliability and peace of mind when working on mission-critical installations. When only the best will do, Electrical Tape 22 is the trusted choice for industrial and utility-grade maintenance and repair.
For Additional Information on 3M Scotch Vinyl Electrical Tape 22 (7000057495, 7000042539, 7000031346, 7000031345, 7000031344), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
TYPICAL PROPERTIES |
| Adhesive Type | Applications | Backing (Carrier) Material | Brands | Elongation at Break | Flame Retardant | Insulation Resistance | Max Operating Temp (℃) | Max Operating Temp (°F) |
| Rubber | Electrical Maintenance Insulation | PVC | Scotch® | 200.0% | Yes | > 10^6 megohms | 80℃ | 176°F |
TYPICAL PROPERTIES - CONTINUED |
| Min Operating Temp (℃) | Product Colour | Shelf Life | Smallest Saleable Unit | Tape Grade | Tensile Strength | Total Tape Thickness without Liner (Imperial) | Total Tape Thickness without Liner (Metric) | Voltage Rating |
| -10℃ | Black | 5 Year | Each, Roll | Professional | 35 N/10 mm | 10 mil | 0.25 mm | 600 V |
DIMENSIONS AND CLASSIFICATIONS |
| Overall Length (yd, in) | Overall Length (m) | Overall Width (in) | Overall Width (mm) |
| 36, 36 | 32.9 | 0.5, 0.75, 1, 1.5, 2 | 12.7, 19, 25, 38, 50 |
