3M™ Scotch Vinyl Electrical Tape 33
Product overview

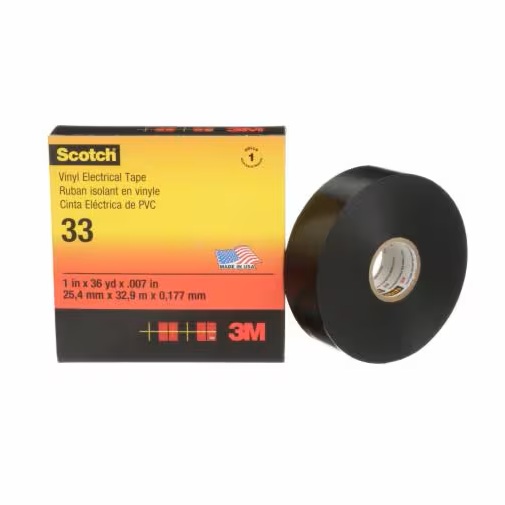

3M™ Scotch Vinyl Electrical Tape 33
3M™ Scotch Vinyl Electrical Tape 33 is a thick, premium-grade PVC insulating tape. It’s designed for electrical insulation of wires and cables rated up to 600 V. This flame-retardant tape withstands temperatures ranging from 0 to 80 °C (32 to 176 °F). This makes it suitable for a variety of indoor and outdoor, low- and high-voltage applications. 3M Scotch Tape 33 provides excellent electrical and mechanical protection thanks to its combination of a pressure-sensitive rubber-resin adhesive and elastic PVC backing. Its high resistance to UV rays, abrasion, moisture, alkalis, solvents and acids makes it a trusted choice for cable insulation, moisture protection and cable jacket repair.
Part Numbers: 7000057500, 7000057498, 7000057497, 7000057496.
Key Features & Benefits
- Rated for electrical insulation of wires and cables up to 600 V
- Flame-retardant PVC backing ensures safety and durability
- Excellent resistance to UV rays, abrasion, moisture, alkalis, solvents and acids
- High dielectric strength: 1150 V/mil
- Rubber-resin adhesive provides reliable adhesion and mechanical protection
- Withstands operating temperatures from 0 °C to 80 °C (32 °F to 176 °F) continuous
- Available in multiple widths: 12.7 mm (0.5 in), 19 mm (0.75 in), 25 mm (1 in), and 50 mm (2 in)
- Supplied in 33 m (36 yd) rolls for convenient site application
- UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
3M Scotch Vinyl Tape 33 – Dependable Insulation and Protection
Ideal for above and below grade applications, Scotch Vinyl Electrical Tape 33 delivers robust electrical insulation and mechanical protection across a wide temperature range. Its elastic PVC backing combined with a strong adhesive ensures moisture-tight protection and durability in harsh environments. This includes exposure to UV light and chemicals. Whether you are insulating cables, repairing jackets or protecting splices, trust Scotch 33 for professional-grade performance that meets demanding electrical standards.
For reliable, flame-retardant electrical tape that performs consistently, choose Scotch Vinyl Electrical Tape 33 and safeguard your installations with confidence.
For Additional Information on 3M Scotch Vinyl Electrical Tape 33 (7000057500, 7000057498, 7000057497, 7000057496), please consult the Technical Data Table below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
TYPICAL PROPERTIES |
| Adhesive Type | Applications | Backing (Carrier) Material | Brands | Dielectric Strength | Elongation at Break | Flame Retardant | Insulation Resistance | Max Operating Temp (℃) | Max Operating Temp (°F) |
| Rubber | Insulation | PVC | Scotch® | 1150 V/mil | 200.0%, 250.0% | Yes | > 10^6 megohms | 105℃ | 220°F |
TYPICAL PROPERTIES - CONTINUED |
| Min Operating Temp (℃) | Product Colour | Shelf Life | Smallest Saleable Unit | Tape Grade | Tensile Strength (Metric) | Total Tape Thickness without Liner (Imperial) | Total Tape Thickness without Liner (Metric) | Voltage Rating |
| 0℃ | Black | 5 Year | Roll | Professional | 30 N/10mm | 7 mil | 0.18 mm | 600 V |
DIMENSIONS AND CLASSIFICATIONS |
| Overall Length (yd) | Overall Length (m) | Overall Width (in) | Overall Width (mm) |
| 36 | 32.9, 33 | 0.5, 0.75, 1, 2 | 12.7, 19, 25, 50 |
