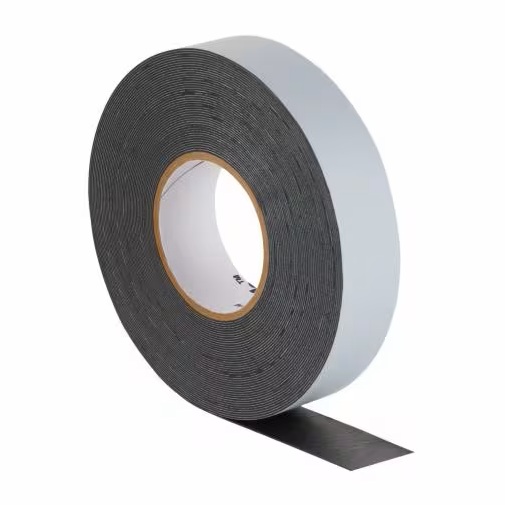

3M™ Temflex Rubber Splicing Tape 2151
Product overview
3M™ Temflex Rubber Splicing Tape 2151
3M Temflex Rubber Splicing Tape 2151 is a highly conformable, self-fusing EPR (Ethylene Propylene Rubber) based low-voltage jointing tape. Designed for low-voltage electrical insulating and moisture sealing applications. 3M Tape 2151 is a self-fusing tape with high insulation properties and excellent conformability. Elongation allows for easy application, while this tape self-bonds quickly without blistering. Please note, this product is suitable for applications up to 69 kV.
Part Number: 7000007285.
Key Features & Benefits
- Rated for up to 69 kV high-voltage cable splicing and insulation
- Self-fusing tape has high insulation properties
- Excellent conformability
- Good sealing properties
- Ethylene propylene rubber backing offers excellent conformability and stretch
- Excellent dielectric strength: 600 V/mil
- Vulcanising, Self-sticking
- Withstands operating temperatures up to 80 °C (176 °F) continuous
- Available width: 19 mm (0.75 in)
- Supplied in 9.15 m (30 ft) rolls for convenient site use
3M Temflex 2151 – Top-Tier Insulation & Conformability
From robust electrical insulation to reliable moisture sealing in low-voltage applications, 3M Temflex Rubber Splicing Tape 2151 delivers exceptional conformability and performance, ensuring long-lasting protection. With its self-fusing EPR backing and fast self-bonding without blistering, this tape provides high dielectric strength and elongation, making it ideal for professionals working on critical electrical jointing up to 69 kV. Whether you’re insulating a splice or sealing against moisture in challenging environments, trust Temflex 2151 to meet the demands of your electrical systems.
When superior insulation, secure sealing, and easy application matter, choose this product to safeguard your electrical connections with confidence and peace of mind.
For Additional Information on 3M Temflex Rubber Splicing Tape 2151 (7000007285), please consult the Technical Data Table below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
TYPICAL PROPERTIES |
| Adhesive Type | Applications | Backing (Carrier) Material | Backing (Carrier) Thickness | Brands | Dielectric Strength | Elongation at Break | Features | Max Operating Temp (℃) | Min Operating Temp (℃) | Shelf Life | Total Tape Thickness without Liner | Voltage Rating |
| Rubber | Insulation | Rubber | 0.51 mm (20 mil) | Temflex™ | 600 V/mil | 700.0% | Vulcanising, Self-sticking | 80℃ (176℉) | 0℃ (32℉) | 3 Year | 0.51 mm (20 mil) | 69 kV |
DIMENSIONS AND CLASSIFICATIONS |
| Overall Length (ft) | Overall Length (m) | Overall Width (in) | Overall Width (mm) |
| 30 ft | 9.15 m | 0.75 in | 19 mm |
