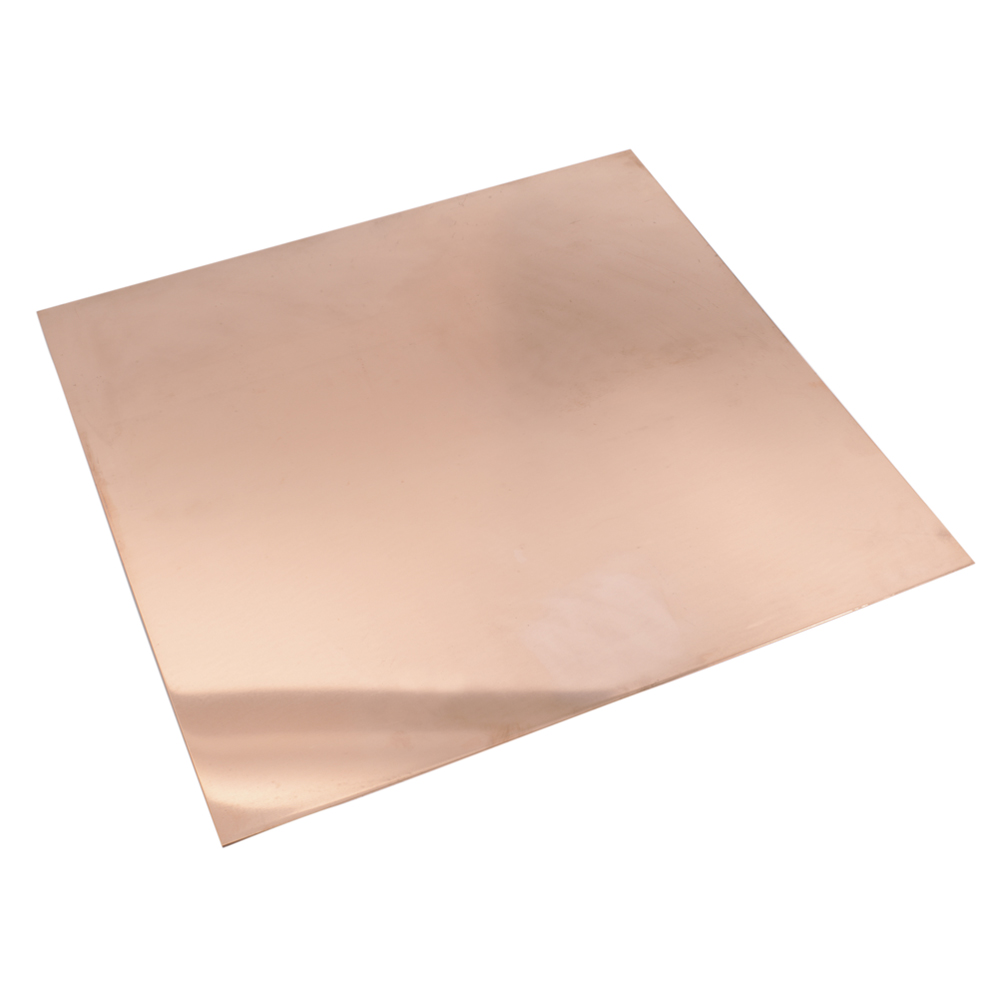

AN Wallis Solid Copper Earth Plates
Product overview
AN Wallis Solid Copper Earth Plates are a durable, reliable earthing solution for sites where traditional earth rods aren’t practical. Manufactured from high-quality copper to BS EN 1652:1998, these plates deliver consistent, low-resistance grounding for buildings, equipment and lightning protection systems. Designed for use with Low-Resistance Earthing Compound or Bentonite, AN Wallis Earth Plates maintain strong performance even in tough soil conditions.
Wallis EMP Part Numbers: EMP 601, EMP 603, EMP 901, EMP 903, EMP 10005005.
AN Wallis Solid Copper Earth Plates – Long-Lasting Earthing Solutions
Ideal for electrical contractors, lightning protection installers and site engineers, AN Wallis Copper Earth Plates are made to provide long-term performance in diverse soil types. With their solid copper construction, they offer low impedance grounding and excellent corrosion resistance. Available in a range of sizes and thicknesses, these plates are suitable for both new installations and retrofitting projects.
Key Features & Benefits
- High-quality copper to BS EN 1652:1998 – durable and corrosion-resistant
- Variety of sizes and thicknesses: 600×600 mm, 900×900 mm, 1000×500 mm for flexibility on site
- Suitable for use with Low-Resistance Earthing Compound or Bentonite
- Ideal where earth rods fail to achieve adequate earth resistance
- Extended service life
- Compatible with standard earthing systems and installation practices
- Supports BS EN 62305-compliant earthing systems
- Unit weights from 4.8 kg to 21.6 kg: Provides options for handling and installation
- Surface area from 0.73 m² to 1.63 m²
Trust AN Wallis for Top-Quality Earthing Solutions
AN Wallis Solid Copper Earth Plates provide secure, low-resistance grounding for every installation. Whether installed in new builds, substations or retrofit projects, these copper plates combine durability with consistent electrical performance, making them a trusted choice for professionals across the UK.
For Additional Information on AN Wallis Solid Copper Earth Plates (EMP 601, EMP 603, EMP 901, EMP 903, EMP 10005005), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part Number | L x W (mm) | H (mm) | Surface Area (mm²) | Unit Weight (kg) | Pack Quantity |
| EMP 601 | 600 x 600 | 1.5 | 0.73 | 4.80 | 1 |
| EMP 603 | 600 x 600 | 3.0 | 0.73 | 9.60 | 1 |
| EMP 901 | 900 x 900 | 1.5 | 1.63 | 10.80 | 1 |
| EMP 903 | 900 x 900 | 3.0 | 1.63 | 21.60 | 1 |
| EMP 10005005 | 1000 x 500 | 5.0 | 1.02 | - | 1 |
