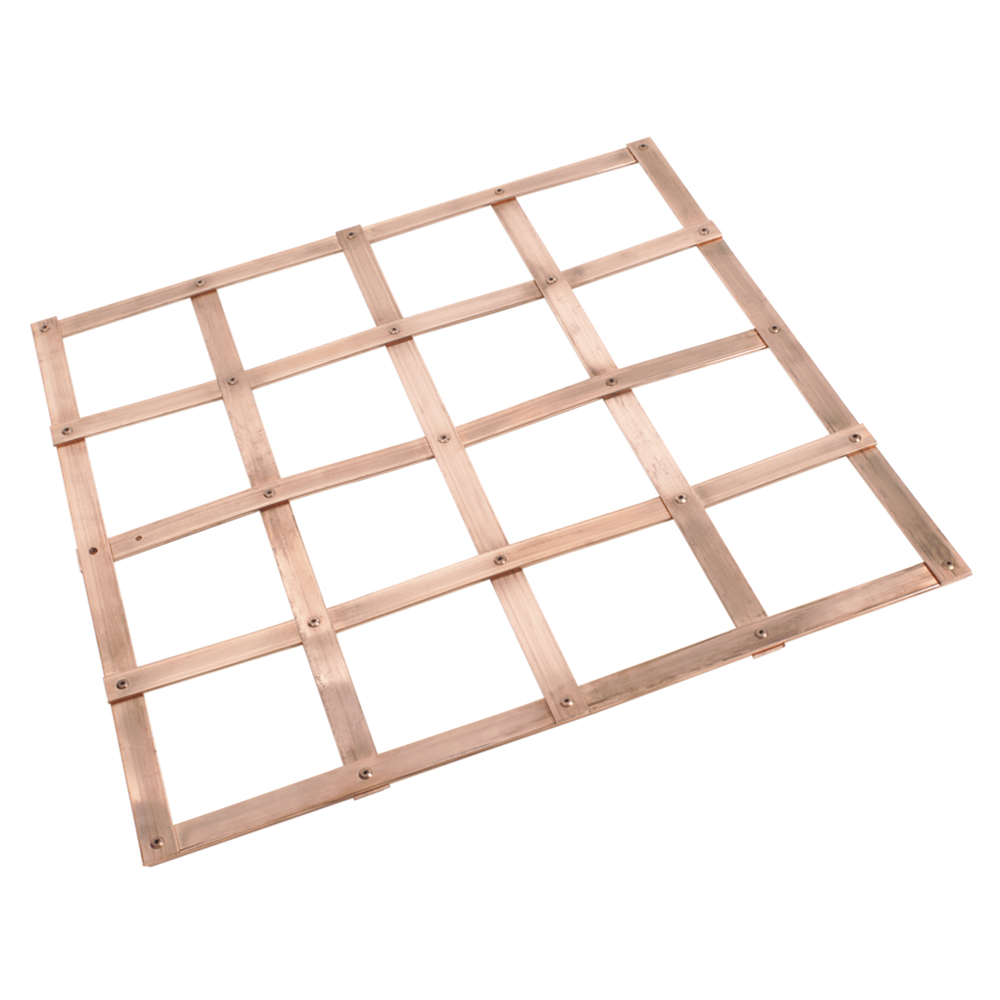

AN Wallis Solid Copper Lattice Mats
Product overview
AN Wallis Solid Copper Lattice Mats are a cost-effective, dependable earthing option for sites where solid plates aren’t practical. Crafted from high-conductivity copper to BS EN 13601 (formerly BS 1432), these lattice mats provide consistent, low-resistance grounding for buildings, equipment, substations and telecom towers. Built for potential grading and step/touch voltage mitigation, AN Wallis Lattice Mats perform reliably even in high fault current conditions.
Wallis EML Part Numbers: EML 603, EML 903, EML 903 SPC.
AN Wallis Solid Copper Lattice Mats – Efficient Earthing Solution
Ideal for electrical contractors, lightning protection installers and site engineers, AN Wallis Lattice Mats provide long-term performance in diverse soil and site conditions. With their solid copper construction in a lattice design, they offer low impedance grounding, excellent corrosion resistance and cost efficiency. Available in multiple sizes and grid configurations, these mats are suitable for both new installations and retrofitting projects.
Key Features & Benefits
- Manufactured from copper to BS EN 13601 – durable and corrosion-resistant
- Economical alternative to solid copper plates
- Variety of sizes and grids: 600×600 mm (EML 603), 900×900 mm (EML 903 / EML903 SPC)
- Ideal for potential grading and reducing touch/step voltage risks
- Extended service life
- Compatible with standard earthing systems and installation practices
- Supports BS EN 62305-compliant earthing and lightning protection systems
- Unit weights from 3.91 kg to 7.20 kg: Provides options for handling and installation
- Surface area from 0.31 m² to 0.65 m²
AN Wallis – Earthing Solutions You Can Depend On
With AN Wallis Solid Cu Lattice Mats, you get secure, low-resistance grounding across all installations. Whether used for substations, telecommunication towers or retrofit projects, these copper mats combine durability with consistent electrical performance, making them a trusted choice for professionals across the UK.
For Additional Information on AN Wallis Solid Copper Lattice Mats (EML603, EML903, EML903SPC), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part Number | L x W (mm) | H (mm) | Surface Area (mm²) | Grid | Unit Weight (kg) | Pack Quantity |
| EML 603 | 600 x 600 | 3.0 | 0.31 | 5 Bar | 3.91 | 1 |
| EML 903 | 900 x 900 | 3.0 | 0.65 | 6 Bar | 7.20 | 1 |
| EML 903 SPC | 900 x 900 | 3.0 | 0.46 | 6 Bar | 6.10 | 1 |
