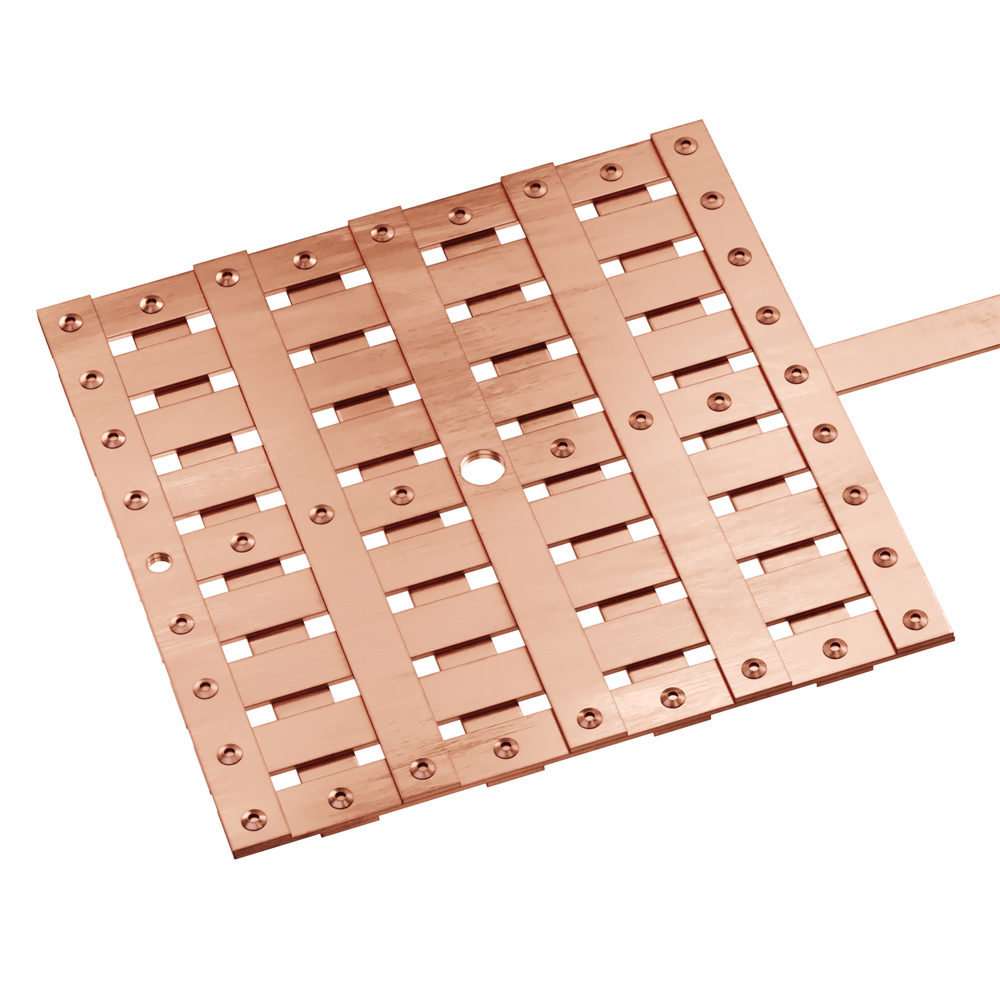

AN Wallis Solid Copper Lattice Mats with Copper Tail (EML303/900)

Product overview

AN Wallis Copper Tail Lattice Mats are an economical earthing solution where solid copper plates aren’t practical. Made from high-conductivity copper to BS EN 13601 (formerly BS 1432), these mats provide reliable, low-resistance grounding for civil works, street installations and lightning protection systems. The 900 mm copper tail easily connects to existing earthing networks and fits over pre-installed rods.
Part Number: EML303/900.

AN Wallis Copper Tail Lattice Mats – Cost-Effective, Reliable Earthing

Ideal for electrical contractors, civil engineers and site installers, AN Wallis Solid Copper Tail Mats deliver dependable performance in a compact form. With their solid copper lattice construction, they offer low impedance grounding and excellent corrosion resistance. Their reduced size and central hole make them ideal for street works or retrofitting over existing earth rods.

Key Features & Benefits

  • High-conductivity copper to BS EN 13601 – durable and corrosion-resistant
  • Compact size with 300×300 mm footprint and 9-bar grid for versatile installation
  • 900 mm copper tail included – simplifies connection to earthing systems
  • Ideal where earth rods are already installed or where space is restricted
  • Solid copper lattice construction ensures extended service life
  • Supports low-resistance grounding and potential grading in high step/touch risk areas
  • Compatible with standard earthing systems and installation practices
  • Unit weight: 3.90 kg – easy to handle and install
  • Surface area: 0.18 m²

AN Wallis – Reliable Earthing Solutions Built to Last

With AN Wallis Solid Copper Tail Mats, you get secure, low-resistance grounding for civil and electrical projects. Whether installed in street works, substations or retrofit projects, these copper mats combine cost-efficiency with consistent electrical performance, making them a trusted choice for professionals across the UK.


For Additional Information on AN Wallis Solid Copper Lattice Mats with Copper Tail (EML 303/900), please consult the Technical Data Table or PDF File below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Part Number L x W (mm) H (mm) Surface Area (mm²) Grid Unit Weight (kg) Pack Quantity
EML303/900 300 x 300 3.0 0.18 9 Bar 3.90 1
