Dutchclamp Quad 25-36 Four Way Cable Cleats
Product overview

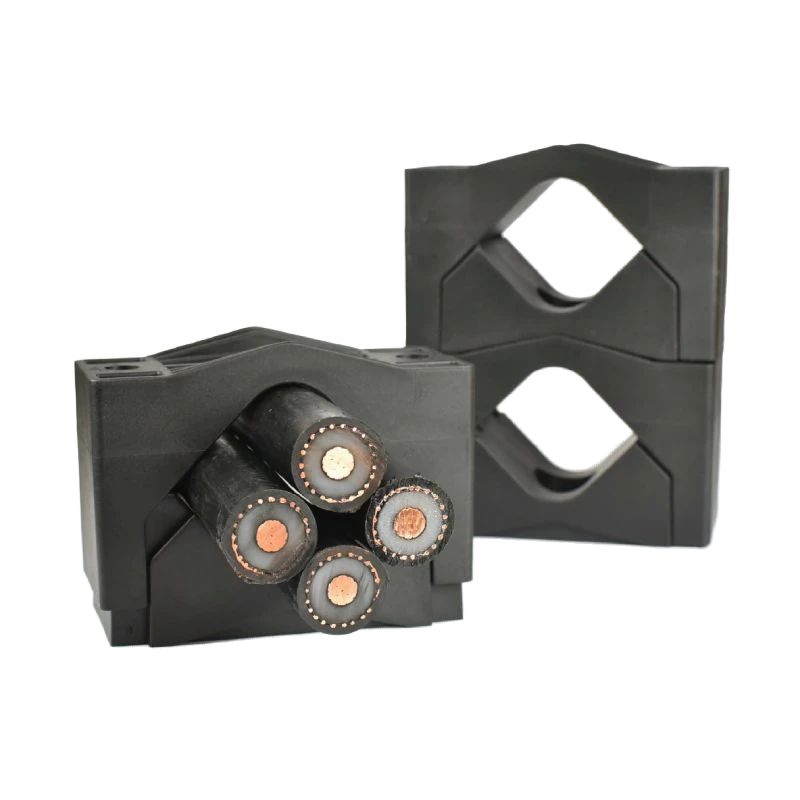

Dutchclamp Quad 25-36 Four Way Cable Cleats (Clamps) securely fasten four single- or multi-conductor cables with an outer diameter range of 25–36mm. Designed for use across low, medium and high voltage applications, the 25-36 Quad Cleat delivers reliable performance where strength, safety and compliance are critical.
Dutchclamp Quad 25-36 Features & Benefits
- Manufactured from high-strength glass fibre-reinforced polyamide (halogen-free and self-extinguishing)
- Suitable for 4 single- or multi-conductor cables (25–36mm diameter)
- Dutchclamp Quad 25-36 is fully tested according to IEC 61914
- This 25-36 Cable Clamp withstands extreme short-circuit forces.
- Excellent UV resistance (tested to 700+ hours simulated solar exposure)
- High impact resistance (tested at -60°C with a 5kg load drop)
- Proven tensile strength at elevated temperatures (tested up to 120°C)
- Flame retardant (no ignition, dripping or glowing embers under test conditions)
- Suitable for indoor and outdoor installations
- Ideal for LV, MV and HV applications
- Provides secure and space-efficient quad cable management
- Precision design ensures reliable cable restraint and consistent spacing
- Coloured black
- Stackable design for flexible installation configurations
About Dutchclamp
Dutchclamp has been designing and manufacturing IEC 61914 cable clamps and blocks for low, medium and high-voltage installations since 1982. Developed in collaboration with leading energy companies, Dutchclamp products are used in over 60 countries worldwide and are renowned for their precision fit, short-circuit-proof performance and reliability.
Made from glass fibre-reinforced polyamide, the material is halogen-free, self-extinguishing and exceptionally robust, with proven resistance to UV, impact, flames and extreme temperatures. All Dutchclamp cable clamps and cleats undergo rigorous short-circuit, tensile, mechanical and flame testing, ensuring safe and dependable performance for critical electrical infrastructure.
For Additional Information on Dutchclamp Quad 25-36 Four Way Cable Cleats / Clamps, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part No | Cable Diameter | A | B | C | D | E | F | G | H | N* |
| Quad 25-36 | 25-36 mm | 140 mm | 64 mm | 110 mm | 13 mm | 82 mm | 10 mm | 55 mm | 20 mm | 17000 |
*Mechanical short-circuit strength in Newtons
