Hafren KMRN-S A2 Stainless Steel Kinmar ® Removable Nuts

Product overview

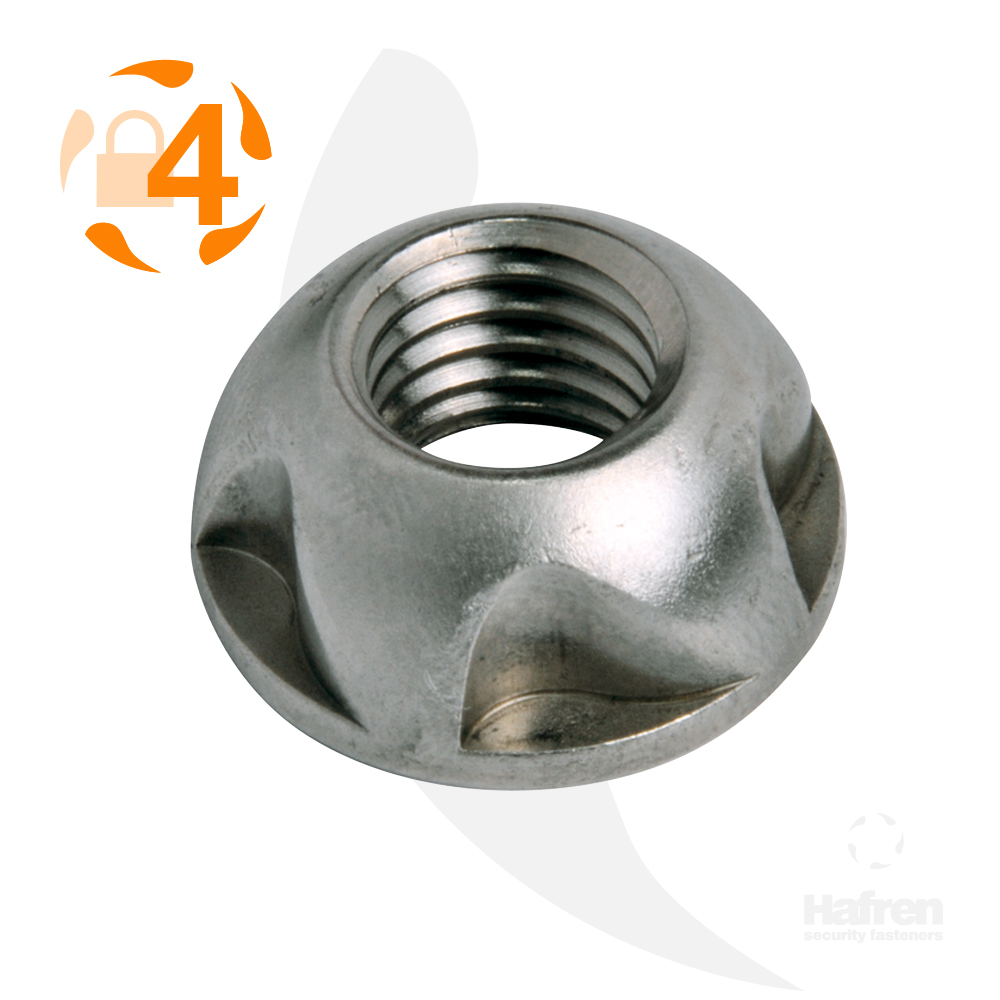

Hafren KMRN-S A2 Stainless Steel Kinmar ^® Removable Nuts

Hafren KMRN-S A2 Stainless Steel Kinmar ^® Removable Nuts are premium high-security two-way nuts designed for both installation and removal using a matching driver socket. This innovative Hafren KMRN-S design offers outstanding resistance to tampering and attack, combining strength, reusability, and an attractive smooth finish. Ideal for a wide range of applications, these Stainless Steel Nuts deliver long-lasting corrosion resistance and a professional appearance.

Also stocked in: Case Hardened Steel Zinc Plated (CR-3) and Geomet ^®
Kinmar ^® Removable drive is also available in bolt form M8 x 25mm / M8 x 40mm
Other materials and finishes available to order, subject to minimum order quantities

Part Numbers: KMRN05-S, KMRN06-S, KMRN08-S, KMRN10-S, KMRN12-S.

Hafren KMRN-S A2 – Features

Material: A2 (304cu) Stainless Steel

Heat Treatment: None

Finish: Self Colour

Part Numbers & Driver Sizes

Size	Nut Part No	Driver Part No
M5	KMRN05-S	KM05R
M6	KMRN06-S	KM06R
M8	KMRN08-S	KM08R
M10	KMRN10-S	KM10R
M12	KMRN12-S	KM12R

Hafren Security Fasteners

Hafren Fasteners manufacture and supply security & tamper resistant fasteners; special headed screws, nuts & bolts. Their solutions are either permanent, or removable only by using a matching driver tool. They design and supply a wide range of security fasteners including bespoke made to measure security fasteners. If they don’t have what you need they’ll make it just the way you want.

Security: The need to safeguard against theft and vandalism is increasingly an essential part of many design specifications.

Safety: Complying with stringent Health & Safety Law, their fasteners keep the public safe.

Aesthetics: Security fasteners are not only secure and vandal-resistant, but aesthetically pleasing to the eye complementing their surrounding environment

For Additional Information on Hafren KMRN-S A2 Stainless Steel Kinmar ^® Removable Nuts, please consult the Technical Data Table or PDF Files below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Part Number	Size	Driver Part Number	Width (A)	Height (B)	Box Quantity
KMRN05-S	M5	KM05R	12.1 mm	5.6 mm	100
KMRN06-S	M6	KM06R	12.1 mm	5.6 mm	100
KMRN08-S	M8	KM08R	16.1 mm	7.3 mm	100
KMRN10-S	M10	KM10R	20.1 mm	9.2 mm	100
KMRN12-S	M12	KM12R	24.2 mm	10.6 mm	100

Part Number

Size

Driver Part Number

Width (A)

Height (B)

Box Quantity

KMRN05-S

KM05R

12.1 mm

5.6 mm

100

KMRN06-S

KM06R

12.1 mm

5.6 mm

100

KMRN08-S

KM08R

16.1 mm

7.3 mm

100

KMRN10-S

M10

KM10R

20.1 mm

9.2 mm

100

KMRN12-S

M12

KM12R

24.2 mm

10.6 mm

100
