Product overview

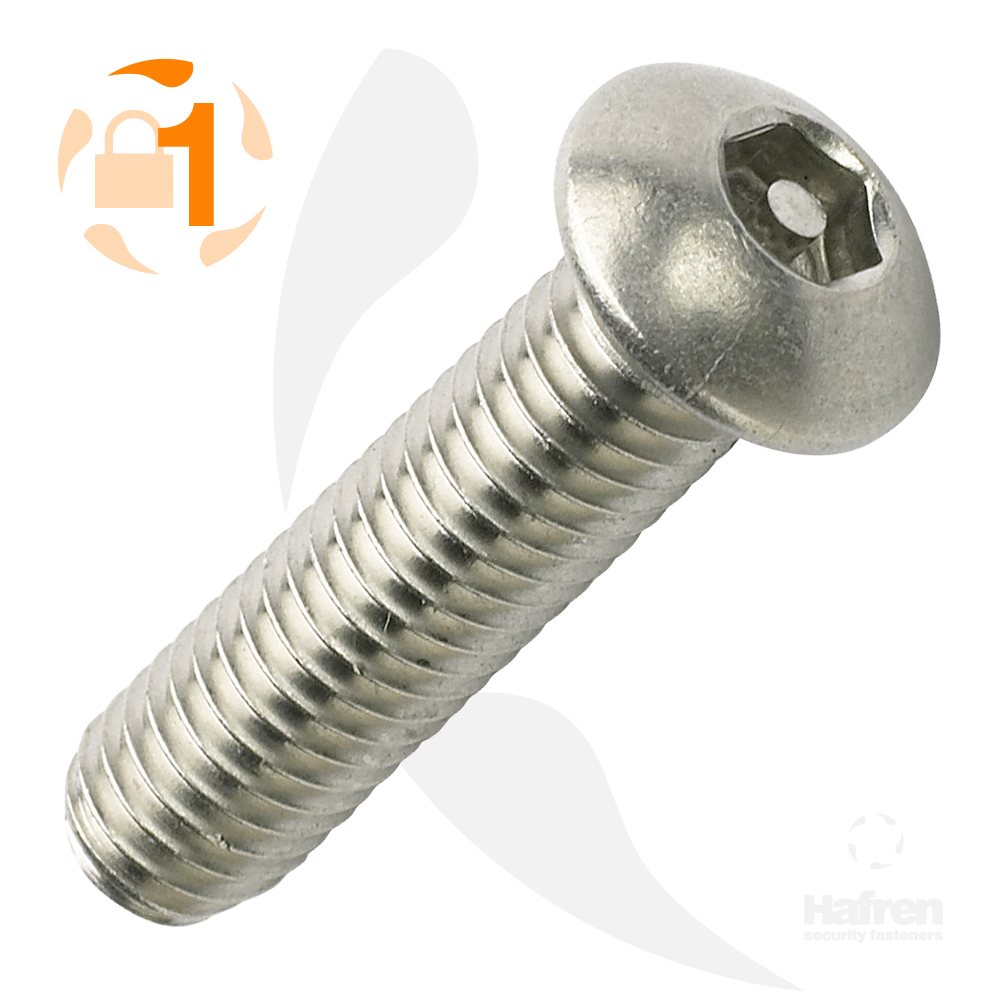

Hafren PHBM Pin Hex Button Head Metric Machine Screws

Hafren PHBM Pin Hex Button Head Metric Machine Screws are premium quality A2 Stainless Steel screws with a patented pin hex drive. This advanced Hafren PHBM design ensures secure fastening, preventing removal with standard hex tools, and providing exceptional resistance to tampering. Ideal for medium torque applications, these Button Head Machine Screws offer a professional finish and long-lasting performance in both commercial and industrial settings.

  • Also stocked: AB Self Tapping and Metric Machine Screws (A2 Stainless Steel)
  • Other materials and finishes available to order, subject to minimum order quantities

Part Numbers: PHBM0306-M, PHBM0308-M, PHBM0310-M, PHBM0312-M, PHBM0316-M, PHBM0320-M, PHBM0406-M, PHBM0408-M, PHBM0410-M, PHBM0412-M, PHBM0416-M, PHBM0420-M, PHBM0425-M, PHBM0430-M, PHBM0440-M, PHBM0508-M, PHBM0510-M, PHBM0512-M, PHBM0516-M, PHBM0520-M, PHBM0525-M, PHBM0530-M, PHBM0540-M, PHBM0550-M, PHBM0560-M, PHBM0610-M, PHBM0612-M, PHBM0616-M, PHBM0620-M, PHBM0625-M, PHBM0630-M, PHBM0640-M, PHBM0650-M, PHBM0660-M, PHBM0812-M, PHBM0816-M, PHBM0820-M, PHBM0825-M, PHBM0830-M, PHBM0835-M, PHBM0840-M, PHBM0850-M, PHBM0860-M, PHBM1016-M, PHBM1020-M, PHBM1025-M, PHBM1030-M, PHBM1040-M, PHBM1050-M, PHBM1060-M, PHBM10100-M, PHBM1220, PHBM1225, PHBM1230, PHBM1235, PHBM1240, PHBM1250, PHBM1260, PHBM1280, PHBM12100, PHBM12120.

Features

Material: A2 Stainless Steel

Heat Treatment: None

Finish: Passivated

Hafren Security Fasteners

Hafren Fasteners manufacture and supply security & tamper resistant fasteners; special headed screws, nuts & bolts. Their solutions are either permanent, or removable only by using a matching driver tool. They design and supply a wide range of security fasteners including bespoke made to measure security fasteners. If they don’t have what you need they’ll make it just the way you want.

Security: The need to safeguard against theft and vandalism is increasingly an essential part of many design specifications.

Safety: Complying with stringent Health & Safety Law, their fasteners keep the public safe.

Aesthetics: Security fasteners are not only secure and vandal-resistant, but aesthetically pleasing to the eye complementing their surrounding environment

For Additional Information on Hafren PHBM Pin Hex Button Head Metric Machine Screws, please consult the Technical Data Table or PDF Files below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Part Number Size Driver Part Number Length (L) Box Quantity
PHBM0306-M M3 HM2 6mm 100
PHBM0308-M M3 HM2 8mm 100
PHBM0310-M M3 HM2 10mm 100
PHBM0312-M M3 HM2 12mm 100
PHBM0316-M M3 HM2 16mm 100
PHBM0320-M M3 HM2 20mm 100
PHBM0406-M M4 HM2.5 6mm 100
PHBM0408-M M4 HM2.5 8mm 100
PHBM0410-M M4 HM2.5 10mm 100
PHBM0412-M M4 HM2.5 12mm 100
PHBM0416-M M4 HM2.5 16mm 100
PHBM0420-M M4 HM2.5 20mm 100
PHBM0425-M M4 HM2.5 25mm 100
PHBM0430-M M4 HM2.5 30mm 100
PHBM0440-M M4 HM2.5 40mm 100
PHBM0508-M M5 HM3 8mm 100
PHBM0510-M M5 HM3 10mm 100
PHBM0512-M M5 HM3 12mm 100
PHBM0516-M M5 HM3 16mm 100
PHBM0520-M M5 HM3 20mm 100
PHBM0525-M M5 HM3 25mm 100
PHBM0530-M M5 HM3 30mm 100
PHBM0540-M M5 HM3 40mm 100
PHBM0550-M M5 HM3 50mm 100
PHBM0560-M M5 HM3 60mm 100
PHBM0610-M M6 HM4 10mm 100
PHBM0612-M M6 HM4 12mm 100
PHBM0616-M M6 HM4 16mm 100
PHBM0620-M M6 HM4 20mm 100
PHBM0625-M M6 HM4 25mm 100
PHBM0630-M M6 HM4 30mm 100
PHBM0640-M M6 HM4 40mm 100
PHBM0650-M M6 HM4 50mm 100
PHBM0660-M M6 HM4 60mm 100
PHBM0812-M M8 HM5 12mm 100
PHBM0816-M M8 HM5 16mm 100
PHBM0820-M M8 HM5 20mm 100
PHBM0825-M M8 HM5 25mm 100
PHBM0830-M M8 HM5 30mm 100
PHBM0835-M M8 HM5 35mm 100
PHBM0840-M M8 HM5 40mm 100
PHBM0850-M M8 HM5 50mm 100
PHBM0860-M M8 HM5 60mm 100
PHBM1016-M M10 HM6 16mm 100
PHBM1020-M M10 HM6 20mm 100
PHBM1025-M M10 HM6 25mm 100
PHBM1030-M M10 HM6 30mm 100
PHBM1040-M M10 HM6 40mm 100
PHBM1050-M M10 HM6 50mm 100
PHBM1060-M M10 HM6 60mm 50
PHBM10100-M M10 HM6 100mm 50
PHBM1220 M12 HM8 20mm 50
PHBM1225 M12 HM8 25mm 50
PHBM1230 M12 HM8 30mm 50
PHBM1235 M12 HM8 35mm 50
PHBM1240 M12 HM8 40mm 50
PHBM1250 M12 HM8 50mm 50
PHBM1260 M12 HM8 60mm 50
PHBM1280 M12 HM8 80mm 50
PHBM12100 M12 HM8 100mm 50
PHBM12120 M12 HM8 120mm 25

Additional Information

Tools & Accessories:

Hafren Pin Hex Insert Bit (25mm)
Hafren Pin Hex Insert Bit (50mm)
Hafren Pin Hex Key Wrench
Hafren Pin Hex Screwdriver
