Hafren PHBS Button Head Pin Hex Self Tappers
Product overview

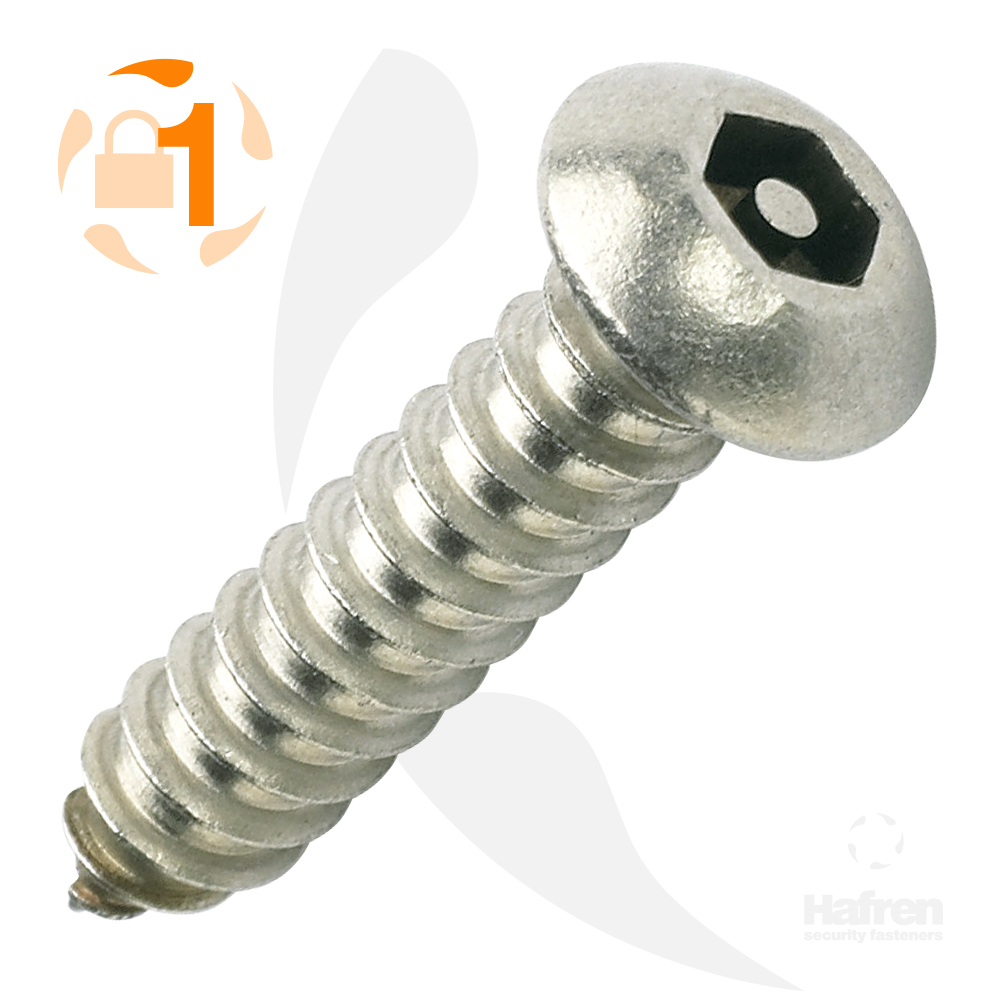

Hafren PHBS Button Head Pin Hex Self Tappers
Hafren PHBS Button Head Pin Hex Self Tappers (Pin Hex Tapping Screws) are high-security, tamper-resistant A2 Stainless Steel screws designed with an internal pin to prevent removal with standard hexagon tools. This advanced Pin Hex drive system ensures medium torque applications are secure, offering one of the most difficult-to-remove fasteners without the matching driver. Their button head design provides a smooth, professional finish ideal for industrial and commercial applications.
- Also stocked: Other lengths and diameters in A2 Stainless Steel
- Other materials and finishes available to order, subject to minimum order quantities
Part Numbers: PHBS06C-M, PHBS06D-M, PHBS06E-M, PHBS06F-M, PHBS06G-M, PHBS06I-M, PHBS08C-M, PHBS08D-M, PHBS08E-M, PHBS08F-M, PHBS08G-M, PHBS08H-M, PHBS08I-M, PHBS08J-M, PHBS10D-M, PHBS10E-M, PHBS10F-M, PHBS10G-M, PHBS10H-M, PHBS10I-M, PHBS10J-M, PHBS10K-M, PHBS12F-M, PHBS12G-M, PHBS12H-M, PHBS12I-M, PHBS12J-M, PHBS14F-M, PHBS14G-M, PHBS14H-M, PHBS14I-M, PHBS14J-M.
Features
Material: A2 (304) Stainless Steel
Heat Treatment: None
Finish: Passivated
Hafren Security Fasteners
Hafren Fasteners manufacture and supply security & tamper resistant fasteners; special headed screws, nuts & bolts. Their solutions are either permanent, or removable only by using a matching driver tool. They design and supply a wide range of security fasteners including bespoke made to measure security fasteners. If they don’t have what you need they’ll make it just the way you want.
Security: The need to safeguard against theft and vandalism is increasingly an essential part of many design specifications.
Safety: Complying with stringent Health & Safety Law, their fasteners keep the public safe.
Aesthetics: Security fasteners are not only secure and vandal-resistant, but aesthetically pleasing to the eye complementing their surrounding environment
For Additional Information on Hafren PHBS Button Head Pin Hex Self Tappers, please consult the Technical Data Table or PDF Files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part Number | Size | Driver Part Number | Length (L) | Box Quantity |
| PHBS06C-M | No.6 (3.5mm) | HM2 | 3/8" (9.5mm) | 100 |
| PHBS06D-M | No.6 (3.5mm) | HM2 | 1/2" (13mm) | 100 |
| PHBS06E-M | No.6 (3.5mm) | HM2 | 5/8" (16mm) | 100 |
| PHBS06F-M | No.6 (3.5mm) | HM2 | 3/4" (19mm) | 100 |
| PHBS06G-M | No.6 (3.5mm) | HM2 | 1" (25mm) | 100 |
| PHBS06I-M | No.6 (3.5mm) | HM2 | 1-1/2" (38mm) | 100 |
| PHBS08C-M | No.8 (4.2mm) | HM2.5 | 3/8" (9.5mm) | 100 |
| PHBS08D-M | No.8 (4.2mm) | HM2.5 | 1/2" (13mm) | 100 |
| PHBS08E-M | No.8 (4.2mm) | HM2.5 | 5/8" (16mm) | 100 |
| PHBS08F-M | No.8 (4.2mm) | HM2.5 | 3/4" (19mm) | 100 |
| PHBS08G-M | No.8 (4.2mm) | HM2.5 | 1" (25mm) | 100 |
| PHBS08H-M | No.8 (4.2mm) | HM2.5 | 1-1/4" (32mm) | 100 |
| PHBS08I-M | No.8 (4.2mm) | HM2.5 | 1-1/2" (38mm) | 100 |
| PHBS08J-M | No.8 (4.2mm) | HM2.5 | 2" (50mm) | 100 |
| PHBS10D-M | No.10 (4.8mm) | HM3 | 1/2" (13mm) | 100 |
| PHBS10E-M | No.10 (4.8mm) | HM3 | 5/8" (16mm) | 100 |
| PHBS10F-M | No.10 (4.8mm) | HM3 | 3/4" (19mm) | 100 |
| PHBS10G-M | No.10 (4.8mm) | HM3 | 1" (25mm) | 100 |
| PHBS10H-M | No.10 (4.8mm) | HM3 | 1-1/4" (32mm) | 100 |
| PHBS10I-M | No.10 (4.8mm) | HM3 | 1-1/2" (38mm) | 100 |
| PHBS10J-M | No.10 (4.8mm) | HM3 | 2" (50mm) | 100 |
| PHBS10K-M | No.10 (4.8mm) | HM3 | 2-1/2" (63mm) | 100 |
| PHBS12F-M | No.12 (5.5mm) | HM4 | 3/4" (19mm) | 100 |
| PHBS12G-M | No.12 (5.5mm) | HM4 | 1" (25mm) | 100 |
| PHBS12H-M | No.12 (5.5mm) | HM4 | 1-1/4" (32mm) | 100 |
| PHBS12I-M | No.12 (5.5mm) | HM4 | 1-1/2" (38mm) | 100 |
| PHBS12J-M | No.12 (5.5mm) | HM4 | 2" (50mm) | 100 |
| PHBS14F-M | No.14 (6.3mm) | HM4 | 3/4" (19mm) | 100 |
| PHBS14G-M | No.14 (6.3mm) | HM4 | 1" (25mm) | 100 |
| PHBS14H-M | No.14 (6.3mm) | HM4 | 1-1/4" (32mm) | 100 |
| PHBS14I-M | No.14 (6.3mm) | HM4 | 1-1/2" (38mm) | 100 |
| PHBS14J-M | No.14 (6.3mm) | HM4 | 2" (50mm) | 100 |
Additional Information
Tools & Accessories:
