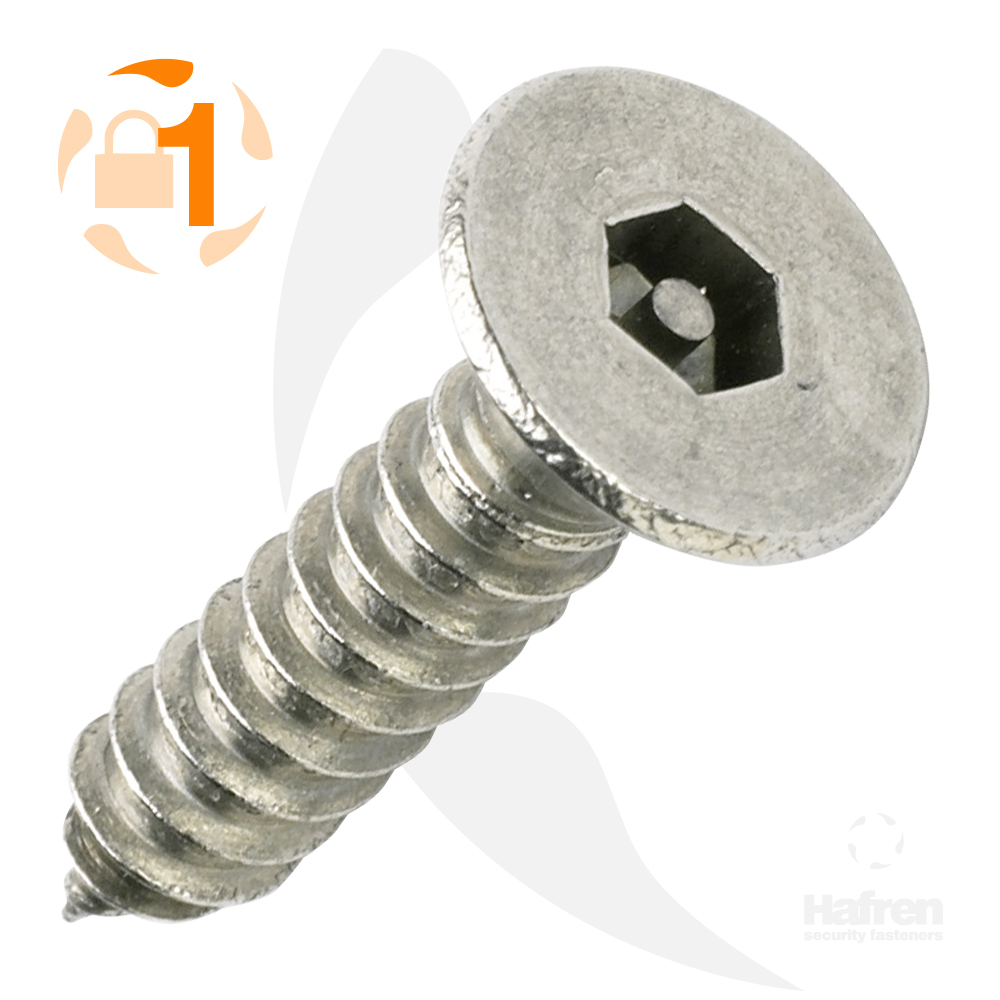

Hafren PHCS Countersunk A2 Stainless Steel Pin Hex Self Tappers
Product overview
Hafren PHCS Countersunk A2 Stainless Steel Pin Hex Self Tappers
Hafren PHCS Countersunk A2 Stainless Steel Pin Hex Self Tappers are high-performance security screws designed to deliver superior protection and reliability. Manufactured from durable A2 Stainless Steel, these Stainless Steel Tapping Screws feature an internal pin hex drive that prevents removal with standard tools, providing a strong deterrent against tampering and vandalism. The precision-engineered design ensures a clean countersunk finish, making Hafren PHCS Self Tappers ideal for applications where both security and appearance matter.
- Also stocked: AB Self Tapping and Metric Machine Screws (A2 Stainless Steel)
- Other materials and finishes available to order, subject to minimum order quantities
Part Numbers: PHCS06C-M, PHCS06D-M, PHCS06E-M, PHCS06F-M, PHCS06G-M, PHCS06I-M, PHCS08D-M, PHCS08E-M, PHCS08F-M, PHCS08G-M, PHCS08H-M, PHCS08I-M, PHCS08J-M, PHCS10D-M, PHCS10E-M, PHCS10F-M, PHCS10G-M, PHCS10H-M, PHCS10I-M, PHCS10J-M, PHCS10K-M, PHCS12F-M, PHCS12G-M, PHCS12H-M, PHCS12I-M, PHCS12J-M, PHCS14F-M, PHCS14G-M, PHCS14H-M, PHCS14I-M, PHCS14J-M.
Features
Material: A2 (304) Stainless Steel
Heat Treatment: None
Finish: Passivated
Hafren Security Fasteners
Hafren Fasteners manufacture and supply security & tamper resistant fasteners; special headed screws, nuts & bolts. Their solutions are either permanent, or removable only by using a matching driver tool. They design and supply a wide range of security fasteners including bespoke made to measure security fasteners. If they don’t have what you need they’ll make it just the way you want.
Security: The need to safeguard against theft and vandalism is increasingly an essential part of many design specifications.
Safety: Complying with stringent Health & Safety Law, their fasteners keep the public safe.
Aesthetics: Security fasteners are not only secure and vandal-resistant, but aesthetically pleasing to the eye complementing their surrounding environment
For Additional Information on Hafren PHCS Countersunk A2 Stainless Steel Pin Hex Self Tappers, please consult the Technical Data Table or PDF Files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part Number | Size | Driver Part Number | Length (L) | Box Quantity |
| PHCS06C-M | No.6 (3.5mm) | HM2 | 3/8" (9.5mm) | 100 |
| PHCS06D-M | No.6 (3.5mm) | HM2 | 1/2" (13mm) | 100 |
| PHCS06E-M | No.6 (3.5mm) | HM2 | 5/8" (16mm) | 100 |
| PHCS06F-M | No.6 (3.5mm) | HM2 | 3/4" (19mm) | 100 |
| PHCS06G-M | No.6 (3.5mm) | HM2 | 1" (25mm) | 100 |
| PHCS06I-M | No.6 (3.5mm) | HM2 | 1-1/2" (38mm) | 100 |
| PHCS08D-M | No.8 (4.2mm) | HM2.5 | 1/2" (13mm) | 100 |
| PHCS08E-M | No.8 (4.2mm) | HM2.5 | 5/8" (16mm) | 100 |
| PHCS08F-M | No.8 (4.2mm) | HM2.5 | 3/4" (19mm) | 100 |
| PHCS08G-M | No.8 (4.2mm) | HM2.5 | 1" (25mm) | 100 |
| PHCS08H-M | No.8 (4.2mm) | HM2.5 | 1-1/4" (32mm) | 100 |
| PHCS08I-M | No.8 (4.2mm) | HM2.5 | 1-1/2" (38mm) | 100 |
| PHCS08J-M | No.8 (4.2mm) | HM2.5 | 2" (50mm) | 100 |
| PHCS10D-M | No.10 (4.8mm) | HM3 | 1/2" (13mm) | 100 |
| PHCS10E-M | No.10 (4.8mm) | HM3 | 5/8" (16mm) | 100 |
| PHCS10F-M | No.10 (4.8mm) | HM3 | 3/4" (19mm) | 100 |
| PHCS10G-M | No.10 (4.8mm) | HM3 | 1" (25mm) | 100 |
| PHCS10H-M | No.10 (4.8mm) | HM3 | 1-1/4" (32mm) | 100 |
| PHCS10I-M | No.10 (4.8mm) | HM3 | 1-1/2" (38mm) | 100 |
| PHCS10J-M | No.10 (4.8mm) | HM3 | 2" (50mm) | 100 |
| PHCS10K-M | No.10 (4.8mm) | HM3 | 2-1/2" (63mm) | 100 |
| PHCS12F-M | No.12 (5.5mm) | HM4 | 3/4" (19mm) | 100 |
| PHCS12G-M | No.12 (5.5mm) | HM4 | 1" (25mm) | 100 |
| PHCS12H-M | No.12 (5.5mm) | HM4 | 1-1/4" (32mm) | 100 |
| PHCS12I-M | No.12 (5.5mm) | HM4 | 1-1/2" (38mm) | 100 |
| PHCS12J-M | No.12 (5.5mm) | HM4 | 2" (50mm) | 100 |
| PHCS14F-M | No.14 (6.3mm) | HM4 | 3/4" (19mm) | 100 |
| PHCS14G-M | No.14 (6.3mm) | HM4 | 1" (25mm) | 100 |
| PHCS14H-M | No.14 (6.3mm) | HM4 | 1-1/4" (32mm) | 100 |
| PHCS14I-M | No.14 (6.3mm) | HM4 | 1-1/2" (38mm) | 100 |
| PHCS14J-M | No.14 (6.3mm) | HM4 | 2" (50mm) | 100 |
Additional Information
Tools & Accessories:
