Home » Products » Hafren Security Fasteners » Hafren RTBM Button Head 6-Lobe Pin Machine Screws

Hafren RTBM Button Head 6-Lobe Pin Machine Screws

Product overview

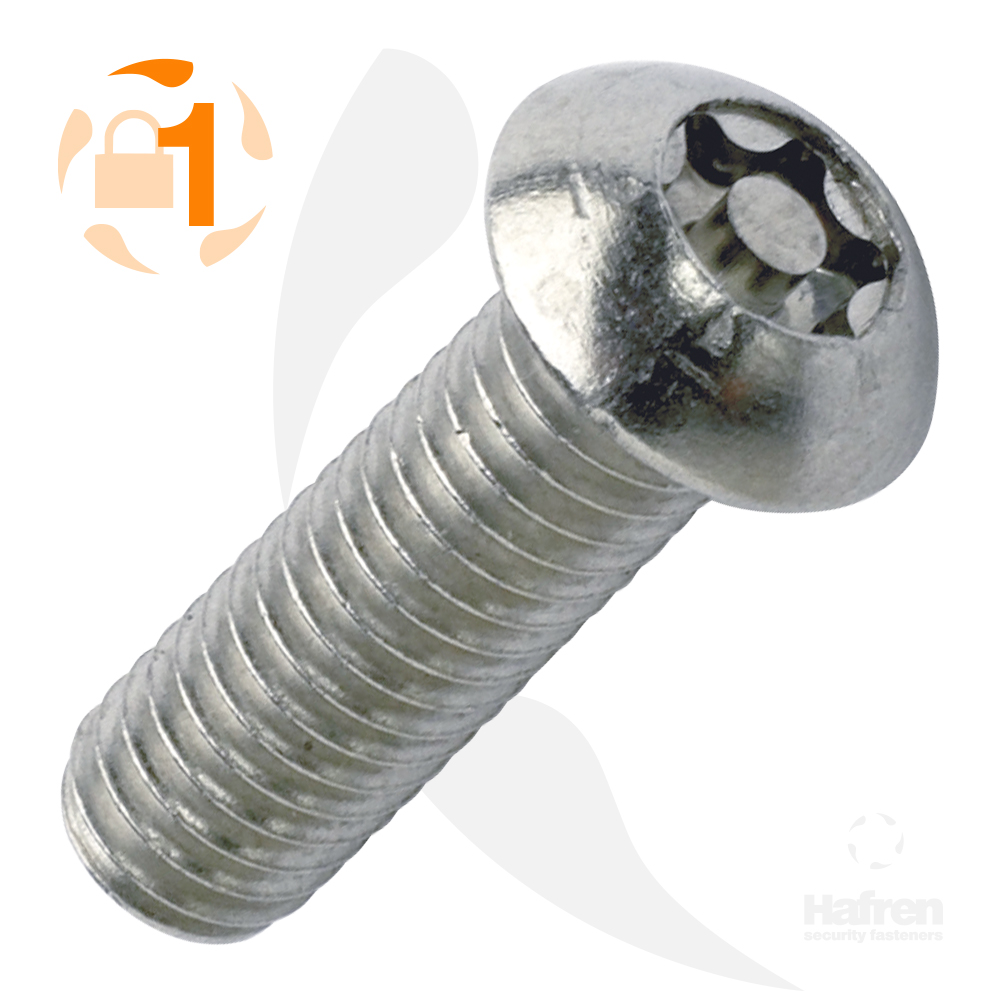

Hafren RTBM Button Head 6-Lobe Pin Machine Screws

Hafren RTBM Button Head 6-Lobe Pin Machine Screws are the ultimate high torque security screws for demanding applications. This advanced Hafren RTBM design features a 6-Lobe recess with internal pin, requiring a matching driver socket for quick and reliable installation and removal. These A2 Stainless Steel screws deliver excellent corrosion resistance and a clean, professional finish suitable for high-security and precision assemblies.

Also stocked: Full range of AB Self Tapping and Metric Machine Screws
Other materials and finishes available to order, subject to minimum order quantities

Part Numbers: RTBM0306, RTBM0308, RTBM0310, RTBM0312, RTBM0316, RTBM0320, RTBM0325, RTBM0330, RTBM0406, RTBM0408, RTBM0410, RTBM0412, RTBM0416, RTBM0420, RTBM0425, RTBM0430, RTBM0435, RTBM0440, RTBM0445, RTBM0450, RTBM0460, RTBM0508, RTBM0510, RTBM0512, RTBM0516, RTBM0520, RTBM0525, RTBM0530, RTBM0535, RTBM0540, RTBM0545, RTBM0550, RTBM0560, RTBM0608, RTBM0610, RTBM0612, RTBM0616, RTBM0620, RTBM0625, RTBM0630, RTBM0635, RTBM0640, RTBM0645, RTBM0650, RTBM0660, RTBM0680, RTBM0810, RTBM0812, RTBM0816, RTBM0820, RTBM0825, RTBM0830, RTBM0835, RTBM0840, RTBM0850, RTBM0855, RTBM0860, RTBM0875, RTBM0880, RTBM08100, RTBM1016, RTBM1020, RTBM1025, RTBM1030, RTBM1035, RTBM1040, RTBM1050, RTBM1060, RTBM1065, RTBM1070, RTBM1080, RTBM10100.

Features

Material: A2 Stainless Steel

Heat Treatment: None

Finish: Passivated

Hafren Security Fasteners

Hafren Fasteners manufacture and supply security & tamper resistant fasteners; special headed screws, nuts & bolts. Their solutions are either permanent, or removable only by using a matching driver tool. They design and supply a wide range of security fasteners including bespoke made to measure security fasteners. If they don’t have what you need they’ll make it just the way you want.

Security: The need to safeguard against theft and vandalism is increasingly an essential part of many design specifications.

Safety: Complying with stringent Health & Safety Law, their fasteners keep the public safe.

Aesthetics: Security fasteners are not only secure and vandal-resistant, but aesthetically pleasing to the eye complementing their surrounding environment

For Additional Information on Hafren RTBM Button Head 6-Lobe Pin Machine Screws, please consult the Technical Data Table or PDF Files below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Hafren RTBM Button Head 6-Lobe Pin Machine Screws - Datasheet Hafren RTBM Button Head 6-Lobe Pin Machine Screws - Technical Drawing

Interested in this Product?

Technical Data

Part Number	Size	Driver Part Number	Length (L)	Box Quantity
RTBM0306	M3	T10	6mm	100
RTBM0308	M3	T10	8mm	100
RTBM0310	M3	T10	10mm	100
RTBM0312	M3	T10	12mm	100
RTBM0316	M3	T10	16mm	100
RTBM0320	M3	T10	20mm	100
RTBM0325	M3	T10	25mm	100
RTBM0330	M3	T10	30mm	100
RTBM0406	M4	T20	6mm	100
RTBM0408	M4	T20	8mm	100
RTBM0410	M4	T20	10mm	100
RTBM0412	M4	T20	12mm	100
RTBM0416	M4	T20	16mm	100
RTBM0420	M4	T20	20mm	100
RTBM0425	M4	T20	25mm	100
RTBM0430	M4	T20	30mm	100
RTBM0435	M4	T20	35mm	100
RTBM0440	M4	T20	40mm	100
RTBM0445	M4	T20	45mm	100
RTBM0450	M4	T20	50mm	100
RTBM0460	M4	T20	60mm	100
RTBM0508	M5	T25	8mm	100
RTBM0510	M5	T25	10mm	100
RTBM0512	M5	T25	12mm	100
RTBM0516	M5	T25	16mm	100
RTBM0520	M5	T25	20mm	100
RTBM0525	M5	T25	25mm	100
RTBM0530	M5	T25	30mm	100
RTBM0535	M5	T25	35mm	100
RTBM0540	M5	T25	40mm	100
RTBM0545	M5	T25	45mm	100
RTBM0550	M5	T25	50mm	100
RTBM0560	M5	T25	60mm	100
RTBM0608	M6	T30	8mm	100
RTBM0610	M6	T30	10mm	100
RTBM0612	M6	T30	12mm	100
RTBM0616	M6	T30	16mm	100
RTBM0620	M6	T30	20mm	100
RTBM0625	M6	T30	25mm	100
RTBM0630	M6	T30	30mm	100
RTBM0635	M6	T30	35mm	100
RTBM0640	M6	T30	40mm	100
RTBM0645	M6	T30	45mm	100
RTBM0650	M6	T30	50mm	100
RTBM0660	M6	T30	60mm	100
RTBM0680	M6	T30	80mm	100
RTBM0810	M8	T40	10mm	100
RTBM0812	M8	T40	12mm	100
RTBM0816	M8	T40	16mm	100
RTBM0820	M8	T40	20mm	100
RTBM0825	M8	T40	25mm	100
RTBM0830	M8	T40	30mm	100
RTBM0835	M8	T40	35mm	100
RTBM0840	M8	T40	40mm	100
RTBM0850	M8	T40	50mm	100
RTBM0855	M8	T40	55mm	100
RTBM0860	M8	T40	60mm	100
RTBM0875	M8	T40	75mm	100
RTBM0880	M8	T40	80mm	100
RTBM08100	M8	T40	100mm	100
RTBM1016	M10	T45	16mm	100
RTBM1020	M10	T45	20mm	100
RTBM1025	M10	T45	25mm	100
RTBM1030	M10	T45	30mm	100
RTBM1035	M10	T45	35mm	100
RTBM1040	M10	T45	40mm	100
RTBM1050	M10	T45	50mm	100
RTBM1060	M10	T45	60mm	100
RTBM1065	M10	T45	65mm	100
RTBM1070	M10	T45	70mm	100
RTBM1080	M10	T45	80mm	100
RTBM10100	M10	T45	100mm	100

Additional Information

Tools & Accessories:
