Mason Anti-Vibration BBNR Bridge Bearing Natural Rubber Pads
Product overview

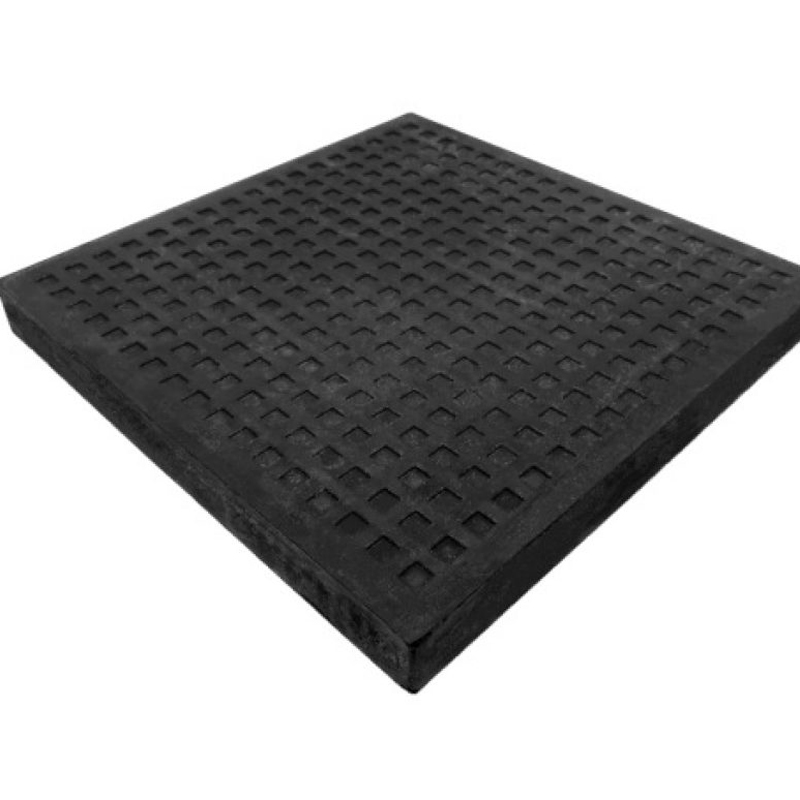

Mason Anti-Vibration BBNR Bridge Bearing Natural Rubber Pads
Mason UK Anti-Vibration BBNR Pads are high-quality Bridge Bearing Natural Rubber Pads designed for reliable vibration isolation and load support. These 25mm thick BBNR Pads are available in multiple sizes and load capacities, making them suitable for a wide range of applications. Use them to support mechanical equipment, isolate building structures or combine multiple pads side by side to increase load capacity in a single location. Layering BBNR Pads with metal shims between each pad further enhances deflection characteristics and improves vibration isolation efficiency.
Available sizes include:
- 100mm square
- 150mm square
- 200mm square
- 250mm square
Supplied as standard off-the-shelf BBNR Pads, they are a high-performance, cost-effective solution compared to bespoke design bearings. Manufactured from premium Bridge Bearing Natural Rubber, these Mason Rubber Bearing Pads provide durable, long-lasting support in industrial, mechanical and structural applications.
Key Features & Benefits
- 25mm thick BBNR Pads in multiple sizes
- Metal shim layering option for enhanced deflection and isolation
- Manufactured from high-quality Bridge Bearing Natural Rubber
- Supports mechanical equipment and building structures
- Cost-effective off-the-shelf solution
- Reliable vibration isolation and load-bearing performance
BBNR Bridge Bearing Natural Rubber Pads – Applications
Applications for Mason Anti-Vibration Bridge Bearing Natural Rubber Pads include:
- HVAC units
- Plant rooms
- AHUs / Chillers
- Electrical Switchgear & Transformers
- Pump Sets
- Vent Sets
- Gensets
- Compressors
- Motor Generators
- Diesel Generators
- Punch Presses
- Power Presses
- Drill Presses
- Lathes
- Saws
Mason UK
Founded in 1997, Mason UK is the exclusive UK agent for Mason Industries Inc., a global leader in Vibration Isolation Solutions. With over 20 years of experience, the company specialises in high-quality products and systems for Architectural, M&E and Industrial applications. As an authorised Mason UK Distributor, we deliver the engineering expertise and innovative solutions of Mason Industries to the UK, Ireland and beyond. We stock their range of Rubber Bearing Pads (BBNR Pads) that have proven to be reliable, safe and highly effective.
For Additional Information on Mason UK Anti-Vibration BBNR Bridge Bearing Natural Rubber Pads, please consult the Technical Data Table or PDF Files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
BBNR (BRIDGE BEARING NATURAL RUBBER) PADS |
| Size - in | Size - mm | Max Load - lbs | Max Load - kg | Max Deflection - in | Max Deflection - mm |
| BBNR- 4 x 4 x 1 | 100 x 100 x 25 | 2400 | 1089 | 1/8 | 3.2 |
| BBNR- 6 x 6 x 1 | 150 x 150 x 25 | 7900 | 3583 | 1/8 | 3.2 |
| BBNR- 8 x 8 x 1 | 200 x 200 x 25 | 16000 | 7257 | 1/8 | 3.2 |
| BBNR- 10 x 10 x 1 | 250 x 250 x 25 | 25000 | 11340 | 1/8 | 3.2 |
