Mason Anti-Vibration MSW Mini Super W Pads
Product overview

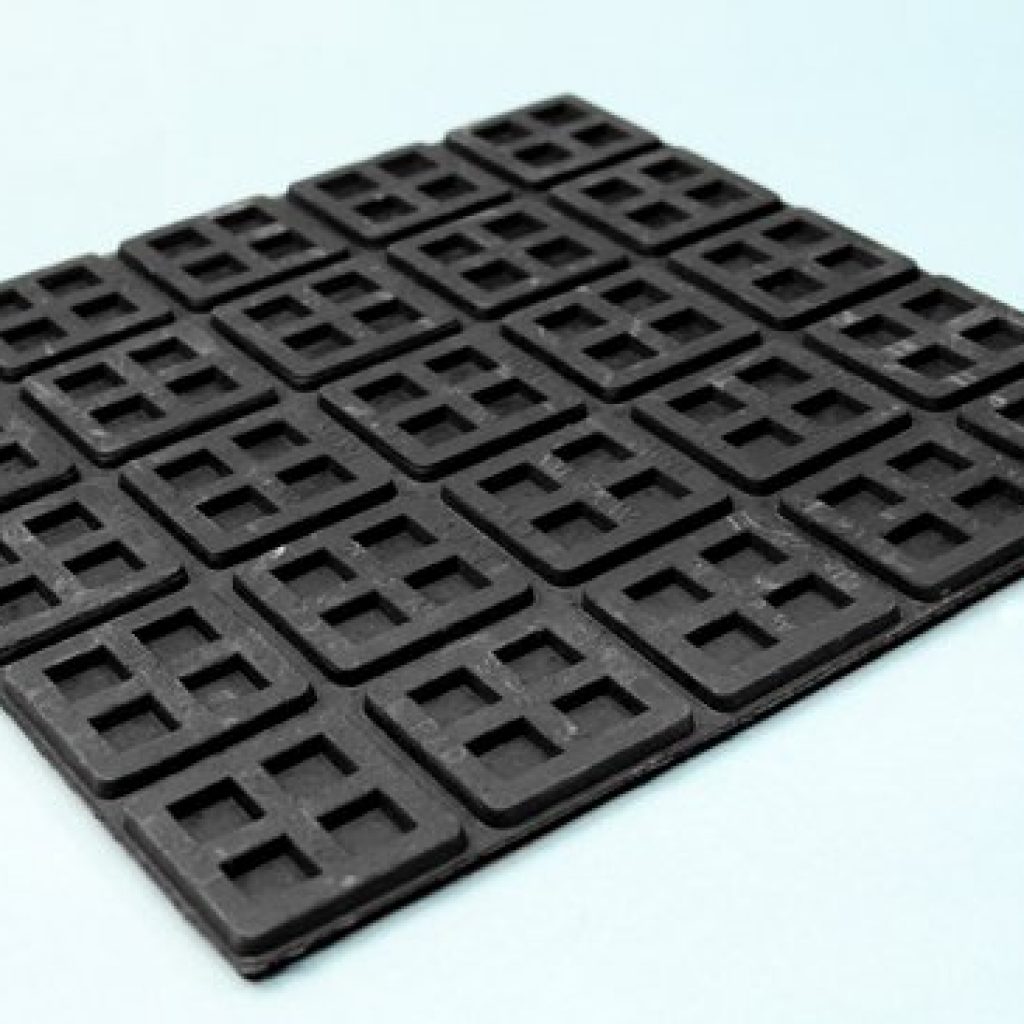

Mason Anti-Vibration MSW Mini Super W Pads
Mason UK Anti-Vibration MSW Pads (also called Mason Mini Super W) feature unique waffle pockets that allow greater material deformation, delivering excellent vibration and acoustic isolation. These Mini Super W Pads can be configured in multiple ways to suit most applications, from industrial machinery and mechanical equipment to zones with limited height. Their compact design makes them ideal for applications requiring precise, reliable vibration control.
MSW Pads can be supplied in stacked assemblies, separated by steel plates. Increasing the number of layers increases available deflection and enhances acoustic isolation. Steel shims distribute the load evenly across the stack, ensuring consistent performance under pressure.
- Pad Size: 50mm x 50mm x 10mm thickness
- Sheet Size: 450mm x 450mm (81 pads per sheet)
- Material Options: Neoprene or L.D.S (Low Dynamic Stiffness) rubber
- Nominal Load: 45 durometer natural rubber pad = 20.45 kg
Key Features & Benefits
- Waffle pocket design enhances vibration isolation and deflection
- Stackable with steel shims for increased acoustic performance
- Available in durable Neoprene or L.D.S rubber
- Supports industrial, mechanical and architectural applications
- Reliable Mini Anti-Vibration Pads for compact vibration control solutions
MSW Mini Super W Pads – Applications
Applications for Mason Anti-Vibration MSW Mini Super W Pads include:
- HVAC units
- Plant rooms
- AHUs / Chillers
- Electrical Switchgear & Transformers
- Pump Sets
- Vent Sets
- Gensets
- Compressors
- Motor Generators
- Diesel Generators
- Punch Presses
- Power Presses
- Drill Presses
- Lathes
- Saws
Mason UK
Founded in 1997, Mason UK is the exclusive UK agent for Mason Industries Inc., a global leader in Vibration Isolation Solutions. With over 20 years of experience, the company specialises in high-quality products and systems for Architectural, M&E and Industrial applications. As an authorised Mason UK Distributor, we deliver the engineering expertise and innovative solutions of Mason Industries to the UK, Ireland and beyond. We stock their range of Mason MSW Pads that have proven to be reliable, safe and highly effective.
For Additional Information on Mason UK Anti-Vibration MSW Mini Super W Pads, please consult the Technical Data Table or PDF Files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
MSW PADS (MINI SUPER W PADS) - LOAD RATING |
| Rec. Load per 2 x 2 Square - lbs | Rec. Load per 2 x 2 Square - kg | Rec. Load per Area - lbs/in² | Rec. Load per Area - kg/mm² | Rec. Load per Area - kPa | Max Load per Area - lbs/in² | Max Load per Area - kg/mm² | Max Load per Area - kPa |
| 180 | 80 | 45 | .032 | 310 | 60 | .042 | 414 |
