Nexans AFN Outdoor MV Slip-On Cold Shrink Terminations (Single Core | 42kV)

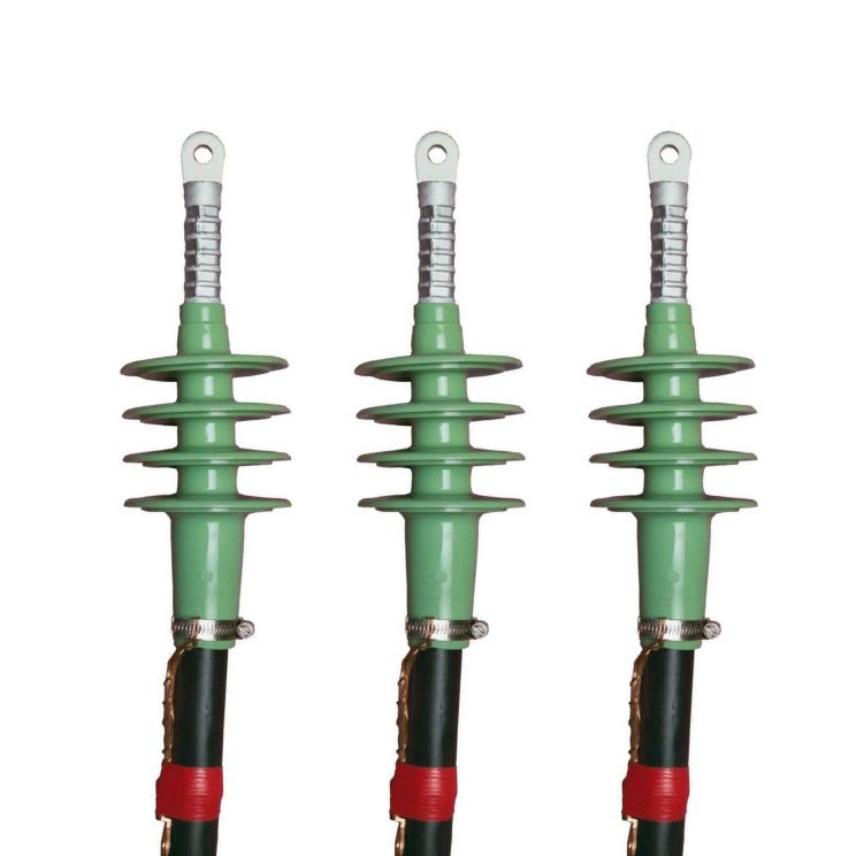

Nexans AFN Outdoor MV Slip-On Cold Shrink Terminations (Single Core | 42kV) are reliable, weather-resistant outdoor terminations for polymeric insulated MV cables with extruded or bonded conductive screens. These Nexans AFN Terminations provide long-term electrical performance in demanding environments. The range includes AFN 10, AFN 20, AFN 30 and AFN 36, covering voltages up to 42kV. Slip-on silicone housings make installation quick and easy without heat or special tools, and a few sizes cover most cable cross-sections. Compatible with three-core, copper wire screened or copper tape screened and armoured cables, this AFN Single Core system is a versatile, dependable outdoor solution.
Part Numbers: AFN 10, AFN 20, AFN 30, AFN 36.

Nexans AFN – Kit Contents

  • x3 termination housings
  • x3 mechanical or compression cable lugs for the conductor
  • x3 mechanical or compression screen wire cable lugs
  • Installation instructions
  • Silicone grease
  • Assembly incidentals

AFN Outdoor MV Terminations – Features

  • Voltage class: Up to 42kV
  • Application: Outdoor use on polymeric insulated MV cables
  • Type: Slip-On Cold Shrink Termination
  • Material: High-quality silicone rubber
  • Standards: CENELEC HD 629.1
  • Quick installation without heat or special tools
  • Suitable for three-core, copper wire screened or copper tape screened and armoured cables

Order Information

Below, you can easily select the Nexans AFN Outdoor MV Slip-On Cold Shrink Terminations for each cable voltage:

MAX VOLTAGE 6-10 kV

Part No Section Core Length
3 x AFN 10 Gr. 1 25÷95 mm2 150 mm
3 x AFN 10 Gr. 2 120÷240 mm2 150 mm
3 x AFN 10 Gr. 3 300÷500 mm2 150 mm
3 x AFN 20 Gr. 4 630÷800 mm2 225 mm
3 x AFN 36 Gr. 5 1000 mm2 405 mm
3 x AFN 36 Gr. 6 1200 mm2 405 mm

MAX VOLTAGE 12-20 kV

Part No Section Core Length
3 x AFN 20 Gr. 1 35÷70 mm2 240 mm
3 x AFN 20 Gr. 2 95÷240 mm2 240 mm
3 x AFN 20 Gr. 3 300÷500 mm2 240 mm
3 x AFN 20 Gr. 4 400÷630 mm2 240 mm
3 x AFN 36 Gr. 5 630÷800 mm2 405 mm
3 x AFN 36 Gr. 6 1000÷1200 mm2 405 mm

MAX VOLTAGE 18-30 kV

Part No Section Core Length
3 x AFN 30 Gr. 1 50÷70 mm2 300 mm
3 x AFN 30 Gr. 2 95÷240 mm2 300 mm
3 x AFN 30 Gr. 3 240÷400 mm2 300 mm
3 x AFN 36 Gr. 5 400÷630 mm2 405 mm
3 x AFN 36 Gr. 6 630÷1200 mm2 405 mm

MAX VOLTAGE 20.8-36 kV

Part No Section Core Length
3 x AFN 30 Gr. 12 50÷70 mm3 300 mm
3 x AFN 30 Gr. 22 95÷240 mm3 300 mm
3 x AFN 30 Gr. 33 240÷400 mm2 300 mm
3 x AFN 36 Gr. 5 400÷630 mm2 405 mm
3 x AFN 36 Gr. 6 630÷1200 mm2 405 mm

For Additional Information on Nexans AFN Outdoor MV Slip-On Cold Shrink Terminations (Single Core | 42kV), please consult the Technical Data Table or PDF Files below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Ordering Part Number Nominal Voltage Uo / U (kV)
 Conductor Cross-Section (mm2) - Min. Conductor Cross-Section (mm2) - Max. Dia. over Core Insulation (mm) - Min. Dia. over Core Insulation (mm) - Max. Number of Sheds L (mm) Dia. D (mm) Creepage Distance (mm)
3 x AFN 10 Gr. 1 6/10 25 95 12.7 20.8 3 210 90 369
3 x AFN 10 Gr. 2 6/10 120 240 19.2 28.4 3 210 96 365
3 x AFN 10 Gr. 3 6/10 300 500 27.4 36.4 3 210 105 360
3 x AFN 20 Gr. 4 6/10 630 800 34.0 45.0 4 240 118 462
3 x AFN 36 Gr. 5 6/10 1000 1000 39.0 50.0 7 405 127 755
3 x AFN 36 Gr. 6 6/10 1200 1200 46.0 58.0 7 405 127 755
3 x AFN 20 Gr. 1 12/20 35 70 18.3 23.5 4 240 100 480
3 x AFN 20 Gr. 2 12/20 95 240 22.5 33.0 4 240 112 499
3 x AFN 20 Gr. 3 12/20 300 500 31.0 41.0 4 240 118 462
3 x AFN 20 Gr. 4 12/20 400 630 34.0 45.0 4 240 118 462
3 x AFN 36 Gr. 5 12/20 630 800 39.0 50.0 7 405 127 755
3 x AFN 36 Gr. 6 12/20 1000 1200 46.0 58.0 7 405 127 755
3 x AFN 30 Gr. 1 18/30 50 70 23.8 28.4 6 300 115 695
3 x AFN 30 Gr. 2 18/30 95 240 27.1 37.6 6 300 115 694
3 x AFN 30 Gr. 3 18/30 240 400 31.5 42.8 6 300 127 718
3 x AFN 36 Gr. 5 18/30 400 630 39.0 50.0 7 405 127 755
3 x AFN 36 Gr. 6 18/30 630 1200 46.0 58.0 7 405 127 755
3 x AFN 30 Gr. 12 20.8/362 50 70 23.8 28.4 6 300 115 695
3 x AFN 30 Gr. 22 20.8/362 95 240 27.1 37.6 6 300 115 694
3 x AFN 30 Gr. 33 20.8/362 240 400 31.5 42.8 6 300 127 718
3 x AFN 36 Gr. 5 20.8/362 400 630 39.0 50.0 7 405 127 755
3 x AFN 36 Gr. 6 20.8/362 630 1200 46.0 58.0 7 405 127 755

Note:

The classification does only apply for polymeric insulated XLPE cables (dimensions acc. to DIN VDE 0276-620) with extruded conductive screen. Please contact our sales representative, when using other cable types.

Technical Information

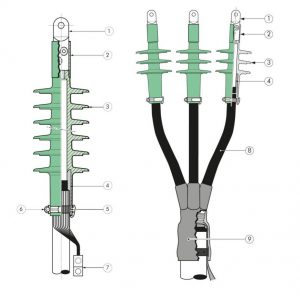

  • 1. Longitudinally sealed mechanical or compression cable lug
  • 2. Silicone tube or cap as additional sealing at the transition of cable lug to the termination housing when using mechanical cable lugs
  • 3. High flexibility silicone rubber housing, ensuring a perfect fit to the cable even during load changes
  • 4. Integrated conductive rubber insert
  • 5. Water sealing mastic
  • 6. Earthing clamp
  • 7. Earth cable lug
  • 8. Heat-shrinkable tube
  • 9. Heat-shrinkable break-out
