3M™ Scotch Vinyl Color-Coding Electrical Tape 35
Product overview

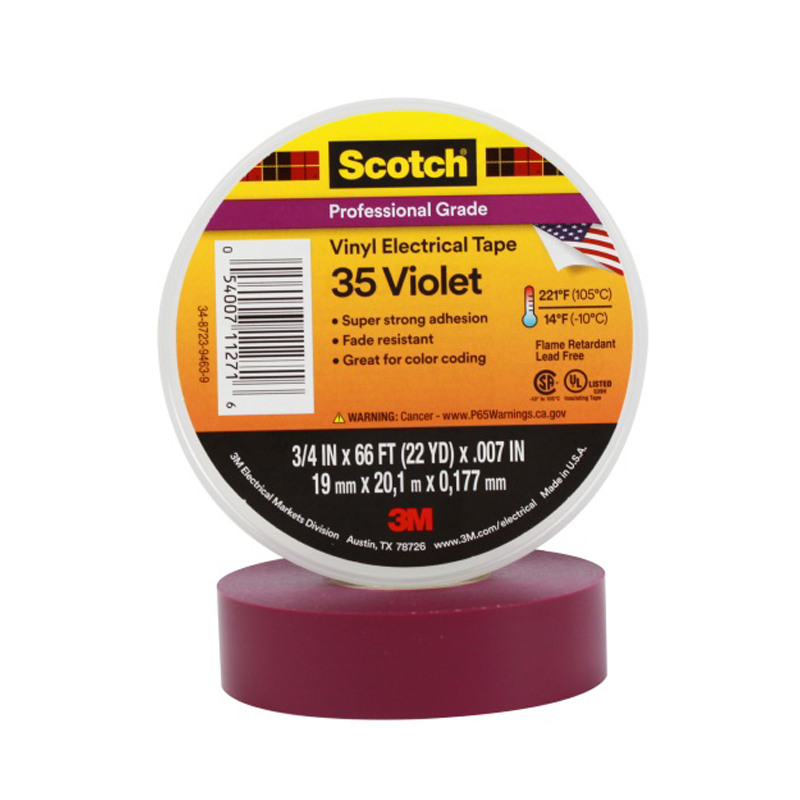

3M™ Scotch Vinyl Color-Coding Electrical Tape 35
3M™ Scotch Vinyl Color-Coding Electrical Tape 35 is a premium-grade, 7 mil thick, flame-retardant PVC electrical tape. It’s designed for professional colour-coding and phase identification applications. This highly conformable tape provides excellent electrical and mechanical protection with its combination of an aggressive pressure-sensitive rubber resin adhesive and an elastic PVC backing. 3M Scotch Tape 35 offers reliable insulation and durability. This makes it ideal for marking motor leads, piping systems, safety areas and insulating electrical wires. Rated for 600 V applications and capable of withstanding temperatures from -10 °C to 105 °C, Scotch 35 maintains flexibility and adhesion even in challenging environments.
Part Numbers: 7100240608, 7100239020, 7100239019, 7100238737, 7100238736, 7100238735, 7100238734, 7100238733, 7000058437.
Key Features & Benefits
- Rated for 600 V electrical insulation and colour-coding applications
- Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, acids, solvents, and weather conditions
- Durable PVC backing provides excellent conformability and mechanical protection
- Pressure-sensitive rubber resin adhesive ensures strong, lasting adhesion
- Suitable for phase identification, motor lead colour coding, piping system marking, and safety zone marking
- Withstands operating temperatures from -10 °C (14 °F) to 105 °C (221 °F)
- UL Listed, VDE and CSA Certified, RoHS 2015/863/EU Compliant
- Available in multiple colours for easy identification and coding
- Supplied in 19 mm (0.75 in) width and 20 m (66 ft) rolls for convenient site use
3M Scotch Tape 35 – Professional Colour-Coding & Reliable Insulation
Whether you’re colour-coding motor leads, marking safety areas or insulating electrical wiring, Scotch Vinyl Colour-Coding Electrical Tape 35 delivers dependable performance and long-lasting protection. This professional-grade vinyl tape combines flame-retardant PVC with an aggressive rubber adhesive for moisture-tight sealing and mechanical protection in a wide temperature range. Its superior flexibility and adhesion make Scotch Vinyl Electrical Tape 35 the trusted choice for electricians and maintenance professionals requiring clear identification and secure insulation up to 600 V.
Choose Scotch Tape 35 when dependable colour coding, robust insulation, and durable mechanical protection matter to your electrical projects.
For Additional Information on 3M Scotch Vinyl Color-Coding Electrical Tape 35 (7100240608, 7100239020, 7100239019, 7100238737, 7100238736, 7100238735, 7100238734, 7100238733, 7100240608, 7000058437), please consult the Technical Data Table or PDF Files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
TYPICAL PROPERTIES |
| Adhesive Type | Applications | Backing (Carrier) Material | Brands | Dielectric Strength | Electrolytic Corrosion Factor | Elongation at Break | Flame Retardant | Insulation Resistance | Max Operating Temp (℃) | Max Operating Temp (°F) |
| Rubber | Electrical Maintenance, Insulation | PVC, Vinyl | Scotch® | 600 V | 0.9 | 225.0% | Yes | > 10^6 megohms | 105℃ | 221°F |
TYPICAL PROPERTIES - CONTINUED |
| Min Operating Temp (℃) | Min Operating Temp (°F) | Product Colour | Shelf Life | Smallest Saleable Unit | Tape Grade | Tensile Strength (Metric) | Total Tape Thickness without Liner (Imperial) | Total Tape Thickness without Liner (Metric) | Voltage Rating |
| -10℃ | 14°F | Purple, Red, Green, Blue, Yellow, White, Orange, Brown, Grey | 5 Year | Roll | Professional | 30 N/10mm | 7 mil | 0.178 mm, 0.18 mm | 600 V |
DIMENSIONS AND CLASSIFICATIONS |
| Overall Length (ft) | Overall Length (m) | Overall Width (in) | Overall Width (mm) |
| 66 | 20, 20.117 | 0.75 | 19, 19.05 |
