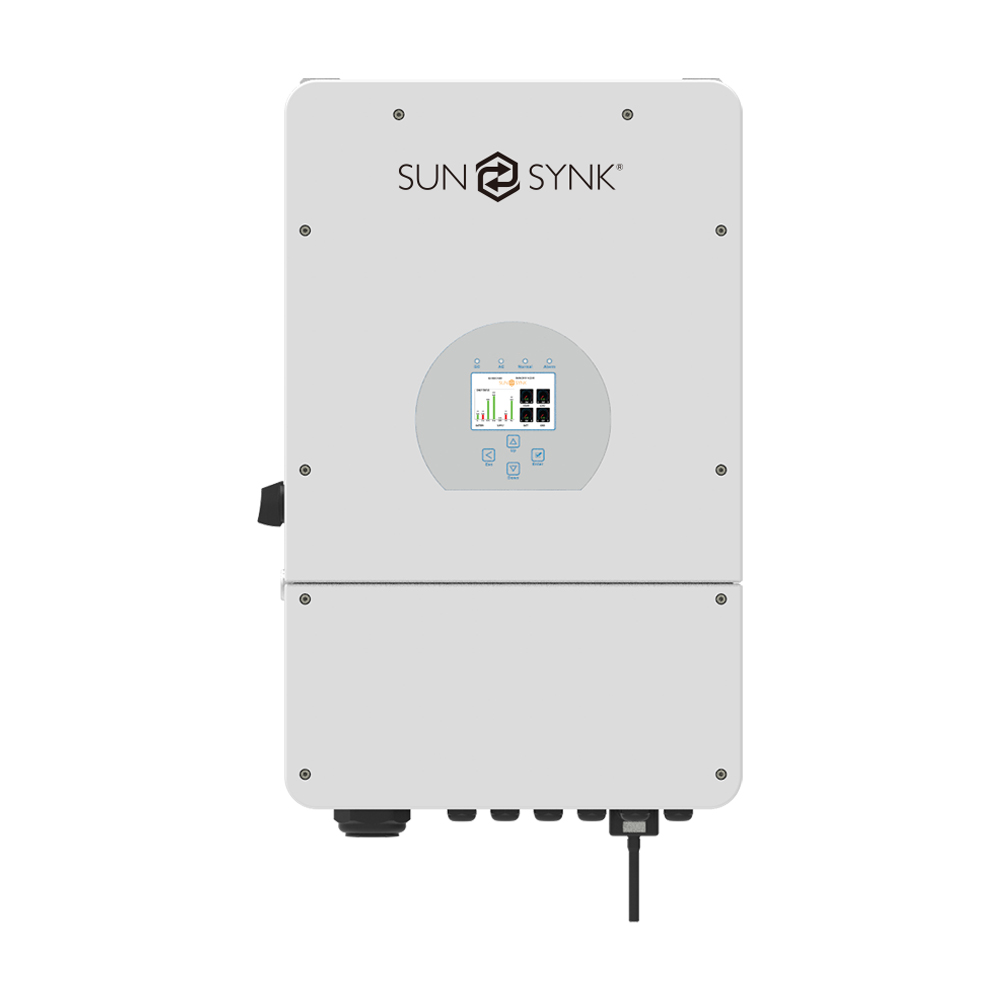

The Sunsynk 16kW Hybrid Inverter (SYNK-16K-SG01LP1) is a compact, multifunctional power management solution designed for a wide range of applications. This includes marine (vessel power management), power shedding (home, office and factory), UPS systems, building sites, military environments, telecommunications, and remote locations with solar and wind generation. Integrating an inverter, solar charger and battery charger into one efficient system, the Sunsynk 16kW Single-Phase Hybrid Inverter enables seamless energy management from solar panels, batteries, the grid, generators or even wind turbines. This ensures a reliable and uninterrupted power supply.
Part Number
Max. PV Input Power
Max. AC Output Active Power
SYNK-16K-SG01LP1
20800W
16000W
Key Features & Benefits
Easy-to-use LCD display with intuitive controls, real-time power flow visualisation, and support for Wi-Fi or GSM monitoring
Smart settable 3-stage MPPT charging maximises solar efficiency and optimises battery performance
Start with UPS backup, grid-tied solar or a full hybrid system with batteries and panels. Expand anytime as energy needs grow.
Fully programmable controller with adjustable supply priority (battery or grid), multiple operation modes (on-grid / off-grid / UPS), and configurable charging settings
Works with grid supply, generators and wind turbines. 220V single-phase pure sine-wave output ensures smooth appliance operation.
Supports parallel and multi-inverter configurations for scalable energy systems
Enables efficient self-use of solar energy with optional grid export
Overload, over-temperature, and short-circuit protection. Smart battery charger design extends battery life.
Auxiliary load output, auto restart on AC recovery, and auto earth bond for enhanced safety and flexibility
Ideal for marine (vessel power management), power shedding (home, office and factory), UPS systems, building sites, military environments, telecommunications, and remote locations with solar and wind generation
Additional Features
Can connect up to 16 inverters in parallel for both on-grid and off-grid applications, supporting large-scale installations and multiple battery banks
Max charging/discharging current: 290 A for 16 kW model. Provides efficient energy storage and retrieval for both models
6 time periods for battery charging/discharging: Users can set specific time periods for optimised charging and discharging cycles, maximising battery life and operational efficiency
Why Choose Sunsynk 16kW Hybrid Inverters?
The Sunsynk 16kW Hybrid Inverter delivers intelligent, flexible energy management for homes and businesses. Whether used as a UPS backup system, a grid-tied solar solution or a fully off-grid installation, the 16kW Hybrid Inverter adapts to your needs. Its ability to integrate multiple energy sources (including solar, batteries, grid power, generators and wind) helps reduce electricity costs while ensuring continuous power availability. Compact, scalable and easy to install, the Sunsynk 16kW is an all-round reliable solution.
For Additional Information on the Sunsynk 16kW Single-Phase Hybrid Inverter (SYNK-16K-SG01LP1), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service. Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring, Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level
SURGE PROTECTION LEVEL
TYPE II(DC), TYPE II(AC)
INTERFACE
SYNK-16K-SG01LP1
COMMUNICATION INTERFACE
RS485/RS232/CAN
MONITOR MODE
GPRS/WIFI/Bluetooth/4G/LAN (optional)
GENERAL INFORMATION
SYNK-16K-SG01LP1
OPERATING TEMPERATURE RANGE
-40~60 ºC, >45 ºC Derating
PERMISSABLE AMBIENT HUMIDITY
0-100%
PERMISSABLE ALTITUDE
2000m
NOISE
<50 dB
INGRESS PROTECTION (IP) RATING
IP65
PROTECTION LEVEL
Class 1
INVERTER TOPOLOGY
Non-Isolated
OVER VOLTAGE CATEGORY
OVC II (DC), OVC III (AC)
NET WEIGHT
52kg
GROSS WEIGHT
60kg
SIZE
464W × 763H × 282D mm (Excluding connectors and brackets)
INSTALLATION STYLE
Wall-mounted
WARRANTY
5 years (10 when installed with a Sunsynk battery)
POLLUTION DEGREE
PD2 (Inside) PD3 (Outside)
MANUFACTURER COUNTRY
China
GRID REGULATION
AS-NZS 4777.2, NRS 097-2-1, G99, IEC 62116, UNE 217002; Additional connections available upon request
