Sunsynk 20kW–25kW Three-Phase HV Hybrid Inverters
Product overview

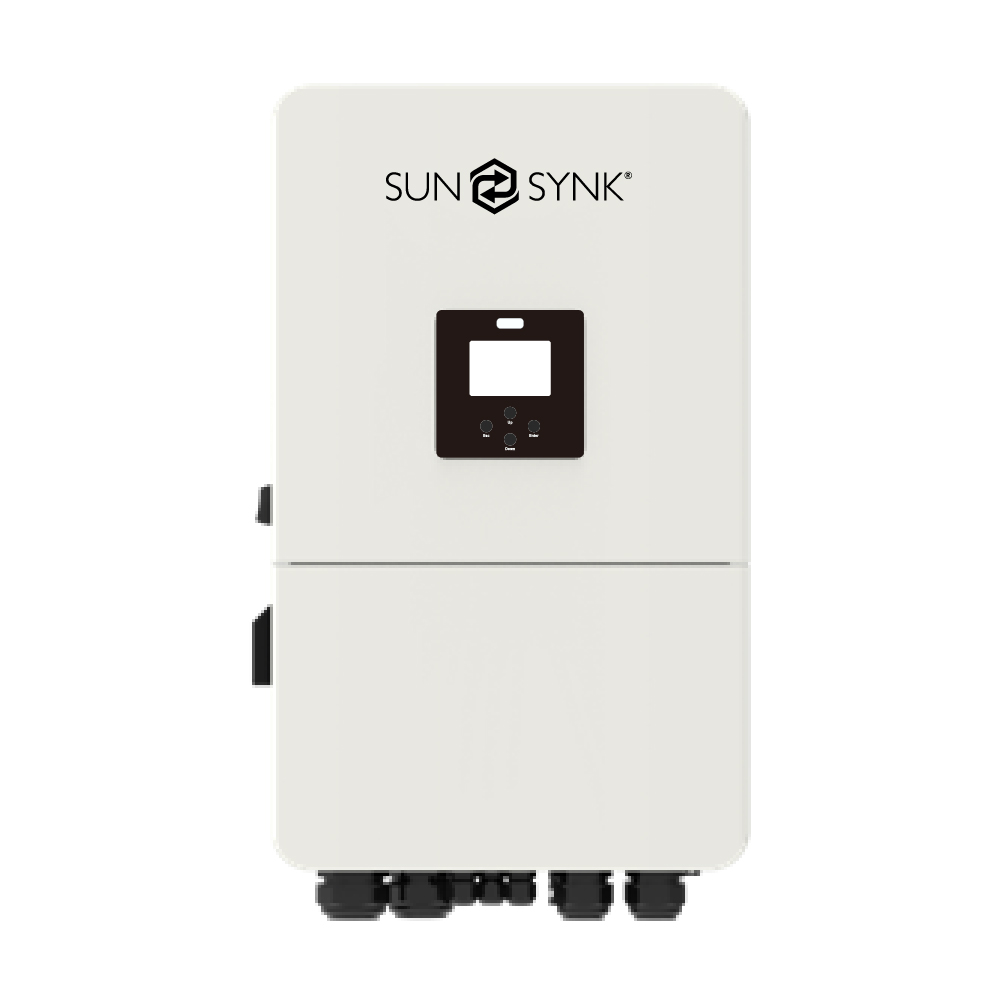

Sunsynk 20kW–25kW Three-Phase HV Hybrid Inverters
The Sunsynk 20kW Inverter (SUNSYNK-20KSG01HP3-EU-AM2) and Sunsynk 25kW Inverter (SUNSYNK-25KSG01HP3-EU-AM2) are high-efficiency, three-phase hybrid storage solutions for large-scale residential, commercial and industrial applications. Ideal for marine (vessel power management), power shedding (home, office and factory), UPS systems, building sites, telecommunications, and remote locations with solar or wind generation, these inverters seamlessly manage energy from multiple sources. This includes solar, grid power, generators and high-voltage batteries, while providing reliable, uninterrupted power.
A standout feature of the 20kW Three-Phase Inverter and 25kW Three-Phase Inverter is intelligent phase balancing. Even with uneven loads (e.g., 20% / 20% / 60% across phases), these inverters maintain perfect phase rotation for optimal performance. No other inverters in this class offer such precise load management.
| Part Number | Max. PV Input Power | Rated AC Input / Output Active Power |
| SUNSYNK-20KSG01HP3-EU-AM2 | 26000W | 20000W |
| SUNSYNK-25KSG01HP3-EU-AM2 | 32500W | 25000W |
Key Features & Benefits
Individual MPPT per battery string and solar input ensures maximum efficiency, even with uneven load distribution across phases- Advanced three-phase load balancing maintains perfect phase rotation under uneven load conditions
- Clear, interactive LCD display with real-time power flow visualisation and user-configurable settings
- RS485 Wi-Fi interface enables remote monitoring and control
- Smart settable 3-stage MPPT charging optimises solar generation and battery performance
- Supports grid, generator, and wind turbine inputs. DC and AC coupling allows retrofitting into existing solar systems.
- Maximum charging/discharging current of 250A for high power capability
- Parallel capability supports up to 4 inverters for larger energy systems
- 230V/400V three-phase pure sine-wave output powers both single-phase and three-phase loads
- Fully programmable controller: Adjustable supply priority (battery or grid), multiple operating modes (on-grid/off-grid/UPS), and configurable charging parameters
- Overload, over-temperature, and short-circuit protection with smart battery protection design and isolation transformer
- Self-consumption optimisation with grid feed-in capability and limiting function to prevent excess export
- Auxiliary load output, auto restart on AC recovery, and six configurable time periods for battery charging/discharging
- Ideal for marine, power shedding, UPS systems, remote/off-grid installations, building sites, and telecommunications
Why Choose Sunsynk 20kW–25kW Three-Phase HV Hybrid Inverters?
The Sunsynk 20kW Inverter and 25kW Inverter provide intelligent, high-capacity energy management for demanding applications. Their advanced phase balancing, flexible configuration and parallel scalability make them ideal for large solar installations, commercial facilities and critical backup systems. By integrating solar, battery, grid and generator power, these inverters deliver reliable, uninterrupted electricity while optimising energy efficiency.
For Additional Information on Sunsynk 20kW–25kW Three-Phase HV Hybrid Inverters, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
BATTERY INPUT DATA |
| SUNSYNK-20KSG01HP3-EU-AM2 | SUNSYNK-25KSG01HP3-EU-AM2 | |
| BATTERY TYPE | Lithium-ion | Lithium-ion |
| BATTERY VOLTAGE | 160~700V | 160~700V |
| MAX. CHARGING CURRENT | 37A | 50A |
| MAX. DISCHARGING CURRENT | 37A | 50A |
| CHARGING STRATEGY FOR LI-ION BATTERY | Self-Adaptation to BMS | Self-Adaptation to BMS |
| NUMBER OF BATTERY INPUT | 1 | 1 |
PV STRING INPUT DATA |
| SUNSYNK-20KSG01HP3-EU-AM2 | SUNSYNK-25KSG01HP3-EU-AM2 | |
| MAX. PV INPUT POWER | 26000W | 32500W |
| MAX. PV INPUT VOLTAGE | 1000V | 1000V |
| START-UP VOLTAGE | 180V | 180V |
| MPPT RANGE | 150~850V | 150~850V |
| RATED PV INPUT VOLTAGE | 600V | 600V |
| MAX. INPUT SHORT-CIRCUIT CURRENT | 39+39A | 39+39A |
| MAX. OPERATING PV INPUT CURRENT | 26+26A | 26+26A |
| NO. OF MPPT / NO. OF STRING PER MPPT | 2/2+2 | 2/2+2 |
AC OUTPUT DATA |
| SUNSYNK-20KSG01HP3-EU-AM2 | SUNSYNK-25KSG01HP3-EU-AM2 | |
| RATED AC INPUT / OUTPUT ACTIVE POWER | 20000W | 25000W |
| MAX. AC INPUT / OUTPUT APPARENT POWER | 22000W | 27500W |
| PEAK POWER (OFF-GRID) | 1.5 times of rated power, 10 S | 1.5 times of rated power, 10 S |
| RATED AC INPUT / OUTPUT CURRENT | 30.4/29A | 37.9/36.3A |
| MAX. AC INPUT / OUTPUT CURRENT | 33.4/31.9A | 41.7/39.9A |
| MAX. CONTINUOUS AC PASSTHROUGH (GRID TO LOAD) | 80A | 80A |
| MAX. THREE PHASE UNBALANCED OUTPUT CURRENT | 34A | 41.7A |
| RATED INPUT / OUTPUT VOLTAGE RANGE | 220/380V, 230/400V 0.85Un-1.1Un | 220/380V, 230/400V 0.85Un-1.1Un |
| GRID CONNECTION FORM | 3L+N+PE | 3L+N+PE |
| RATED INPUT / OUTPUT GRID FREQUENCY | 50Hz/45-55Hz, 60Hz/55-65Hz | 50Hz/45-55Hz, 60Hz/55-65Hz |
| POWER FACTOR ADJUSTMENT RANGE | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging |
| TOTAL CURRENT HARMONIC DISTORTION (THDi) | <3% (of nominal power) | <3% (of nominal power) |
| DC INJECTION CURRENT | <0.5% ln | <0.5% ln |
EFFICIENCY |
| SUNSYNK-20KSG01HP3-EU-AM2 | SUNSYNK-25KSG01HP3-EU-AM2 | |
| MAX. EFFICIENCY | 97.60% | 97.60% |
| EURO EFFICIENCY | 97.00% | 97.00% |
| MPPT EFFICIENCY | >99.00% | >99.00% |
COMMUNICATION |
| SUNSYNK-20KSG01HP3-EU-AM2 | SUNSYNK-25KSG01HP3-EU-AM2 | |
| COMMUNICATION INTERFACE | RS485/RS232/CAN | RS485/RS232/CAN |
| MONITOR MODE | GPRS/WIFI/Bluetooth/4G/LAN(optional) | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
PROTECTION |
| SUNSYNK-20KSG01HP3-EU-AM2 | SUNSYNK-25KSG01HP3-EU-AM2 | |
| INTEGRATED | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring, Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring, Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level |
| SURGE PROTECTION LEVEL | TYPE II (DC), TYPE II (AC) | TYPE II (DC), TYPE II (AC) |
CERTIFICATIONS AND STANDARDS |
| SUNSYNK-20KSG01HP3-EU-AM2 | SUNSYNK-25KSG01HP3-EU-AM2 | |
| GRID CONNECTION STANDARD | EN 50549-1, AS-NZS 4777.2, NRS 097-2-1; Additional connections available upon request | EN 50549-1, AS-NZS 4777.2, NRS 097-2-1; Additional connections available upon request |
| EMC / SAFETY STANDARDS | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
GENERAL DATA |
| SUNSYNK-20KSG01HP3-EU-AM2 | SUNSYNK-25KSG01HP3-EU-AM2 | |
| OPERATING TEMPERATURE RANGE | -40 to +60ºC, >45ºC Derating | -40 to +60ºC, >45ºC Derating |
| PERMISSABLE AMBIENT HUMIDITY | 0~100% | 0~100% |
| PERMISSABLE ALTITUDE | 2000m | 2000m |
| NOISE | <55 dB | <55 dB |
| INGRESS PROTECTION (IP) | IP65 | IP65 |
| INVERTER TOPOLOGY | Non-Isolated | Non-Isolated |
| OVER VOLTAGE CATEGORY | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) |
| SIZE (W x H x D) | 408 x 638 x 237mm | 408 x 638 x 237mm |
| WEIGHT | 30.5kg | 30.5kg |
| WARRANTY | 5/10 years (with battery) | 5/10 years (with battery) |
| TYPE OF COOLING | Intelligent Cooling | Intelligent Cooling |
