Product overview

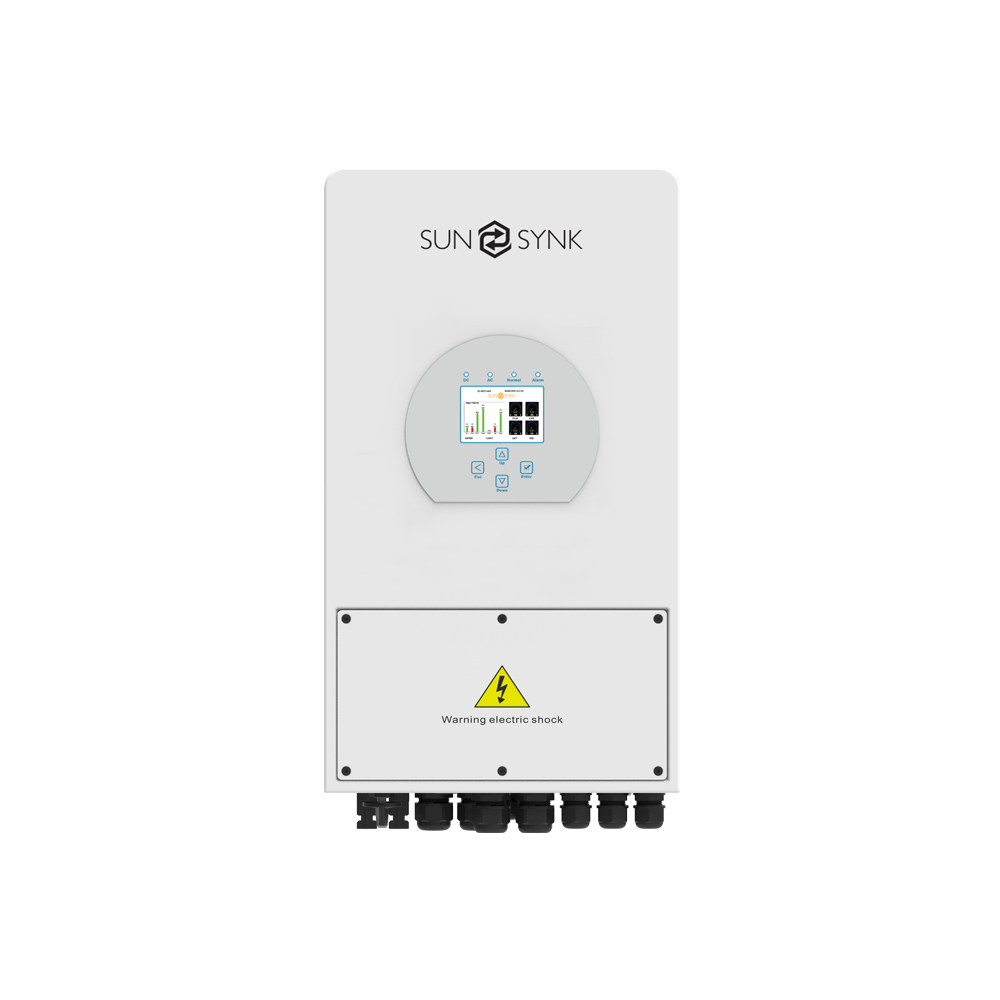

Sunsynk 5.5kW Single-Phase Hybrid Inverter
The Sunsynk 5.5kW Hybrid Inverter (SUNSYNK-5K-SG03LP1) is a versatile, all-in-one power management solution suitable for numerous applications. These include marine use (vessel power management), power shedding in homes, offices and factories, UPS systems, construction sites, military facilities, telecommunications, and remote off-grid locations utilising solar or wind energy. By combining an inverter, solar charger and battery charger into a single, compact system, the Sunsynk 5.5kW Single-Phase Hybrid Inverter allows efficient energy control from solar panels, batteries, the electricity grid, generators, or wind turbines. This provides a continuous and dependable power supply.
| Part Number |
Max. DC Input Power |
Max. AC Output Power |
| SUNSYNK-5K-SG03LP1 |
6500W |
5500W |
Key Features & Benefits
- Easy-to-use LCD display with intuitive controls, real-time power flow visualisation, and support for Wi-Fi or GSM monitoring
- Smart settable 3-stage MPPT charging maximises solar efficiency and optimises battery performance
- Start with UPS backup, grid-tied solar or a full hybrid system with batteries and panels. Expand anytime as energy needs grow.
- Fully programmable controller with adjustable supply priority (battery or grid), multiple operation modes (on-grid / off-grid / UPS), and configurable charging settings
- Works with grid supply, generators and wind turbines. 220V single-phase pure sine-wave output ensures smooth appliance operation.
- Supports parallel and multi-inverter configurations for scalable energy systems
- Enables efficient self-use of solar energy with optional grid export
- Overload, over-temperature, and short-circuit protection. Smart battery charger design extends battery life.
- Auxiliary load output, auto restart on AC recovery, and auto earth bond for enhanced safety and flexibility
- Ideal for marine (vessel power management), power shedding (home, office and factory), UPS systems, building sites, military environments, telecommunications, and remote locations with solar and wind generation
Why Choose Sunsynk 5.5kW Hybrid Inverters?
The Sunsynk 5.5kW Hybrid Inverter offers smart and adaptable energy management for both residential and commercial applications. Whether operating as a UPS backup system, a grid-connected solar setup or a fully independent off-grid solution, this 5.5kW Hybrid Inverter adjusts to your specific requirements. By seamlessly combining multiple power sources (such as solar panels, batteries, the grid, generators and wind), it helps lower electricity expenses while maintaining an uninterrupted power supply. Compact, scalable and straightforward to install, the Sunsynk 5.5kW provides a dependable all-in-one energy solution.
For Additional Information on the Sunsynk 5.5kW Single-Phase Hybrid Inverter (SUNSYNK-5K-SG03LP1), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
