Product overview

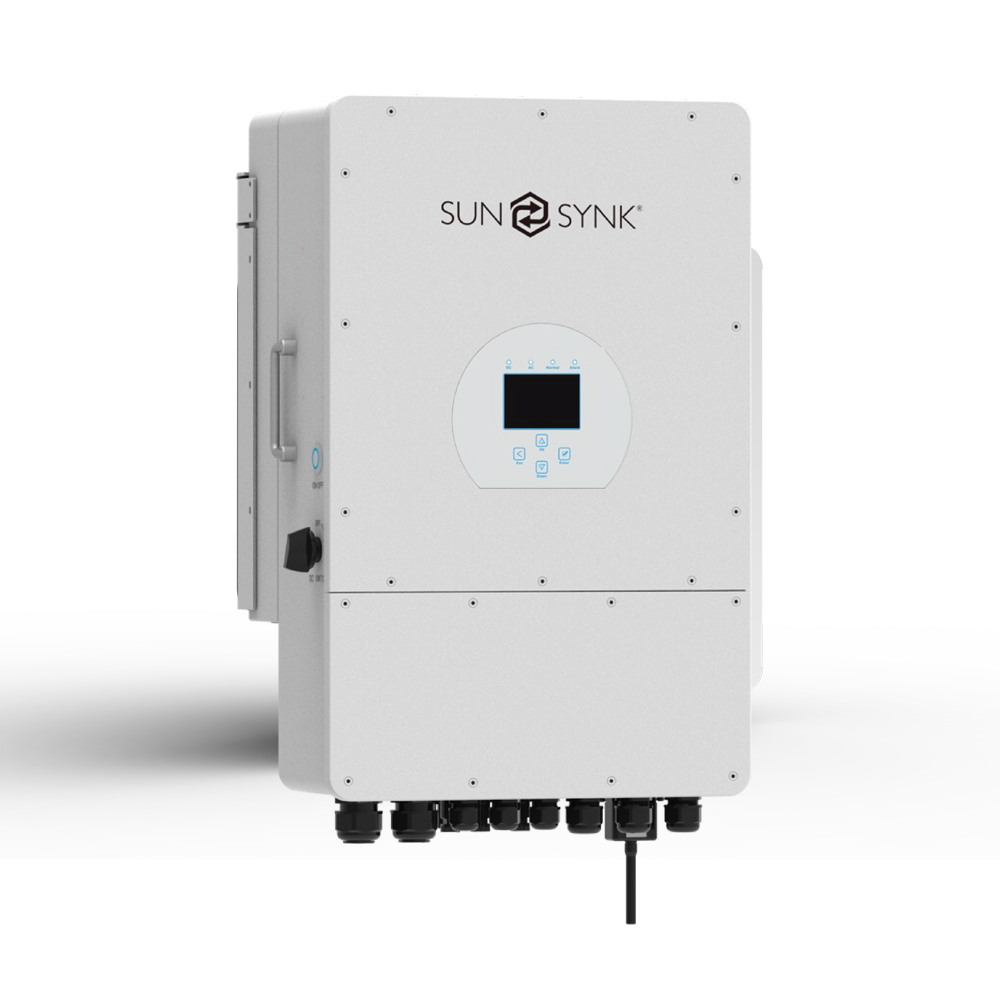

Sunsynk 8kW Three-Phase Hybrid Inverter
The Sunsynk 8kW Hybrid Inverter (SYNK-8K-SG04LP3) is a high-efficiency, multifunctional power management solution designed for various applications. This includes marine (vessel power management), power shedding (home, office and factory), UPS systems, building sites, telecommunications, and remote locations using solar and wind generation. As a Sunsynk 8kW Three-Phase system, it is engineered for three-phase grid environments, enabling precise control of energy flow from solar panels, batteries, the grid and generators. This advanced 8kW Hybrid Inverter delivers reliable, continuous power while optimising energy usage across all connected loads.
A key advantage is its intelligent phase load balancing. Even with uneven distribution (e.g. 20% / 20% / 60%), it maintains perfect phase rotation. What you get is performance not typically found in comparable 8kW Inverter systems.
| Part Number |
Max. DC Input Power |
Max. AC Output Power |
| SYNK-8K-SG04LP3 |
10400W |
8800W |
Key Features & Benefits
- Three-Phase Load Balancing: Stable output with advanced phase balancing, even under uneven load distribution
- Interactive LCD Display: Clear interface with real-time power flow and user-configurable settings
- Remote Monitoring: RS485 Wi-Fi interface for remote system control and monitoring
- Advanced MPPT Charging: Built-in MPPT with smart 3-stage charging for optimal solar and battery performance
- Flexible Integration: Supports grid, generator and wind inputs. DC and AC coupling for retrofitting existing systems.
- High Power Capability: Up to 190A charge/discharge current
- Scalable Design: Parallel operation supports up to 16 inverters
- Wide Compatibility: 230V/400V three-phase pure sine-wave output. Powers single- and three-phase loads.
- Fully Programmable: Adjustable supply priority, multiple modes (on-grid / off-grid / UPS), and configurable charging
- Enhanced Safety: Overload, over-temperature, and short-circuit protection with isolation transformer
- Energy Control: Self-consumption optimisation with grid feed-in and export limiting
- Auxiliary Features: Auxiliary load output, auto restart on AC recovery, and six configurable charge/discharge periods
- Versatile Applications: Suitable for marine, power shedding, UPS, off-grid, construction, and telecom use
Why Choose Sunsynk 8kW Three-Phase Hybrid Inverters?
The Sunsynk 8kW Hybrid Inverter provides intelligent, high-performance energy management for residential, commercial and industrial three-phase systems. It integrates solar panels, batteries, grid power, generators and wind to reduce costs while ensuring stable, uninterrupted power. With unique phase balancing, scalable parallel capability, and flexible configuration, this compact, robust and easy-to-install inverter delivers reliable, modern energy system performance.
For Additional Information on the Sunsynk 8kW Three-Phase Hybrid Inverter (SYNK-8K-SG04LP3), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
