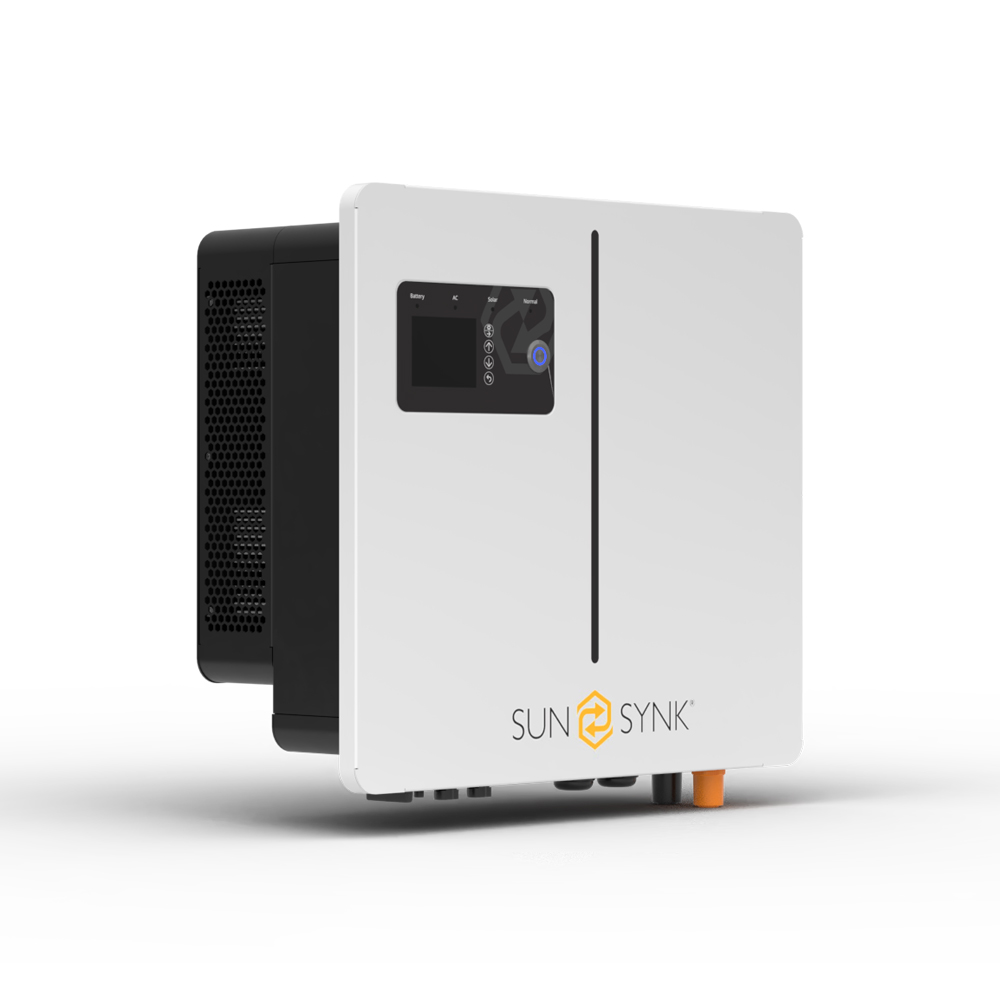

Sunsynk LP 6kW IP65 Single-Phase Hybrid Inverters (SM6.0kWLLL65)
Product overview
Sunsynk LP 6kW IP65 Single-Phase Hybrid Inverters (SM6.0kWLLL65)
The Sunsynk LP 6kW Hybrid Inverter (SM6.0kWLLL65) is a compact, multifunctional power management solution engineered for residential, light-commercial and off-grid applications. This includes power shedding, UPS systems, remote locations, building sites, and telecommunications. This LP 6kW IP65-rated unit integrates an inverter, solar charger and battery charger into a single efficient and reliable system. This optimises energy flow from solar panels, the grid and generators while ensuring an uninterrupted power supply. The Ingress Protection (IP) Rating, IP65, indicates that the inverter’s enclosure is dust tight and watertight against light pressure water spray. This makes it suitable for challenging indoor or outdoor environments.
| Part Number | Max. DC Input Power | Max. Output Power |
| SM6.0kWLLL65 / SM6.0kWPLL65 | 9000W | 6000W |
Key Features & Benefits
- 3.5” high-resolution LCD display with intuitive interface, real-time power-flow diagrams, and wide viewing angles
- Built-in MPPT trackers with smart settable 3-stage MPPT charging for optimised battery performance
- Fully programmable controller: Set supply priority for battery or grid, and configure multiple operation modes (on-grid / off-grid / UPS)
- Compatible with standard electrical grids, 230V single-phase, and pure sine-wave output for smooth appliance operation
- Overload, over-temperature, and short-circuit protection. Smart battery charger design enhances battery longevity.
- Limiting function prevents excess power overflow to the grid for safe and efficient operation
- Wi-Fi or GSM monitoring for remote energy management
- True plug-and-play design simplifies installation and commissioning
- Fully compatible with Sunsynk low-voltage battery range and Sunsynk Klik for enhanced system integration
- Ideal for homes, offices, factories (power shedding), UPS systems, remote/off-grid locations, construction sites, and telecommunications backup power
Box Contents
- LP 6kW IP65 Inverter (main unit)
- Screw pack
- CT Coil (2 pin AERO – female connector)
- 2 x MC4 connectors
- Wall mounting bracket
- Data logger (Sunsynk Wi-Fi)
- 1 x 3-pin AC Load connector (female)
- 1 x 3-pin AC Grid connector (male)
- 2 x Battery connectors
Why Choose Sunsynk LP 6kW Hybrid Inverters?
The Sunsynk SM6.0kWLLL65 provides next-generation energy management with IP65-rated protection for demanding environments. Its integrated inverter, solar charger and battery charger optimise energy efficiency, reduce electricity costs and maintain an uninterrupted power supply. Perfect for residential, light-commercial and off-grid applications, this 6kW IP65 inverter delivers reliability, safety and easy installation in a compact, durable design.
For Additional Information on Sunsynk LP 6kW IP65 Single-Phase Hybrid Inverters (SM6.0kWLLL65), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
