Wibe Group KHZPV Reinforced Heavy Duty Cable Ladders

Product overview

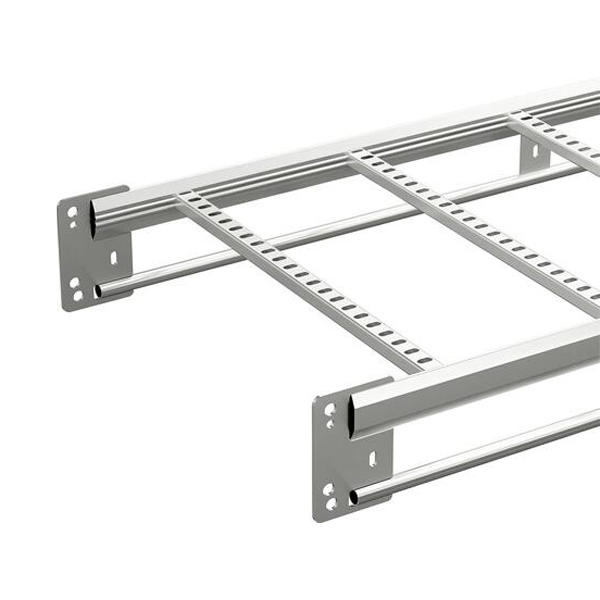

Wibe Group KHZPV Reinforced Heavy Duty Cable Ladders

Wibe Group KHZPV Heavy Duty Cable Ladders combine high load capacity with long support spans. The reinforced KHZPV features perforated rungs for secure and flexible cable fixation, while its robust construction provides reliable support across spans of up to 9 m. The Wibe KHZPV is a practical industrial cable ladder for applications where heavy cable loads, long spans and durability are essential.

Lengths: 6 m
Widths: 200–1000 mm
Safe Working Load: 150 kg/m at 4 m span; 30 kg/m at 9 m span
Corrosion Classes: C4 (High), C5 (Very High), CX (Extremely High)

Wibe Group KHZPV – Applications

KHZPV Ladders are designed for demanding cable management applications where high load capacity and long support spans are important:

• Industry – Heavy-duty cable support for demanding industrial environments
• Long Span Installations – These reinforced cable ladders span up to 9 m while supporting substantial cable loads

Corrosion Classes – Compatible Cable Ladder Systems

Wibe Group KHZPV Ladders are suitable for environments ranging from high levels of humidity and pollution to highly aggressive industrial and offshore conditions.

• C4 – High: Chemical plants, industrial areas, coastal areas, swimming pools, farms and dockyards
• C5 – Very High: Areas with with high humidity, condensation and aggressive atmospheres, including chemical and heavy industries, tunnels, swimming pools and dockyards
• CX – Extremely High: Areas with with high salinity, condensation and aggressive atmospheres, including heavy industry, coastal / offshore areas and water treatment plants

C4 solutions use galvanised steel, while C5 and CX options are available in stainless steel, including AISI 304 and AISI 316L respectively.

Wibe KHZ – Key Features & Benefits

• High load capacity for demanding cable installations
• Reinforced construction for long support spans
• Perforated rungs provide easy and flexible cable fixation
• Robust bolted coupling provides secure connections
• Designed for spans of up to 9 m
• Heavy-duty construction for demanding industrial applications
• Hexagonal side profiles provide high strength while maintaining a low, space-saving design
• Long support spans can reduce the number of brackets required, helping save installation time
• Excellent corrosion resistance with options for C4, C5 and CX environments
• 6 m lengths provide efficient coverage for larger installations
• 200–1000 mm widths accommodate a wide range of cable quantities
• Safe working load of 150 kg/m at 4 m span
• Safe working load of 30 kg/m at 9 m span
• EPD available

For Additional Information on Wibe Group KHZPV Reinforced Heavy Duty Cable Ladders, please refer to the Technical Data Table or PDF files below.

*Technical Data subject to change without notice.
