Wibe Group MultiFlex Support System

Product overview

Wibe Group MultiFlex Support System

Wibe Group Mita Flex MultiFlex Support System is a versatile and highly durable solution for supporting heavy cables in harsh and corrosive environments. Manufactured in high-performance FRP/GRP (Glass Fibre Reinforced Polymer), the MultiFlex Support System delivers long-term corrosion resistance, UV stability and chemical durability. Modular by design, it lets you adjust and configure the framework exactly how you need, making cable installations safe, reliable and easy — even in the toughest environments.

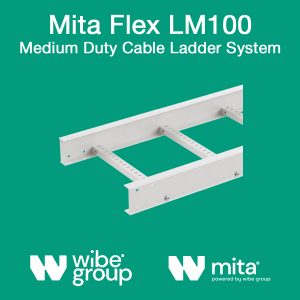

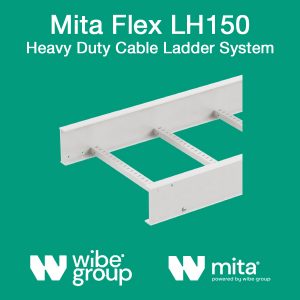

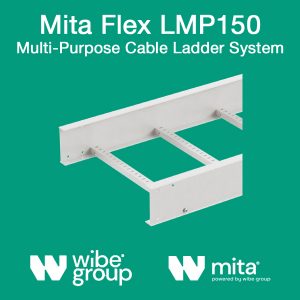

Part Numbers (Cable Ladders): LM100, LMP150, LH150.

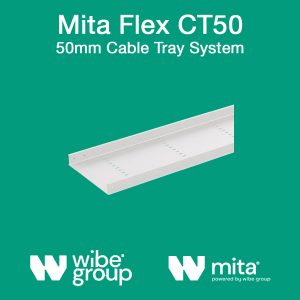

Part Numbers (Cable Trays): CT50, CT80.

Wibe Group MultiFlex FRP/GRP – Applications

This MultiFlex FRP/GRP Cable System is ideal for installations in corrosive, outdoor and high-demand environments, including:

• Offshore Wind, Oil & Gas and Marine – Perfect for heavy HV cabling on oil rigs and offshore wind farms, offering long-term resistance against saltwater and harsh weather
• Infrastructure – Designed for tunnels, bridges and railway projects, where polluted air or moisture can create highly corrosive conditions
• Agriculture and Fish Farming – Resistant to chemicals used in cleaning stables and fish farms, outperforming even stainless steel in durability
• Heavy (Chemical) Industry – Water treatment plants, sulphuric acid plants and petrochemical facilities benefit from excellent chemical resistance with polyester (PC1) or Vinylester (VE) resin options. Anti-static (AS) resin variants are available for explosive environments.

Key Features & Benefits

• Highly corrosion-resistant FRP/GRP system, ideal for aggressive chemical, marine and industrial environments
• UV-stable material ensures a long service life for outdoor applications
• Fire-resistant, halogen-free and safe for enclosed areas, with low thermal propagation and self-extinguishing material
• Easy handling and installation with high load capacity
• The MultiFlex Support System adjusts longitudinally and angularly for precise cable cleat and bracket placement
• Supports custom configurations with ladders, trays, sleeves and angle brackets
• Four resin options, including Standard polyester (PC1), Vinylester (VE), anti-static (AS), and specialised resins for fire or chemical resistance
• Requires minimal upkeep in highly demanding environments
• Easy to cut and drill, the FRP/GRP material allows on-site modification without compromising strength

Wibe Group Mita Flex MultiFlex Support System

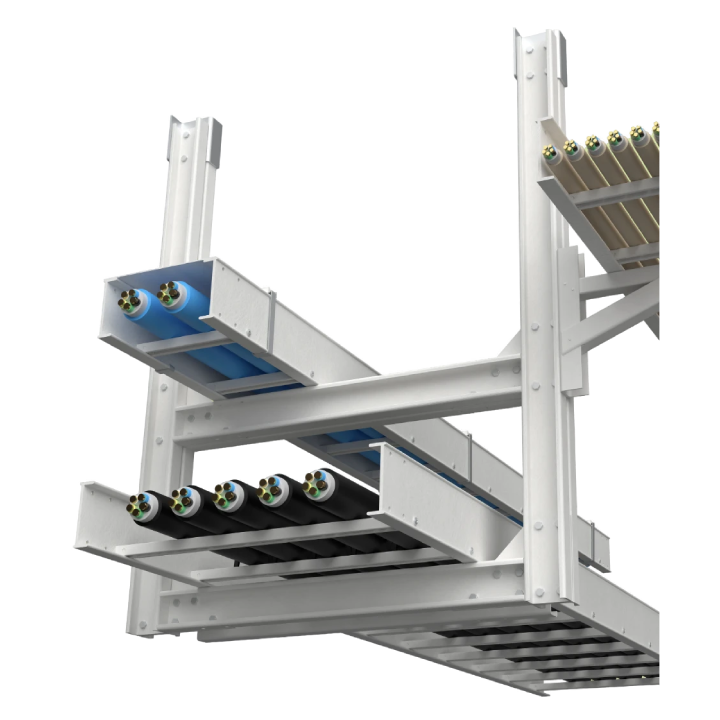

The MultiFlex GRP system provides full flexibility during installation, allowing you to build lightweight yet robust frameworks. The channel sleeves allow for secure mounting of ladders, trays and accessories with full adjustability in every direction.

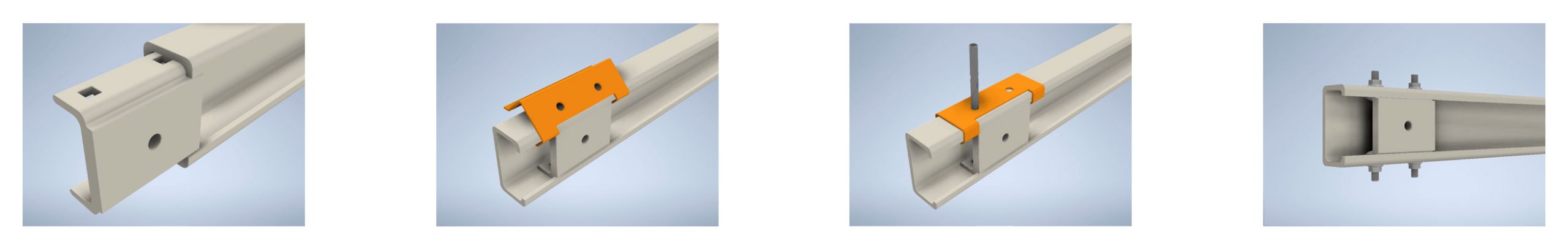

Installation Process:

1. Insert the sleeve into the channel

2. Position the sleeve and apply the drill jig

3. Drill required holes (easy in GRP/FRP material)

4. Insert bolts and tighten nuts. The sleeve is now ready to mount brackets, cleats, or other components.

FRP/GRP Cable Ladders

FRP/GRP Cable Trays

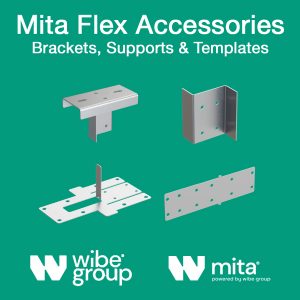

Extras

For Additional Information on the Wibe Group Mita Flex MultiFlex Support System, please consult the Technical Data Table or PDF Files below.

*Technical Data subject to change without notice.
