Wibe Group Stago Fibre-Optic Duct System for Data Centres

The Wibe Group Stago Fibre-Optic Duct (FOD) is a dedicated cable containment system for data centres and sensitive fibre-optic cabling. Manufactured from robust steel, the closed duct provides high load capacity, excellent cable protection and an EMC-friendly routing system. With 3 m lengths, support distances of up to 3 m and tool-free Unilock accessories, this fibre-optic duct tray range enables fast installation and easy future expansion.

Lengths: 3 m
Widths: 100, 200 and 300 mm
Heights: 60 and 110 mm
Standard Colour: RAL 1023 Yellow
Other Colours: Available on special order

Stago Fibre-Optic Duct – Applications

This range is designed for installations where reliable cable protection, organised routing and easy maintenance are essential, including:

• Data Centres – Provides dedicated routing for large volumes of sensitive fibre-optic cabling throughout the facility
• Fibre-Optic Networks – Smooth, robust steel construction protects fibre cables during installation and throughout their service life
• Sensitive Data Cabling – The closed metal system provides an EMC-friendly cable route for communication and control systems
• High-Density Installations – High load capacity and support distances of up to 3 m help accommodate extensive cable routes
• Expandable Infrastructure – Modular, tool-free accessories allow the system to adapt as data centre requirements change

Key Features & Benefits

• High load capacity with support distances of up to 3 m
• Dedicated data centre cable ducting system for fibre-optic and sensitive data cabling
• Closed metal construction provides high cable protection and an EMC-friendly routing system
• Smooth, robust design helps protect sensitive fibre-optic cables
• Rounded form pieces maintain safe cable routing at bends and changes in direction
• Tool-free Unilock accessories enable fast, straightforward installation
• Modular accessories support future expansion without unnecessary disruption
• Tool-free drop-offs can be positioned where required for flexible cable management
• Single pendant supports leave one side open for fast cable installation and maintenance
• Modular covers provide a fully enclosed system while maintaining accessibility
• Clip-on patch panels provide a space-saving connection solution for UTP and fibre-optic cabling
• Available in all RAL colours on request
• EPD Certificate available upon request

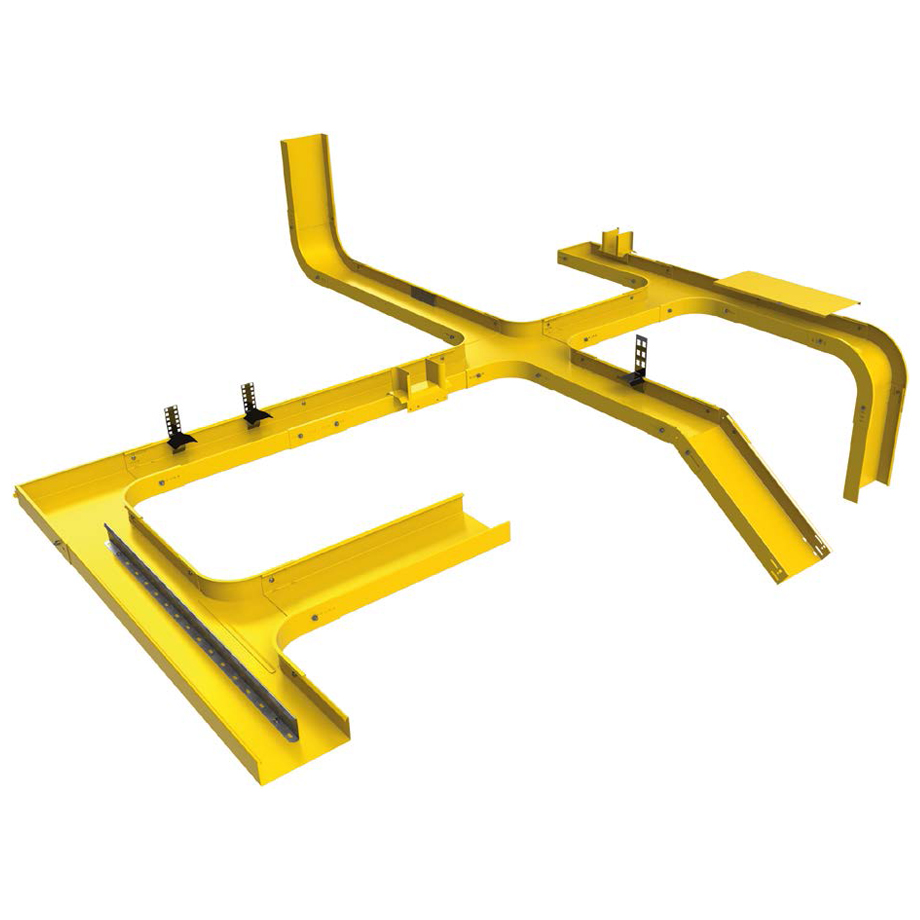

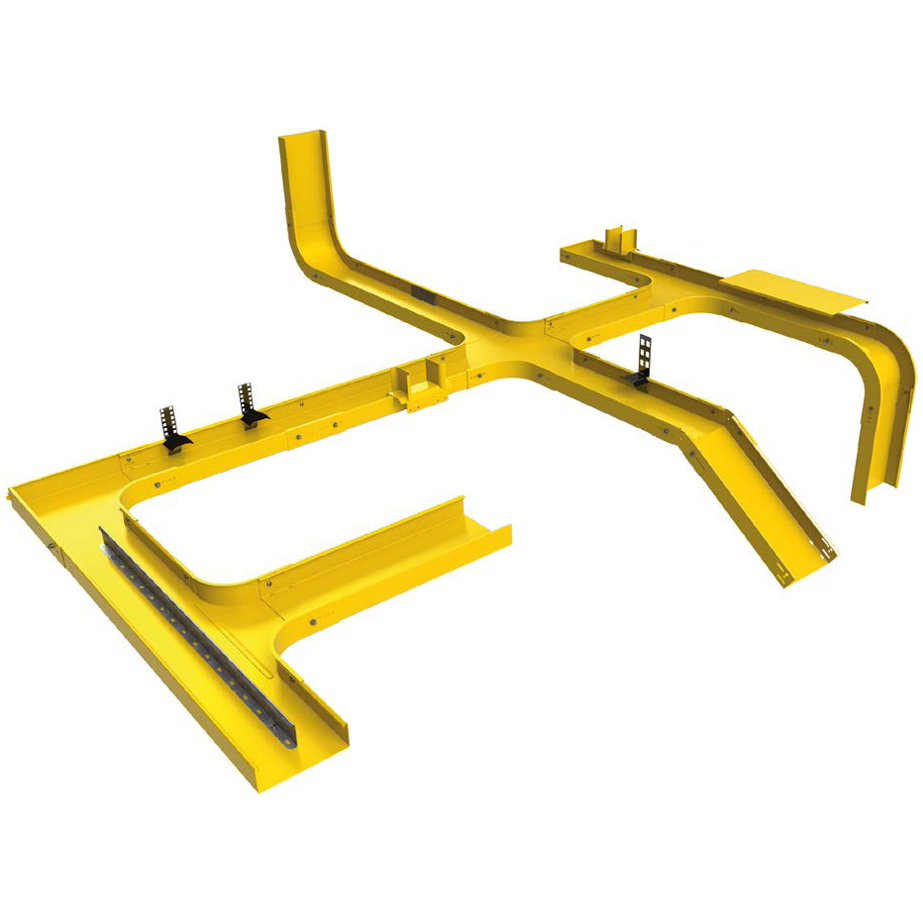

Fibre-Optic Duct (FOD) System

This cable duct tray system is a complete solution for data centre cable management. A wide range of accessories support complex configurations, including bends, risers, junctions, reducers and drop-offs.

UDF Drop-Offs provide tool-free installation while maintaining a safe bend radius for fibre-optic cables. They can slide sideways to align with cabinet and enclosure intakes and can be repositioned as the installation develops.

Dividable Tubes provide a neat route for fibre and UTP cables down to cabinets. Modular Covers are available in different sizes to fully enclose the duct while maintaining easy access for installation and maintenance.

Clip-On Patch Panels offer a compact and scalable connection point, with six keystone footprints for UTP and fibre-optic applications. Clip-on panel brackets attach without tools to help reduce installation time and disruption.

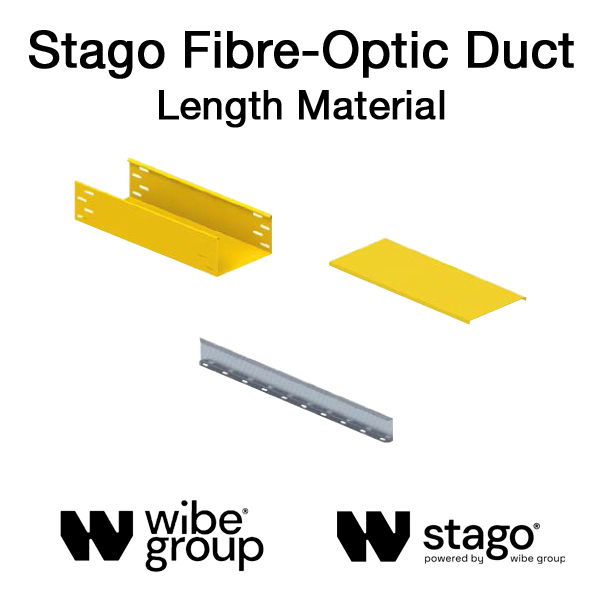

Fibre-Optic Duct

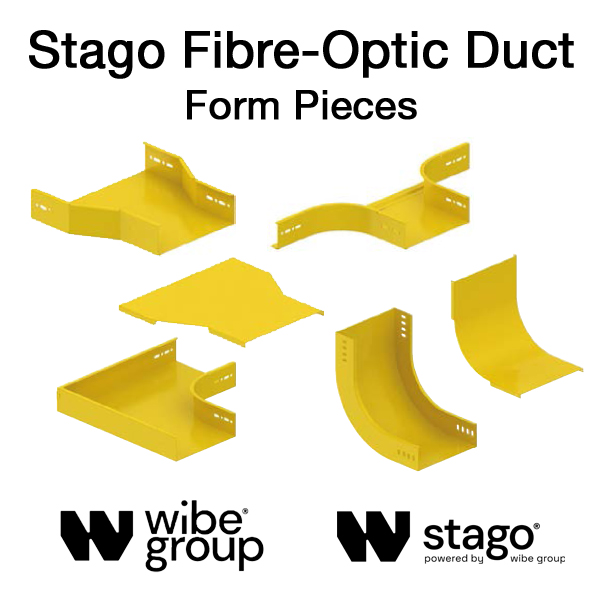

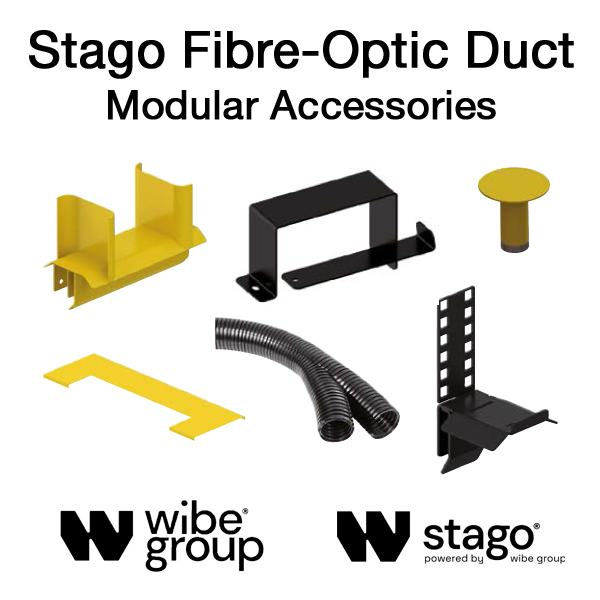

Form Pieces & Modular Accessories

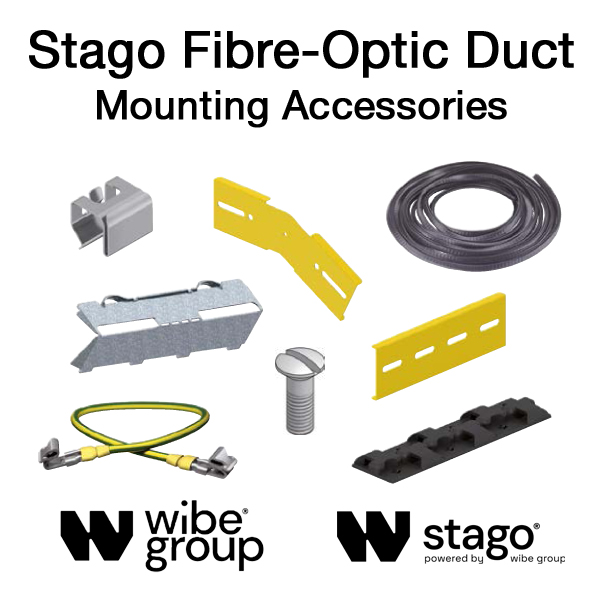

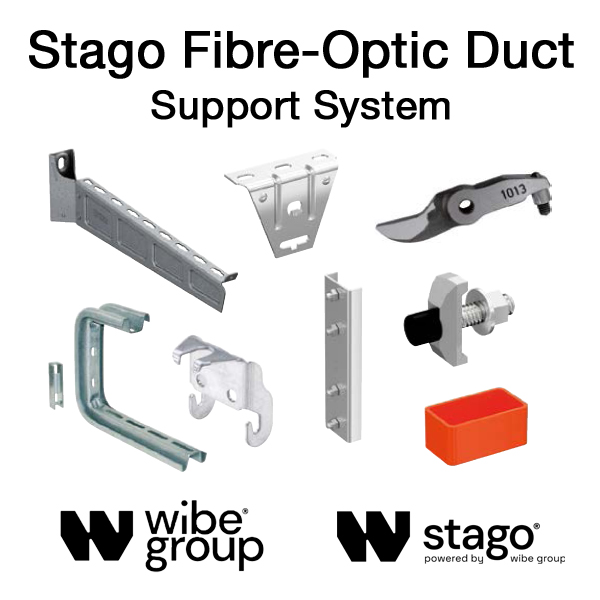

Mounting Accessories & Support System

For Additional Information on the Wibe Group Stago Fibre-Optic Cable Duct System, please refer to the Technical Data Table or PDF files below.

*Technical Data subject to change without notice.
