Wibe Group Stago KB184 Steel Cable Tray System
Product overview
Wibe Group Stago KB184 Steel Cable Tray System

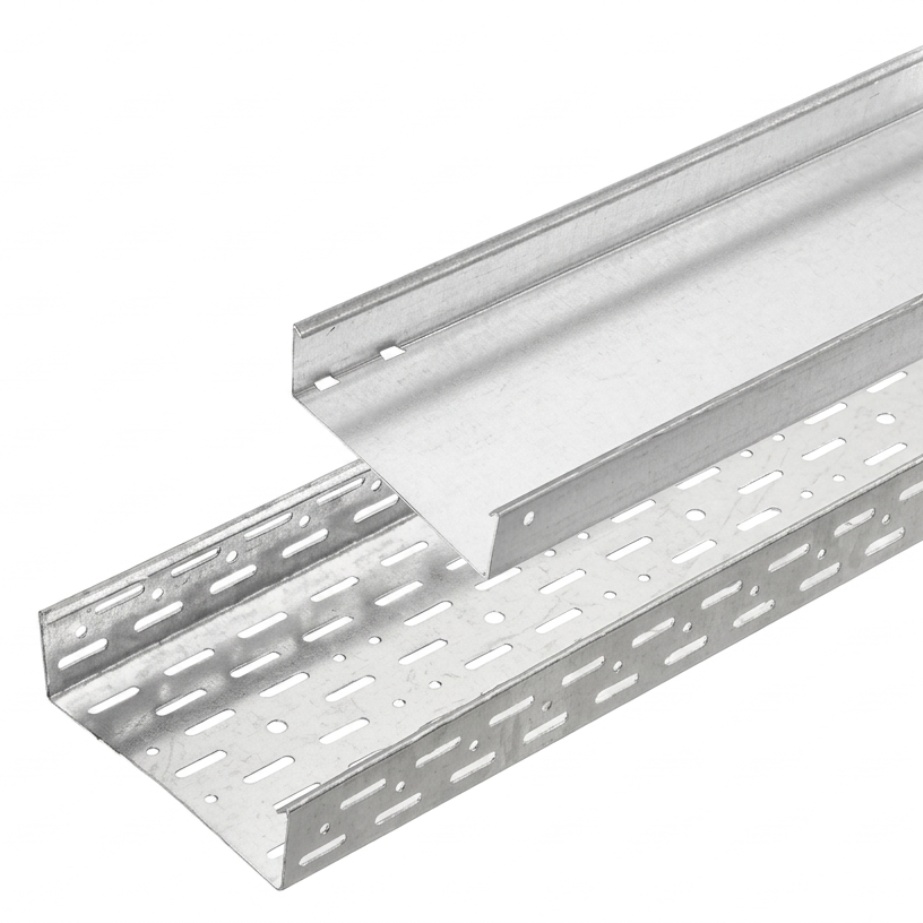

The Wibe Group Stago KB184 Steel Cable Tray System is a strong and durable cable containment solution for commercial buildings and light to medium-duty industrial environments. Available in perforated and unperforated designs, the KB184 system offers high load capacity, multiple heights / thicknesses, and excellent corrosion resistance for standard building installations and industrial applications. Tool-free assembly and Unilock accessories enable fast and efficient installation too.
Lengths: 3 m
Widths: 100–600 mm
Heights: 60 and 110 mm
Stago KB184 Cable Tray System – Applications
The Wibe KB184 Cable Tray System is designed for a range of commercial and industrial installations, including:
- Commercial Buildings – A strong and durable solution for standard building installations
- Light to Medium-Duty Industry – Designed to provide reliable cable support in industrial environments
- Standard Building Installations – Available in multiple heights and thicknesses to suit different installation requirements
- Perforated Installations – Perforated cable trays provide an option for applications requiring a perforated tray design
- Unperforated Installations – Unperforated trays provide an alternative for applications requiring a solid tray design
Key Features & Benefits
- High load capacity for demanding cable support requirements
- Perforated and unperforated designs available
- Multiple heights and thicknesses for different installation requirements
- Rounded form pieces help protect cables at bends and changes in direction
- Flat form pieces simplify logistics, storage and transportation
- Easy tool-free assembly helps reduce installation time
- Unilock accessories enable fast installation
- Corrosion-resistant construction provides durability
- Available in all RAL colours
- EPD Certificate available upon request
- BIM ready
For Additional Information on the Wibe Group Stago KB184 Steel Cable Tray System, please contact us or visit Wibe Group’s website via this link.
*Technical Data subject to change without notice.
