Wibe Group Stago KB284 Steel Cable Tray System
Product overview
Wibe Group Stago KB284 Steel Cable Tray System
The Wibe Group Stago KB284 Steel Cable Tray System is a durable cable containment solution for commercial buildings, visible installations and light to medium-duty industrial applications. Manufactured from pre-galvanised or Zinc+ sheet steel, the KB284 system features a reinforced base for high load capacity and a self-healing surface that provides enhanced corrosion resistance. Its screwless accessories and Unilock fast-fix system enable quick, straightforward installation.
Lengths: 3 m
Widths: 100–600 mm
Heights: 35 and 60 mm
Stago KB284 Cable Tray System – Applications
The Wibe KB284 Cable Tray System is suitable for a wide range of commercial and industrial installations, including:
- Commercial Buildings – A clean and systematic solution for routing power, data and control cables
- Light to Medium-Duty Industry – Robust steel construction provides reliable cable support in demanding environments
- Visible Installations – Powder-coated finishes in a wide range of RAL colours provide a neat appearance where the cable system remains exposed
- Tunnel Applications – These enclosed tray systems help protect cables from debris, dust, moisture, animals and other external influences
- Data and Control Cabling – The sheet metal construction provides effective EMC screening where cables need to be separated to reduce interference
Stago KB284 – Key Features & Benefits
- High load capacity with safe working loads tested in accordance with IEC 61537
- Reinforced base provides high resistance to load and reduced deflection
- Zinc+ surface treatment provides enhanced corrosion resistance with a self-healing surface
- Screwless accessories and Unilock fast-fix couplers enable quick, tool-free assembly
- Rounded form pieces help protect cables at bends and changes in direction
- Flat form pieces simplify purchasing, shipping, storage and installation

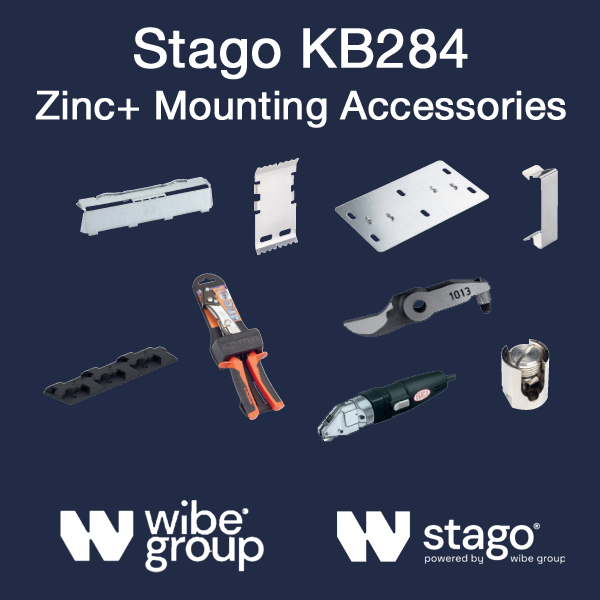

- Wide range of covers, separation walls, form pieces and mounting accessories available
- Single pendant supports with robust consoles leave one side open for fast cable installation
- Standard 3 m tray lengths, with customised lengths available up to 6.3 m
- Available in a wide range of RAL colours, including custom colours on request
- CB and VDE certified
- EPD Certificate available upon request

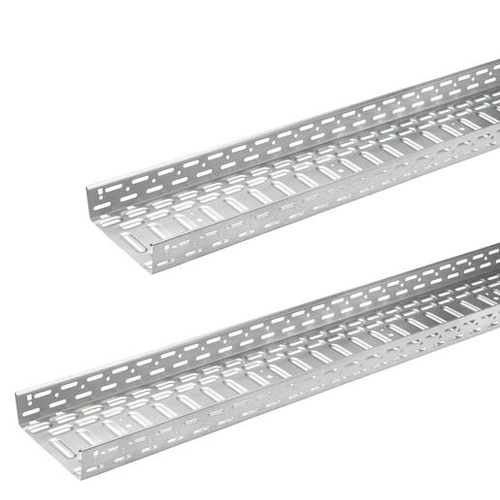

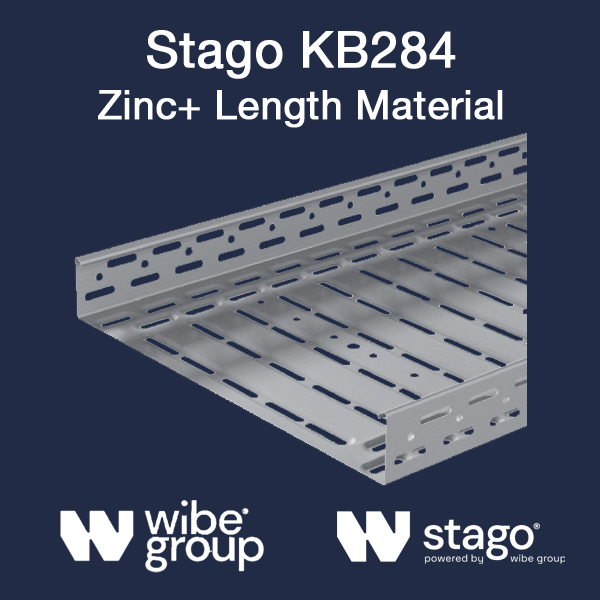

Steel Cable Trays
 |

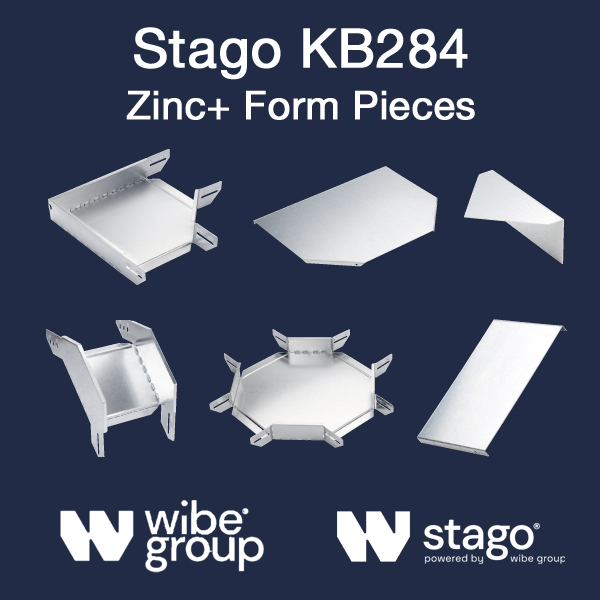

Form Pieces & Accessories
 |
 |

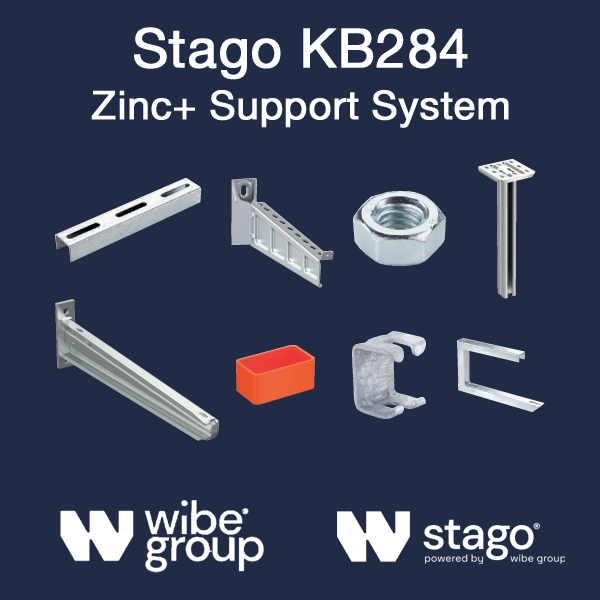

Support System
 |
For Additional Information on the Wibe Group Stago KB284 Steel Cable Tray System, please refer to the Technical Data Table or PDF files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
KB284 PERFORATED TRAYS |
| Height (mm) | Width (mm) | Thickness (mm) | Safety Working Load (1 m Span (kg/m) |
Safety Working Load (1,5 m Span) CB Certified (kg/m) |
Safety Working Load (2 m Span (kg/m) |
Safety Working Load (3 m Span (kg/m) |
| 60 | 100 | 1 | 169 | 104 | 72 | 30 |
| 60 | 150 | 1 | 181 | 104 | 72 | 30 |
| 60 | 200 | 1 | 193 | 104 | 72 | 30 |
| 60 | 250 | 1 | - | - | - | - |
| 60 | 300 | 1 | 170 | 96,5 | 72 | 30 |
| 60 | 400 | 1 | 158 | 89 | 68 | 28 |
| 60 | 500 | 1 | 123 | 81 | 64 | 25 |
| 60 | 600 | 1 | 112 | 73 | 59 | 22 |
* Side Joint — CSU76030000 (Up to 400) CSU76030100 (for 500 & 600)
