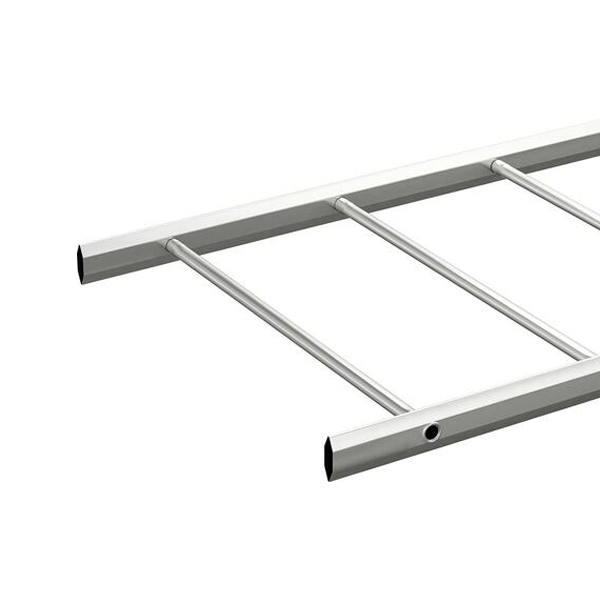

Wibe Group KHZ All-Round Classic Cable Ladders

Wibe Group KHZ Classic Cable Ladders combine high load capacity with excellent vibration resistance. They are a versatile all-round solution for demanding cable management applications. Round, riveted rungs provide greater vibration resistance than welded alternatives, making KHZ particularly suitable for wind power and other vibration-prone applications. A stainless steel AISI 316L version with closed side profiles is also available for hygienic applications.

Lengths: 3 and 6 m
Widths: 150–600 mm
Safe Working Load: 242 kg/m at 2 m span; 53 kg/m at 4 m span
Corrosion Classes: C4 (High), C5 (Very High), CX (Extremely High)

Wibe Group KHZ – Applications

KHZ Ladders are a versatile cable support solution for a wide range of commercial, industrial and specialist applications:

• Commercial Buildings – High-capacity cable support for routing power, data and control cables
• Industry – Robust cable support for demanding environments where strength, durability and vibration resistance are essential
• Food & Beverage – Stainless steel options with closed side profiles suit hygienic applications
• Data Centres – Reliable cable support where load capacity, installation speed and space are key
• Energy – High vibration resistance makes KHZ ladders particularly suitable for wind power and other energy applications

Corrosion Classes – Compatible Cable Ladder Systems

Wibe Group KHZ Ladders are suitable for environments ranging from high levels of humidity and pollution to highly aggressive industrial, coastal and offshore conditions.

• C4 – High: Chemical plants, industrial areas, coastal areas, swimming pools, farms and dockyards
• C5 – Very High: Areas with with high humidity, condensation and aggressive atmospheres, including chemical and heavy industries, tunnels, swimming pools and dockyards
• CX – Extremely High: Areas with with high salinity, condensation and aggressive atmospheres, including heavy industry, coastal / offshore areas and water treatment plants

C4 solutions use galvanised steel, while C5 and CX options are available in stainless steel, including AISI 304 and AISI 316L respectively.

Wibe KHZ – Key Features & Benefits

• High load capacity for demanding cable installations
• Round riveted rungs provide high resistance to vibration
• An all-round solution suitable for most projects
• Click mounting with smart accessories, speeding up installation
• Stainless steel model with closed side profiles for hygienic applications
• Hexagonal side profiles provide high strength with a low, space-saving design
• Long support spans can reduce the number of brackets required, helping save installation time
• 3 and 6 m lengths provide flexibility for different installation requirements
• 150–600 mm widths accommodate a wide range of cable quantities
• Safe working load of 242 kg/m at 2 m span
• Safe working load of 53 kg/m at 4 m span
• C4, C5 and CX corrosion classes for demanding environments
• EPD available

For Additional Information on Wibe Group KHZ All-Round Classic Cable Ladders, please refer to the Technical Data Table or PDF files below.

*Technical Data subject to change without notice.
