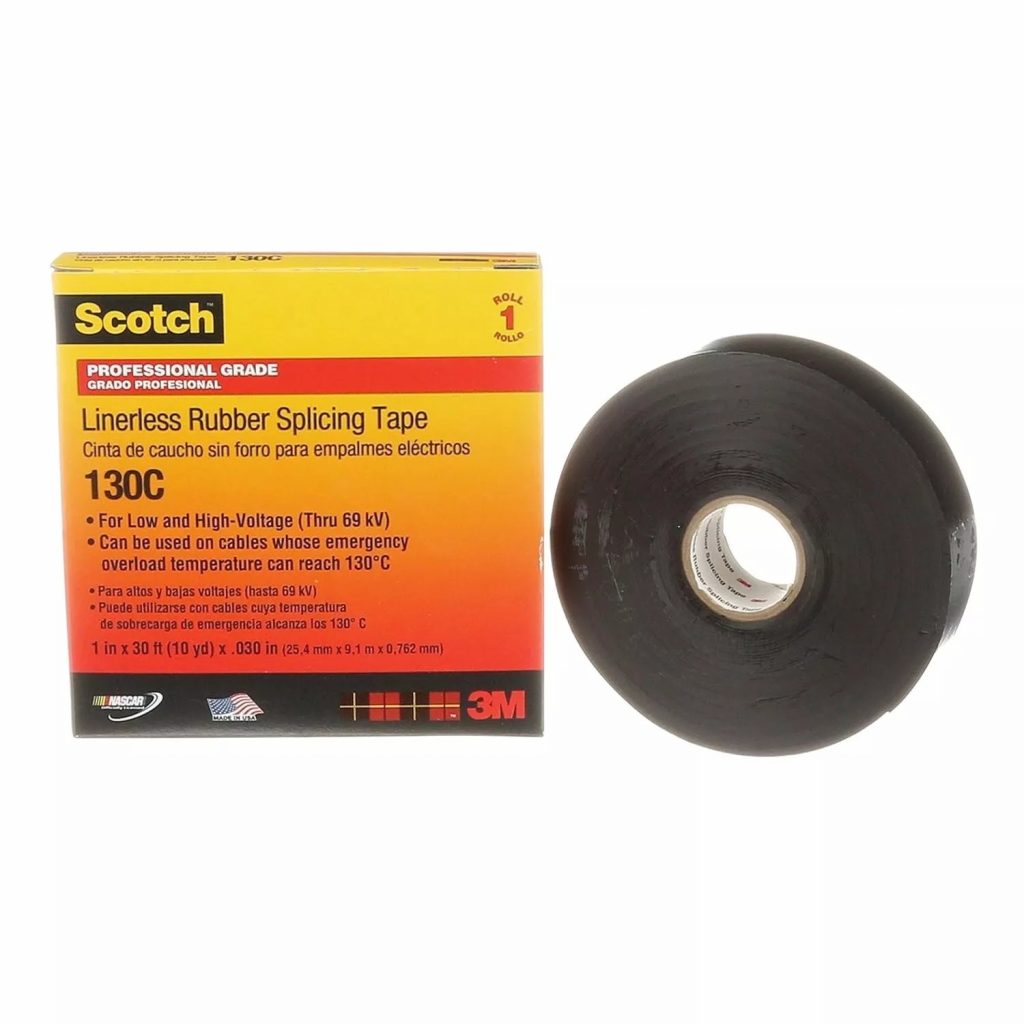

3M™ Scotch Linerless Rubber Splicing Tape 130C
Product overview
3M™ Tape 130C (7000006085, 7000006090, 7000006086, 7000006091) is a premium-grade, Linerless Rubber Splicing Tape. It’s engineered for high-voltage insulation, void-free build-ups and long-term moisture sealing. With its ethylene propylene rubber (EPR) backing and self-bonding properties, 3M Tape 130C delivers outstanding dielectric strength, stretch and conformability. This versatile Scotch Tape 130C is ideal for both indoor and outdoor use, designed to perform in harsh environments and demanding electrical applications rated up to 69 kV.
Part Numbers: 7000006085, 7000006090, 7000006086, 7000006091.
3M Scotch Linerless Rubber Splicing Tape 130C
Designed for power cable splicing, bus bar insulation and jacket repairs, 3M Scotch 130C offers exceptional electrical and mechanical protection. Its highly conformable, linerless construction ensures quick application and reliable void-free insulation – especially around irregular shapes and surfaces. The EPR rubber backing resists UV, weather and overload temperatures up to 130 °C. Whether you’re working in industrial maintenance, utility sectors or renewable energy projects, Tape 130C is the trusted solution for superior sealing and insulation in mission-critical settings.
Key Features & Benefits
- Rated for up to 69 kV high-voltage cable splicing and insulation
- Linerless design speeds up installation and reduces material waste
- Self-bonding rubber ensures void-free build-ups and superior moisture seals
- Ethylene propylene rubber backing offers excellent conformability and stretch
- Excellent dielectric strength: 750 V/mil
- Flame-retardant, UV-resistant and unaffected by degree of stretch
- Withstands operating temperatures up to 90 °C (194 °F) continuous, 130 °C overload
- RoHS 2011/65/EU and ASTM compliant
- Available widths: 19 mm (0.75 in), 25.4 mm (1 in), 38.1 mm (1.5 in), 50.8 mm (2 in)
- Supplied in 9.1 m (30 ft) rolls for convenient site use
3M Scotch 130C – Professional-Grade Insulation
From substation upgrades to cable terminations in renewable energy, Scotch 130C delivers rugged, long-lasting performance in demanding conditions. With proven moisture resistance, tensile strength and compatibility across a range of cable types, this product meets the needs of professionals in mining, utility, wind, solar, and industrial construction sectors. Whether you’re working on a 69 kV splice or protecting a critical junction, trust Linerless Rubber Splicing Tape 130C to handle the challenge.
When precision, safety and resilience matter, choose this product to safeguard your electrical systems with confidence.
For Additional Information on 3M Scotch Linerless Rubber Splicing Tape 130C (7000006085, 7000006090, 7000006086, 7000006091), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
TYPICAL PROPERTIES |
| Adhesive Type | Application/Industry | Applications | Backing (Carrier) Material | Backing (Carrier) Thickness (Imperial) | Backing (Carrier) Thickness (Metric) | Brands | Case Quantity | Dielectric Strength | Elongation at Break | Features | Insulation Resistance | Max Operating Temp (℃) | Max Operating Temp (℉) |
| Rubber | Appliance and Fixture, Commercial Construction, Industrial Construction, Maintenance and Repair Operations, Communications, Mining, Solar, Utility, Wind Power | Insulation | Ethylene Rubber | 30 mil | 0.76 mm | Scotch® | 24 Rolls, 100 Rolls | 750 V/mil | 850.0% | UV-resistant, Vulcanising, Self-sticking | >10^15 ohms | 90℃ | 194℉ |
TYPICAL PROPERTIES - CONTINUED |
| Min Operating Temp (℃) | Product Colour | Rolls per Carton | Rolls per Case | Shelf Life | Smallest Saleable Unit | Tape Grade | Tensile Strength (Imperial) | Tensile Strength (Metric) | Total Tape Thickness without Liner (Imperial) | Total Tape Thickness without Liner (Metric) | Units per Case | Voltage Rating |
| 0℃ | Black | 1 | 12, 24 | 5 Year | Roll | Professional, Premium | 250.0 | 1723 kg, 1723 Kilopascal | 30 mil | 0.76 mm | 12.0, 24.0 | 69 kV |
PHYSICAL PROPERTIES |
| Operating Temp Rating ASTM D4388 | Emergency Overload Rating ASTM D4388 | Thermal Conductivity – Nominal ASTM C518 | Fusion @ 300% Strain ASTM D4325 | Heat Resistance (7 Days @ 130°C) ASTM D4325 | Ozone Resistance ASTM D4325 | UV Resistance ASTM D4325 |
| 194°F (90°C) | 266°F (130°C) | 0.3 W/m-K | Pass | Pass | Pass | Pass |
*Notes:
ASTM D4325 Test Method - properties measured at room temperature 73°F (23°C) unless otherwise stated
ASTM D4388 Standard Specification, Type III
ASTM C518 Test Method - properties measured at room temperature 73°F (23°C) unless otherwise stated
MECHANICAL PROPERTIES |
| Thickness ASTM D4325 | Tensile Strength - Minimum ASTM D4325 | Elongation - Minimum ASTM D4325 |
| 30 +/- 3.0 mils (0.76 +/- 0.076 mm) | 250 psi (1.7 MPa) | 700% |
*Notes:
ASTM D4325 Test Method - properties measured at room temperature 73°F (23°C) unless otherwise stated
ASTM D4388 Standard Specification, Type III
ASTM C518 Test Method - properties measured at room temperature 73°F (23°C) unless otherwise stated
ELECTRICAL PROPERTIES |
| Dielectric Strength - Minimum ASTM D4325 - Standard | Dielectric Strength - Minimum ASTM D4325 - After 96 hrs @ 23°C 96% RH | Volume Resistivity - Minimum ASTM D4325 - After 96 hrs @ 23°C 50% RH | Volume Resistivity - Minimum ASTM D4325 - After 96 hrs @ 23°C 96% RH | Permittivity in Air - Maximum ASTM D4325 - After 24 hrs @ 23°C - (H2O Immersion) | Permittivity in Air - Maximum ASTM D4325 - After 24 hrs @ 70°C - (H2O Immersion) | Dissipation Factor in Air - Maximum ASTM D4325 - After 24 hrs @ 23°C - (H2O Immersion) | Dissipation Factor in Air - Maximum ASTM D4325 - After 24 hrs @ 70°C - (H2O Immersion) |
| 700 V/mil (27.6 kV/mm) | ≥90% Standard Value | 1014 ohm.cm | 1013 ohm.cm | 4.0 | 4.0 | 5% | 5% |
*Notes:
ASTM D4325 Test Method - properties measured at room temperature 73°F (23°C) unless otherwise stated
ASTM D4388 Standard Specification, Type III
ASTM C518 Test Method - properties measured at room temperature 73°F (23°C) unless otherwise stated
DIMENSIONS AND CLASSIFICATIONS |
| Overall Length (ft) | Overall Length (m) | Overall Width (in) | Overall Width (mm) |
| 30 | 9.1 | 0.75, 1, 1.5, 2 | 19, 25.4, 38.1, 50.8 |
