Product overview
3M 70 HDT (7000133168) is a high-performance, Self-Fusing Silicone Rubber Tape. It’s designed for extreme electrical insulation and protection in high-temperature, high-voltage environments. Featuring a thick silicone rubber backing, Scotch 70 HDT offers excellent arc and track resistance, making it ideal for heavy-duty industrial and utility applications. This non-adhesive, Self-Fusing Rubber Tape conforms easily to irregular shapes and fuses instantly without pressure. This ensures quick and secure application in even the most demanding conditions.
Part Number: 7000133168.

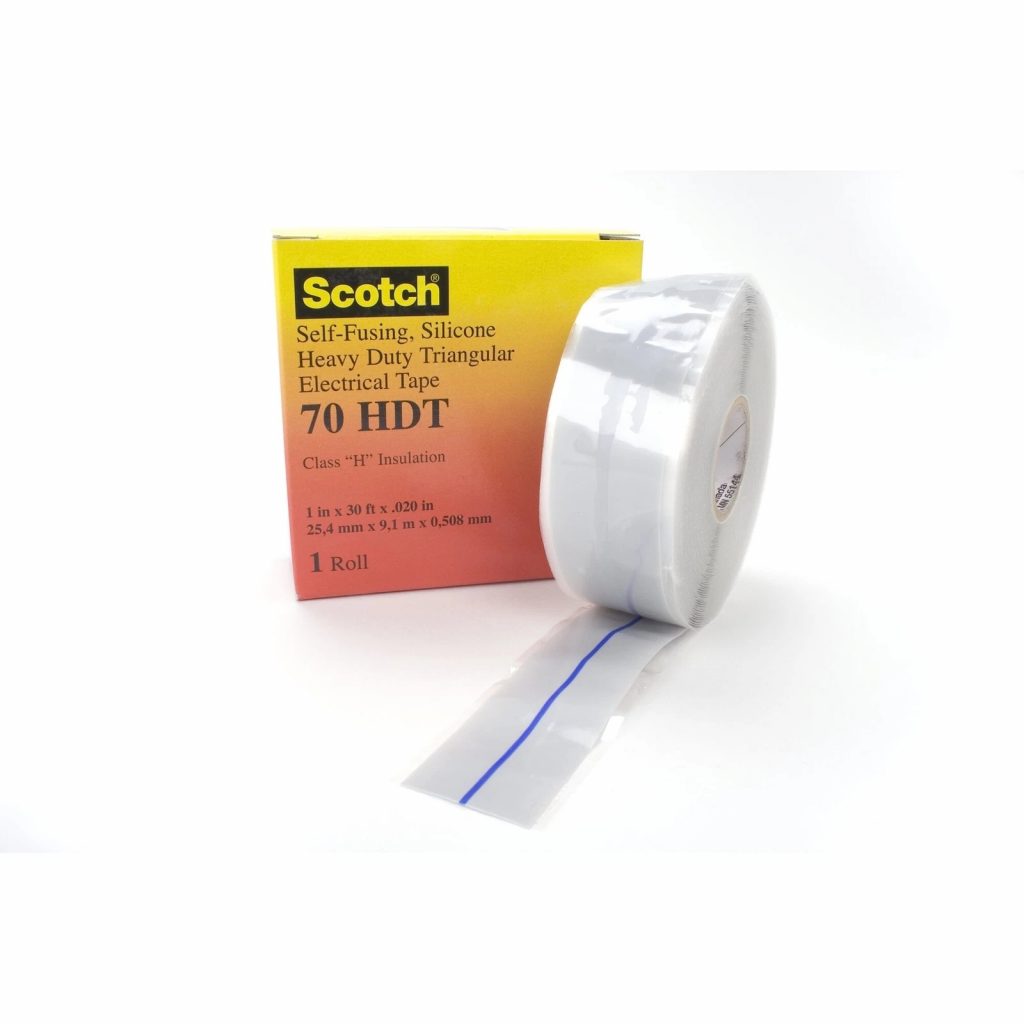

3M Scotch Self-Fusing Silicone Rubber Electrical Tape 70 HDT
Engineered for professional-grade electrical insulation, 3M Tape 70 HDT combines superior dielectric strength with high thermal endurance. Its triangular-tapered profile and integrated blue guideline enable clean, precise half-lapping, while its UV and chemical resistance enhances performance in exposed or hazardous environments. Whether you’re insulating busbars, cables or critical joints up to 35 kV, Scotch Tape 70 HDT ensures long-lasting protection under extreme stress.
Key Features & Benefits
- Excellent insulation and sealing for high voltage cables and terminations
- Silicone rubber construction with high dielectric strength (600 V/mil)
- Self-fusing design eliminates the need for pressure or adhesives
- Triangular tapered edge profile for efficient half-lapping
- Blue application guideline ensures even coverage
- Rated for up to 35 kV with high elongation and tensile strength
- Operates across extreme temperatures (0℃ to 180℃ / 0℉ to 356℉)
- UV, chemical and arc-resistant for harsh outdoor use
- Suitable for utility, industrial, wind, solar, marine and automotive sectors
- RoHS 2011/65/EU compliant
- Available in 25.4 mm (1 in) width, 9.1 m (30 ft) roll
- Supplied in individual rolls for field-ready deployment
3M Scotch 70 HDT – Arc & Thermal Insulation for Demanding Applications
From mining operations to utility substations, 3M 70 HDT provides the mechanical strength and electrical protection you need to keep systems running safely. Its instant self-amalgamation, low-temperature flexibility and resistance to tracking and arcing make it a go-to solution for insulating live components under pressure. Whether you’re wrapping busbars, sealing transformer connections or insulating in confined, high-risk areas, this product delivers exceptional results every time.
When performance, protection and precision matter, trust 3M Tape 70 HDT and its industry-proven Scotch technology to safeguard your high-voltage infrastructure.
For Additional Information on 3M Scotch Self-Fusing Silicone Rubber Electrical Tape 70 HDT (7000133168), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
