3M™ Temflex Vinyl Electrical Tape 165
Product overview
3M™ Temflex Vinyl Electrical Tape 165

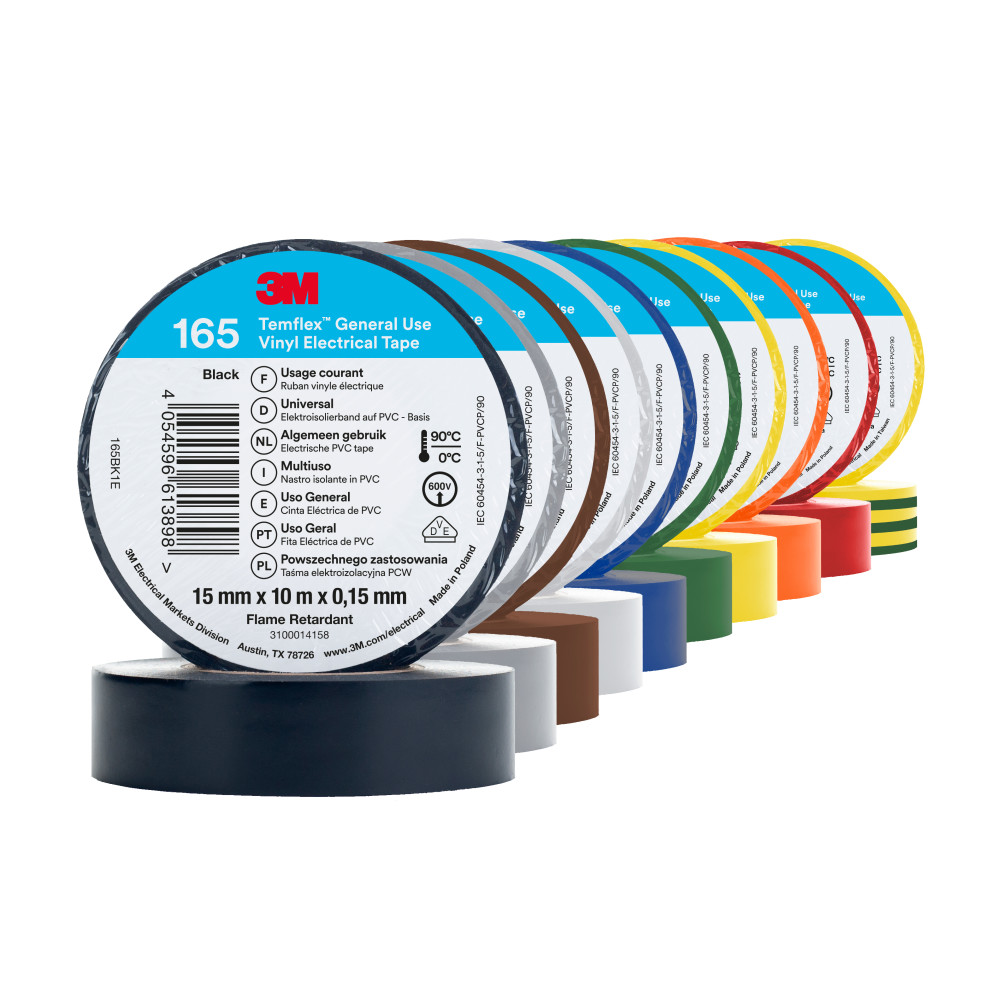

3M Temflex Vinyl Electrical Tape 165 is a professional-grade, 0.15 mm thick PVC tape designed for low-voltage insulation, cable repairs, bundling and harnessing. With excellent conformability and dielectric strength, 3M Tape 165 offers reliable protection in both indoor and outdoor environments. Manufactured using an innovative solvent-free process, Temflex 165 is flame-retardant and resists abrasion, acids, alkalis, and changing weather conditions — including UV exposure. This product is suitable for electrical applications up to 600 V. It’s also rated for continuous operation up to 90 °C.
Part Numbers: 7100319119, 7100222494, 7100222491, 7100184819, 7100184818, 7100184817, 7100184814, 7100184813, 7100184812, 7100184811, 7100184810, 7100184805, 7100184732, 7100184731, 7100184730, 7100184729, 7100184728, 7100184727, 7100184726, 7100184725, 7100184724, 7100184723.
Key Features & Benefits
- Rated up to 600 V for primary insulation, repair and cable bundling
- Provides excellent dielectric strength: 40 kV/mm
- Resists abrasion, alkalis, acids, sunlight, and moisture
- Flame-retardant and professional-grade for demanding use
- Highly conformable for easy wrapping and neat finishes
- Operating temperature range: 0 °C to 90 °C (32 °F to 194 °F)
- Solvent-free manufacturing process (excludes Yellow/Green)
- Made in Europe with VDE Certification (IEC 60454-3-1-5/F-PVCP/90)
- Available in standard electrical colour coding
- Available widths: 15 mm, 19 mm
- Available lengths: 10 m, 20.12 m, 25 m
3M Temflex 165 – Reliable, Professional-Grade Vinyl Insulation
Engineered for versatility and durability, 3M Temflex Tape 165 delivers high performance in low-voltage electrical applications. Whether you’re carrying out routine maintenance, splicing, bundling or general insulation, this general-purpose Vinyl Electrical Tape 165 is trusted by professionals across industries. With its high stretch, strong adhesion and resistance to environmental challenges, Electrical Tape 165 helps ensure secure, long-lasting protection for your systems.
From domestic setups to industrial jobsites, Temflex Tape 165 is the reliable choice for wire insulation and cable management. For indoor or outdoor use, in all seasons — choose 3M 165 to get the job done right.
For Additional Information on 3M Temflex Vinyl Electrical Tape 165 (7100319119, 7100222494, 7100222491, 7100184819, etc.) please consult the Technical Data Table or PDF Files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
TYPICAL PROPERTIES |
| Adhesive Type | Applications | Backing (Carrier) Material | Brands | Dielectric Strength | Elongation at Break | Flame Retardant | Insulation Resistance | Max Operating Temp (℃) | Max Operating Temp (°F) |
| Rubber | Insulation | PVC | Temflex™ | 40 kV/mm | 200.0% | Yes | > 10^11 ohms | 90℃ | 194°F |
TYPICAL PROPERTIES - CONTINUED |
| Min Operating Temp (℃) | Min Operating Temp (°F) | Product Colour | Shelf Life | Smallest Saleable Unit | Tape Grade | Total Tape Thickness without Liner (Imperial) | Total Tape Thickness without Liner (Metric) | Voltage Rating |
| 0℃ | 32°F | Yellow, Orange, Blue, White, Red, Brown, Grey, Green/Yellow, Green, Black, Purple, Assorted | 5 Year | Roll, Kit | General Use | 0.006 in | 0.15 mm | 600 V |
DIMENSIONS AND CLASSIFICATIONS |
| Overall Length (ft) | Overall Length (m) | Overall Width (in) | Overall Width (mm) |
| 32.8, 66, 82 | 10, 20.12, 25 | 0.59, 0.75 | 15, 19 |
