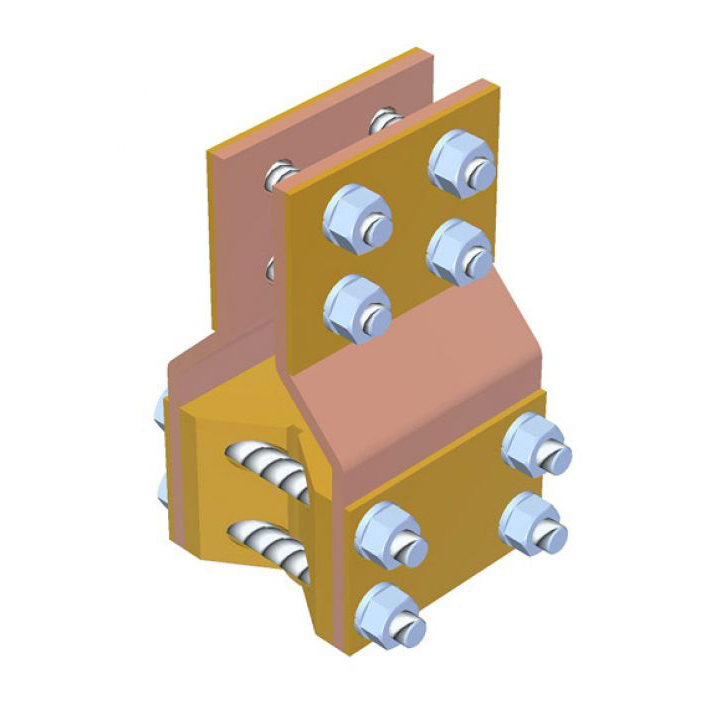

BTRAC Split Clamps for Bunched Wavecon Lugs (BLK0011, BLK0012, FLX0016, FLX0017)

Product overview

BTRAC Split Clamps for Bunched Wavecon Lugs are fixed or flexible connectors, flags and block connectors. They allow you to terminate your cable connection and can take the form of brass flags or blocks. Designed to suit the incoming cables or multiple copper laminations to allow flexibility with the incoming connection point. Manufactured to international standards or to meet specific customer requirements (modification of an existing design).
Part Numbers: BLK0011, BLK0012, FLX0016, FLX0017

Trusted by the industry, BTRAC Split Clamps are Lucy Electric and SSE-Approved. They are an essential and common product for all ICP Projects requiring secure Wavecon Cable Connections.

BTRAC Split Clamps for Bunched Wavecon Lugs – Order Information

Part No DNO Approval No Description
BLK0011 091574 Fixed Wavecon Connector for 185mmCable
BLK0012 091600 Fixed Wavecon Connector for 300mmCable
FLX0016 023698 Flexible Wavecon Connector for 185mmCable
FLX0017 023708 Flexible Wavecon Connector for 300mmCable

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Part No DNO Approval No Type of Connector 3-Core Wavecon Cable Size
BLK0011 091574 Fixed 185mm2
BLK0012 091600 Fixed 300mm2
FLX0016 023698 Flexible 185mm2
FLX0017 023708 Flexible 300mm2
