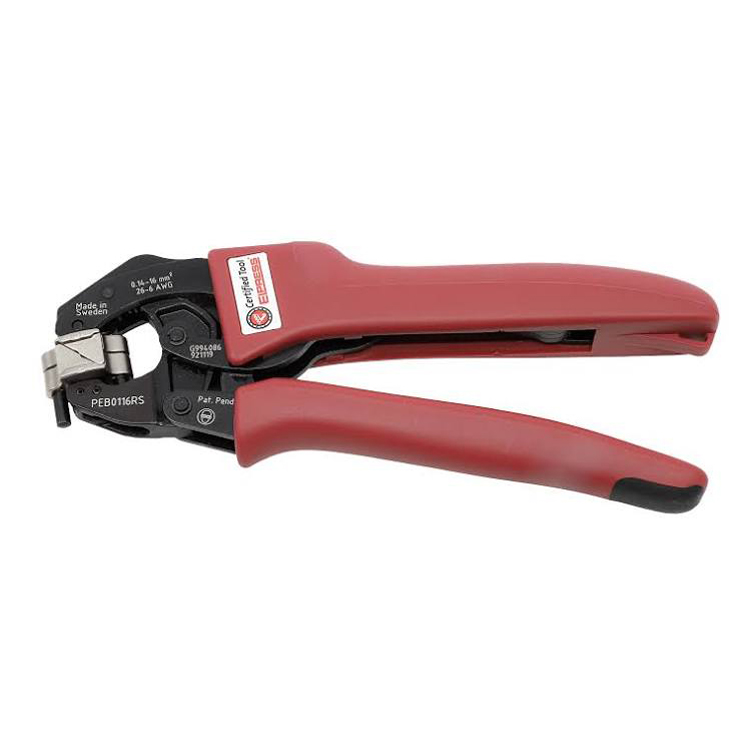

Elpress PEB0116RS Crimping Tool (0.14-16mm²)

Product overview

Elpress PEB0116RS Crimping Tool (0.14-16mm²) is a tool for end- and TWIN-end terminals, rotatable dies and square crimp. End terminals 0,14-16 mm² and TWIN-end terminals 2 x 0,5 – 2 x 6 mm².
EAN code: 7393487090545

Elpress PEB0116RS Technical Details

  • Tested and certified mechanical, self-adjusting crimping tool for end- and TWIN-end terminals with rotatable dies.
  • Rotatable dies making both side and front feed possible.
  • Square crimp for end terminals 0,14-16 mm² and TWIN-end terminals 2 x 0,5 – 2 x 6 mm².
  • Ergonomic handles, light weight, relatively low handle force and optimum handle opening for comfortable crimping.
  • Elpress PEB0116RS Crimping Tool has a compact design for easy access to wires in confined spaces.

General Information

System Elpress consists of terminals and tools, designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems. It also ensures the achievement of a secure connection through the proper handling of our products.

Elpress hydraulic crimp systems crimp from 10 to 1200 mm². The systems consist of pumps and crimp heads that can be freely combined or with complete hand-held tools, where these devices are integrated. Wide range of accessories available for crimping, pre-rounding, cutting etc. Together with the matching terminals, they form  a complete system. Both pumps and hand-held tools have, with a few exceptions, quick feed function that means crimping can begin after a few pump strokes. The systems have a built-in ratchet lock that ensures the completion of the initial crimp and thus, produces results with the best characteristics. Pumps can connect to the different crimp heads providing the option of comfortable work in difficult situations and with maximum flexibility.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Prod. Name mm2 AWG Net Weight
PEB0116RS 0.14-16 26-8 0.347 kg
