Elpress RPLT Installation Assortment Box
Product overview

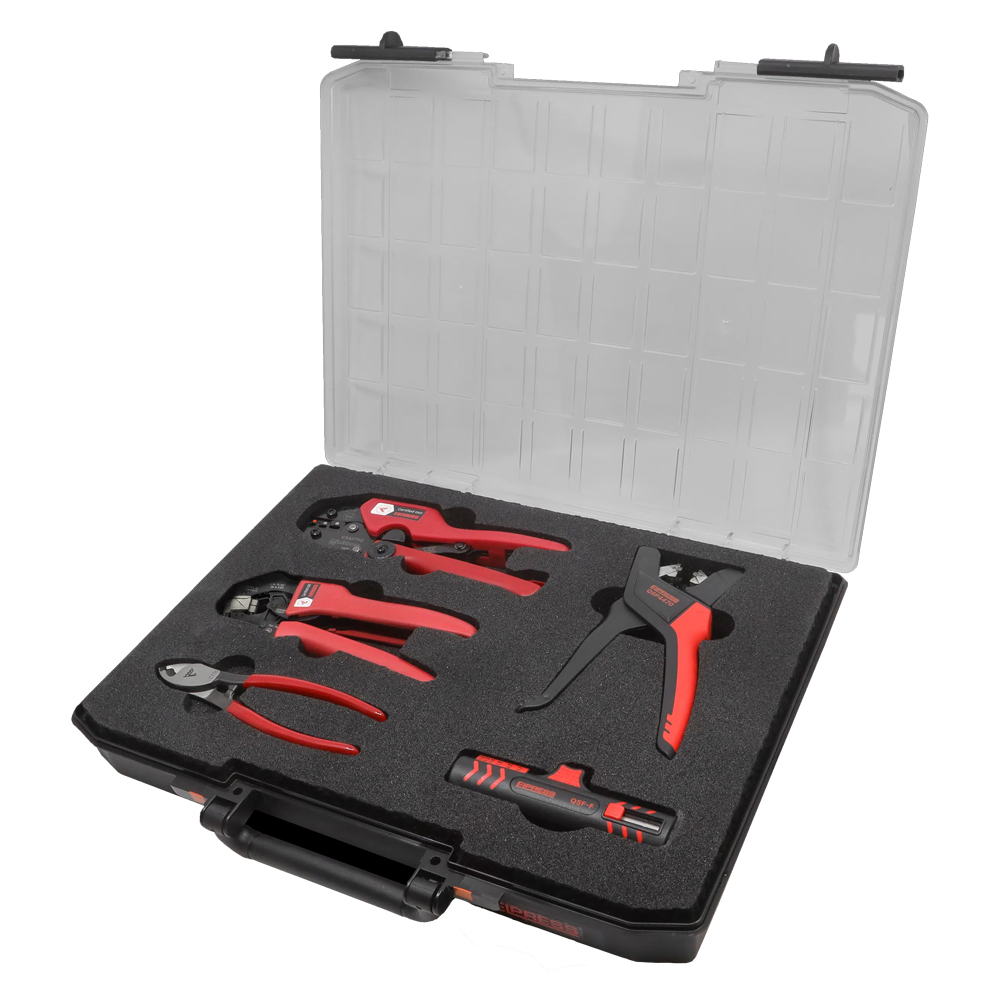

Elpress RPLT Installation Assortment Box is a complete solution featuring five carefully selected hand tools. The selection is optimised for installation, crimping, stripping, and cutting. All tools are conveniently stored in a robust assortment box, ready for professional use in the field or workshop. The box contains tested and certified Elpress GSA0760 Miniforce Crimping Tool (0.5-6mm²), Elpress CT10 Cable Cutting Tool (up to Ø 10mm), Elpress PEB0116RS Crimping Tool (0.14-16mm²), Elpress QSP4470 Automatic Cable Stripping Plier Tool and Elpress QSF-F Wire Stripping Tool.
Elpress RPLT Assortment Box is made of unbreakable plastic with polypropylene walls and polycarbonate lid.
Elpress RPLT Contents
- Elpress GSA0760 Miniforce Crimping Tool (0.5-6mm²)
- Elpress CT10 Cable Cutting Tool (up to Ø 10mm)
- Elpress PEB0116RS Crimping Tool (0.14-16mm²)
- Elpress QSP4470 Automatic Cable Stripping Plier Tool
- Elpress QSF-F Wire Stripping Tool
- Height: 415 mm
- Width: 330 mm
- Depth: 57 mm
General Information
SYSTEM ELPRESS
System Elpress consists of terminals and tools, designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems. It also ensures the achievement of a secure connection through the proper handling of our products.
HYDRAULIC CRIMP SYSTEMS
Elpress hydraulic crimp systems crimp from 10 to 1200 mm². The systems consist of pumps and crimp heads that can be freely combined or with complete hand-held tools, where these devices are integrated. Wide range of accessories available for crimping, pre-rounding, cutting etc. Together with the matching terminals, they form a complete system. Both pumps and hand-held tools have, with a few exceptions, quick feed function that means crimping can begin after a few pump strokes. The systems have a built-in ratchet lock that ensures the completion of the initial crimp and thus, produces results with the best characteristics. Pumps can connect to the different crimp heads providing the option of comfortable work in difficult situations and with maximum flexibility.
For more information on Elpress RPLT Installation Assortment Box, consult PDF File or Technical Data Table below.
*Technical Data subject to change without notice.
