Klauke Bimetallic (AlCu) Compression Cable Lugs (16-400mm²)
Klauke Bimetallic (AlCu) Compression Cable Lugs (16-400mm²)

Product overview

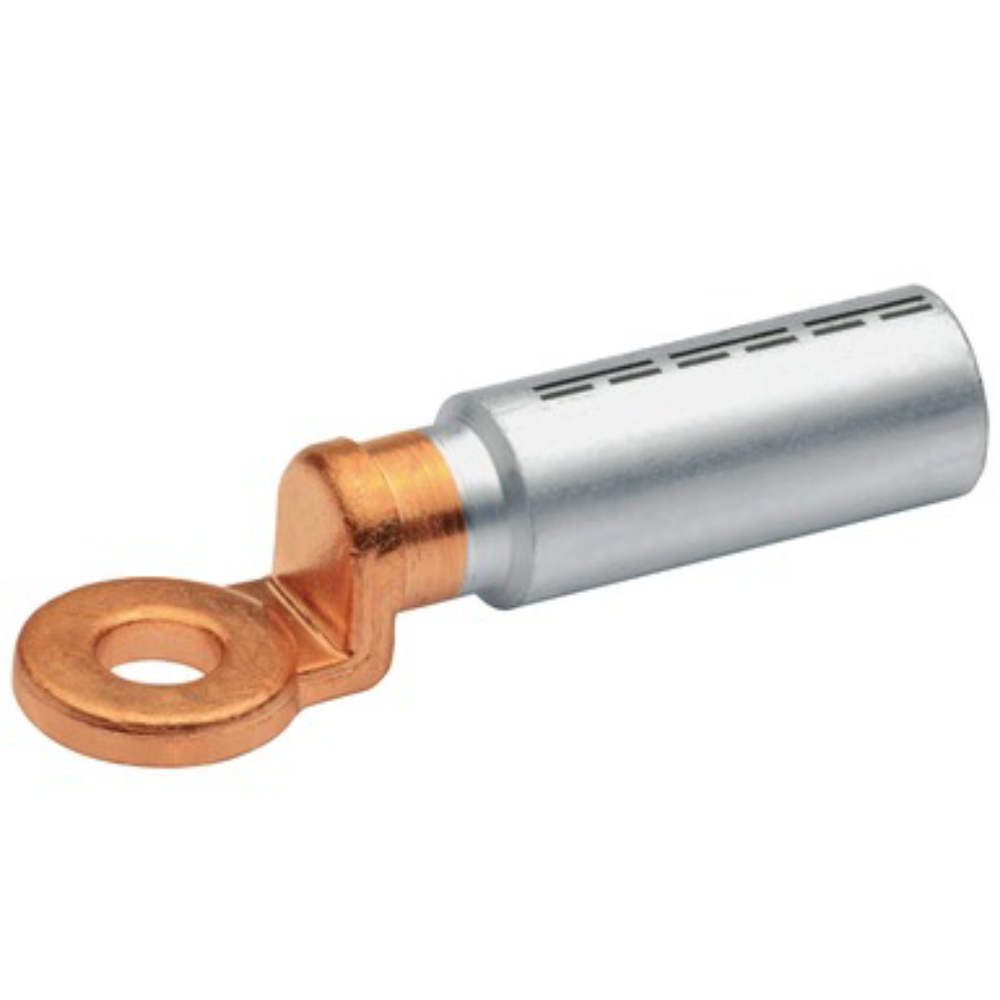

Klauke Bimetallic Compression Cable Lugs (16-400mm²) are high-quality compression connectors. They are designed to join aluminium conductors to copper terminations in non-tensioned applications. These Klauke Bimetallic Lugs (AlCu) are ideal for use with pre-rounded, sector-shaped and round aluminium conductors, delivering safe, corrosion-resistant performance in both indoor and outdoor environments. Made from e-aluminium with a solid copper palm, each lug is filled with contact grease. This optimises conductivity and crimp quality in challenging installation conditions.

Part Numbers: 363R8, 363R10, 364R10, 364R8, 364R12, 365R8, 365R10, 365R12, 366R8, 366R10, 366R12, 367R8, 367R10, 367R12, 368R8, 368R10, 368R12, 368R16, 369R8, 369R10, 369R12, 369R16, 370R8, 370R10, 370R12, 370R16, 371R10, 371R12, 371R16, 371R20, 371R8, 372R10, 372R12, 372R16, 372R20, 373R10, 373R12, 373R16, 373R20, 374R12, 374R16.

Klauke Bimetallic (AlCu) Compression Cable Lugs (16-400mm²)

Engineered for use in humid or outdoor environments, Klauke Compression AlCu Cable Lugs provide a durable, long-lasting connection between aluminium and copper conductors. These Klauke AlCu Lugs are manufactured to DIN 46329 dimensions and feature an oil stop barrier and crimp markings to ensure consistent, accurate terminations. Their internal chamfer simplifies cable insertion, while clearly marked code numbers help ensure tool compatibility for safe, reliable crimping. Whether used in switchgear, control cabinets or distribution networks, Klauke Compression AlCu Lugs guarantee clean, low-resistance connections with minimal processing effort.

Key Features & Benefits

  • Cross-section range: 16 to 400 mm² – suitable for a broad range of installation requirements
  • For aluminium conductors to EN 60228 and DIN EN 50182 – including round and sector-shaped (pre-rounded) wires
  • Tube dimensions to DIN 46329 – for compatibility with standard compression tooling
  • Barrier design with oil stop and solid copper palm – prevents moisture ingress and supports long-term reliability
  • Filled with contact grease – ensures excellent crimping results and corrosion protection
  • Internal chamfer – enabling smooth, straightforward conductor insertion
  • Crimp markings and code numbers – simplifies processing and guarantees correct tool assignment
  • Bimetallic construction (E-aluminium & copper EN13600) – ideal for connecting dissimilar metals
  • Bright surface finish – promotes low contact resistance and easy inspection

Klauke Bimetallic Cable Lugs – Reliable AlCu Terminations

Designed to handle the challenges of aluminium-to-copper transitions in power and control systems, Klauke Bimetallic Compression Cable Lugs offer high-performance and weather-resistant reliability. From switchboards to industrial panels, these Bimetallic AlCu Cable Lugs streamline installation while delivering long-lasting electrical integrity.

When quality, compliance and ease of use matter, choose Klauke Compression AlCu Cable Lugs. They are the trusted 16-400mm Klauke Cable Lugs you need for professional, corrosion-resistant conductor terminations.

For Additional Information on Klauke Bimetallic Compression Cable Lugs (16-400mm²), please consult the Technical Data Table or PDF File below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Part Number Conn. Bolts Dia. Nominal Cross-Section (mm²) RM/SM RE/SE Code Dimensions (mm²) - D1 Dimensions (mm²) - A Dimensions (mm²) - B Dimensions (mm²) - D2 Dimensions (mm²) - D4 Dimensions (mm²) - L Number of Crimps - Al (7 mm) Number of Crimps - Al (Wide) Weight 100 pcs. ~kg Cu Weight 100 pcs. ~kg Total PU/PCS.
363R8 M 8 16 25 12 6,0 34 24 8,5 12 68 4 2 4,4 5,9 10
363R10 M 10 16 25 12 6,0 34 24 10,5 12 68 4 2 4,2 5,7 10
364R10 M 10 25 35 12 6,8 34 24 10,5 12 68 4 2 4,2 5,6 10
364R8 M 8 25 35 12 6,8 34 24 8,5 12 68 4 2 4,4 5,8 10
364R12 M 12 25 35 12 6,8 34 24 13,0 12 68 4 2 3,9 5,3 10
365R8 M 8 35 50 14 8,0 43 24 8,5 14 77 5 2 4,4 6,3 10
365R10 M 10 35 50 14 8,0 43 24 10,5 14 77 5 2 4,2 6,1 10
365R12 M 12 35 50 14 8,0 43 24 13,0 14 77 5 2 3,8 5,8 10
366R8 M 8 50 70 16 9,8 43 25 8,5 16 77 5 2 4,4 6,4 10
366R10 M 10 50 70 16 9,8 43 25 10,5 16 77 5 2 4,2 6,2 10
366R12 M 12 50 70 16 9,8 43 25 13,0 16 77 5 2 3,9 5,9 10
367R8 M 8 70 95 18 11,2 52 25 8,5 18,5 84,5 6 3 3,9 6,9 10
367R10 M 10 70 95 18 11,2 50 24 10,5 18,5 85 6 3 4,2 7,4 10
367R12 M 12 70 95 18 11,2 50 24 13,0 18,5 85 6 3 3,9 7,1 10
368R8 M 8 95 120 22 13,2 56 30 8,5 22 90,5 6 3 4,1 8,0 5
368R10 M 10 95 120 22 13,2 50,5 30 10,5 22 90,5 6 3 7,4 11,4 10
368R12 M 12 95 120 22 13,2 50,5 30 13,0 22 90,5 6 3 6,8 10,8 10
368R16 M 16 95 120 22 13,2 50,5 30 17,0 22 90,5 6 3 6,4 10,4 10
369R8 M 8 120 150 22 14,7 56,5 30 8,5 23 92,0 6 3 3,9 8,3 5
369R10 M 10 120 150 22 14,7 56,5 30 10,5 23 92 6 3 6,8 11,4 5
369R12 M 12 120 150 22 14,7 56,5 30 13,0 23 92,0 6 3 6,8 11,4 5
369R16 M 16 120 150 22 14,7 56,5 30 17,0 23 92,0 6 3 6,4 10,8 5
370R8 M 8 150 185 25 16,3 62 30 8,5 25 104 6 3 6,8 13,3 5
370R10 M 10 150 185 12 16,3 62 30 10,5 25 104 6 3 6,8 13,6 5
370R12 M 12 150 185 25 16,3 62 30 13,0 25 104,0 6 3 6,8 13,1 5
370R16 M 16 150 185 25 16,3 62 30 17,0 25 104,0 6 3 6,4 12,7 5
371R10 M 10 185 240 28 18,3 62 30 10,5 28,5 105,5 6 3 10,3 18,6 5
371R12 M 12 185 240 28 18,3 62 35 10,5 28,5 105,5 6 3 10,1 18,4 5
371R16 M 16 185 240 28 18,3 62 35 17,0 28,5 105,5 6 3 9,3 17,6 5
371R20 M 20 185 240 28 18,3 62 35 21,0 28,5 105,5 6 3 10,1 18,4 5
371R8 M 8 185 240 28 18,3 62 30 8,5 28,5 105 6 3 11,3 19,4 5
372R10 M 10 240 300 32 21,0 70 35 10,5 32 118,5 8 3 12,1 22,5 5
372R12 M 12 240 300 32 21,0 72 35 13,0 32 118,5 8 3 11,8 22,2 5
372R16 M 16 240 300 32 21,0 72 35 17,0 32 118,5 8 3 11,0 21,4 5
372R20 M 20 240 300 32 21,0 72 35 21,0 32 118,5 8 3 10,1 20,5 5
373R10 M 10 300 - 34 23,3 72 36 10,5 34 124,0 8 3 14,3 27,2 2
373R12 M 12 300 - 34 23,3 72 36 13,0 34 124,0 8 3 17,7 33,7 2
373R16 M 16 300 - 34 23,3 72 36 17,0 34 124,0 8 3 16,9 32,9 2
373R20 M 20 300 - 34 23,3 72 40 21,0 34 124 8 3 16,0 32,0 1
374R12 M 12 400 - 38 26,0 100 40 13,0 38,5 150,5 - 4 25,6 37,4 1
374R16 M 16 400 - 38 - 100 40 17 38,5 150,5 - 4 22,1 37,4 1
