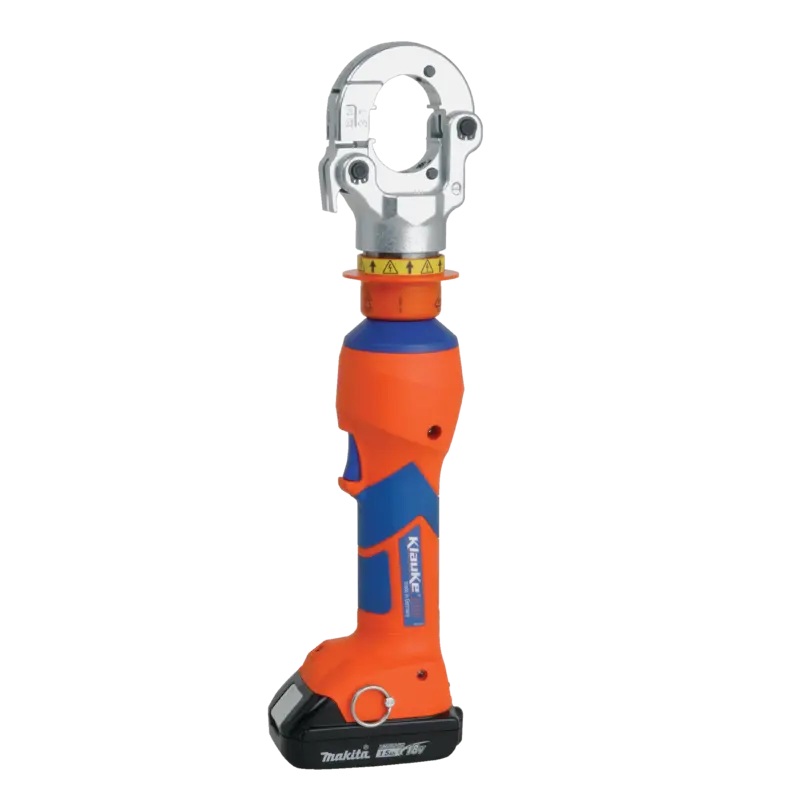

Klauke EKM6022ISM Battery Hydraulic Crimping Tool (6-300mm²)
Product overview
Klauke EKM6022ISM (EKM 60/22 IS) is a VDE-certified Hydraulic Crimping Tool from Klauke’s Orange Line. It’s designed for crimping copper and aluminium conductors from 6 to 300 mm². With its compact design and rotatable, flip-top head secured by a bolt interlock, this 6-300mm² Hydraulic Crimping Tool delivers precise, reliable crimps every time. Fully insulated for live work up to 1000V, the Klauke Orange EKM6022ISM offers safety and efficiency in demanding electrical environments.
Klauke Part Numbers: EKM6022ISM (Makita), EKM6022ISB (Bosch).
Please note, we primarily supply the EKM6022ISM (Makita) version. The EKM6022ISB (Bosch) version is available on request.
Klauke EKM6022ISM Battery Hydraulic Crimping Tool (6-300mm²)
Designed for utility engineers, contractors and electrical professionals, the Klauke EKM 60/22 IS delivers 60 kN crimping force in a lightweight 3.1 kg tool (with battery). With a stroke length of 17.5 mm and a broad crimping range from 6 to 300 mm², this Battery Crimping Tool supports a variety of conductor sizes, including narrow crimping dies from the 22-series interchangeable range. Compatible with Bosch or Makita 18V battery systems, the 6-300mm Klauke Crimping Tool features Bluetooth connectivity, an integrated LED work light and a built-in display to provide real-time tool data and diagnostics for enhanced safety and productivity on-site.
Key Features & Benefits
- Fully insulated to IEC 60900 for live work up to 1000V
- VDE-certified – ideal for power distribution, utilities and industrial sites
- Compatible with Bosch or Makita 18V Li-Ion battery platforms
- Crimping range from 6 to 300 mm² for copper and aluminium conductors
- Closed, bolt-interlock, rotatable, flip-top head for versatile and secure operation
- Lightweight, ergonomic design with balanced centre of gravity reduces fatigue
- Simple one-button control for all tool functions enhances ease of use
- Visual and audible signals ensure quality assurance and error detection
- Automatic retraction when operation is complete, plus Automatic Retract Stop (ARS) for multiple crimps
- Integrated LED work light for improved visibility in low-light environments
- Built-in display shows crimp counts, battery status and maintenance alerts
- Bluetooth-enabled for easy data transfer and tool performance monitoring
- Eco-friendly, biodegradable hydraulic oil for sustainable operation
- Operating temperature range: -10 °C to 40 °C
- Klauke EKM6022ISM (Makita) / Klauke EKM6022ISB (Bosch) – battery options for flexible use
Klauke Orange EKM6022ISM – Powerful Crimping
Whether you’re crimping fine-stranded or compacted conductors, the Klauke EKM6022ISM ensures consistent, high-quality results with minimal downtime. Its fast 2 to 5 second crimping cycles boost productivity without compromising accuracy. Designed for demanding environments, the Klauke EKM 60/22 IS combines robust performance, intelligent diagnostics and VDE-certified insulation to deliver safe, reliable operation in live working conditions.
When reliability, safety and precision are essential, choose the Klauke Orange EKM6022ISM – your trusted 6-300mm Hydraulic Crimping Tool for superior performance.
For Additional Information on Klauke EKM6022ISM Battery Hydraulic Crimping Tool (6-300mm²) (EKM6022ISM, EKM6022ISB), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
TECHNICAL SPECIFICATIONS - MAKITA BATTERY SYSTEM |
| Part Number | Crimping Force | Stroke | Crimping Range | Crimping Cycle | Number of Crimps | Battery Voltage | Battery Capacity | Battery Charging Time | Weight Including Battery | Ambient Temperature |
| EKM6022ISM | 60 kN | 17.5 mm | 6 - 300 mm² | 2 s (for ARS) to 5 s (depending on crimp cross-section) | approx. 150 - 200 at 150 mm² Cu DIN | 18 V | 1.5 Ah, Li-Ion | 15 mins | 3.1 kg | -10 °C to 40 °C |
TECHNICAL SPECIFICATIONS - BOSCH BATTERY SYSTEM |
| Part Number | Crimping Force | Stroke | Crimping Range | Crimping Cycle | Battery Charging Time | Weight Including Battery |
Ambient Temperature |
| EKM6022ISB | 60 kN | 17.5 mm | 6 - 300 mm² | 2 s (for ARS) to 5 s (depending on crimp cross-section) | 15 mins | 3.1 kg | -10 °C to 40 °C |
