Klauke L-Series Tubular Cu Cable Lugs with 2 holes (70-800mm²)
Klauke L-Series Tubular Cu Cable Lugs with 2 holes (70-800mm²)

Product overview

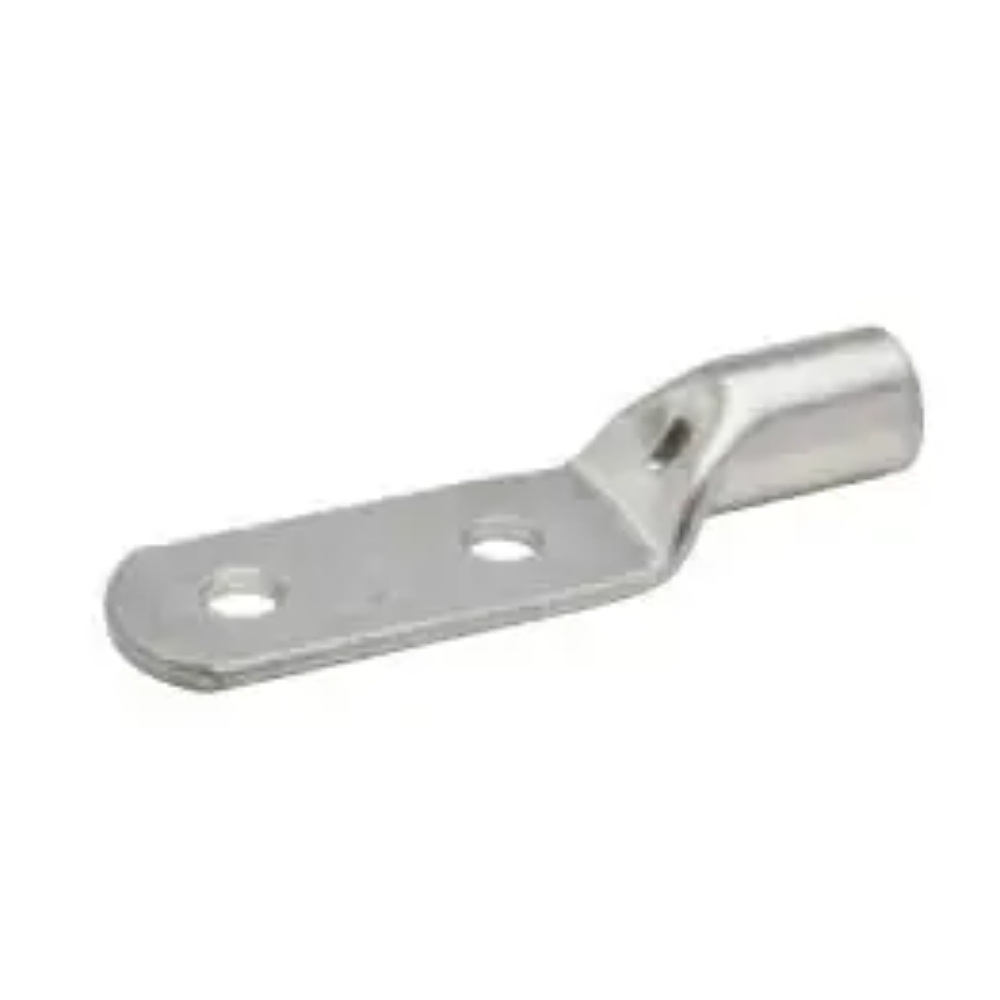

Klauke L-Series Tubular Cu Cable Lugs with 2 holes (70-800mm²) are tubular copper connectors with two mounting holes, designed specifically for fine stranded cables. These L-Series 2 Hole Cu Lugs feature an enlarged internal flare that makes cable insertion quicker and easier. There is also a neat finish with no raised diameter on the flared section. Manufactured from high-grade copper (EN13600) and tin-plated for corrosion resistance, Klauke 2 Hole Cu Cable Lugs deliver reliable, low-resistance connections in demanding electrical installations.

Part Numbers: L70BO210445MS, L70BO212445MS, L95BO210445MS, L95BO212445MS, L120BO210445MS, L120BO212445MS, L120BO214445MS, L150BO210445MS, L150BO212445MS, L150BO216445MS, L185BO212445MS, L185BO216445MS, L240BO212445MS, L240BO216445MS, L300BO212445MS, L300BO216445MS, L400BO212445MS, L400BO216445MS, L500BO212445MS, L500BO216445MS, L630BO212445MS, L630BO216445MS, L800BO212445MS, L800BO216445MS.

Klauke L-Series Tubular Cu Cable Lugs with 2 holes (70-800mm²)

Ideal for multi-stranded round conductors (e.g. to EN 60228 Class 2), as well as pre-rounded, multi-stranded sector-shaped conductors, these Klauke 2 Hole Cable Lugs provide secure, code-compliant terminations. The flat contact surfaces combined with an internal chamfer guarantee safe and simple connections, while an inspection hole allows quick verification that the conductor is fully inserted. With a standard 44.5mm spacing between hole centres, these tubular Cu Lugs are perfectly suited for switchgear, control panels and industrial power distribution systems. Ultimately, they offer consistent performance with minimal processing effort.

Key Features & Benefits

  • Cross-section range: 70 to 800 mm² – accommodates a broad variety of conductor sizes and types
  • For fine stranded cables – compatible with multi-stranded round and pre-rounded sector-shaped conductors
  • Enlarged internal flare – speeds up cable insertion and provides a smooth, raised-free finish after crimping
  • Flat contact surfaces and internal chamfer – ensures secure electrical contact and easy handling
  • Tin-plated copper (EN13600) – offers excellent conductivity and corrosion protection
  • Inspection hole – allows quick visual confirmation of complete conductor insertion
  • 44.5mm spacing between hole centres – standardised for compatibility with common mounting requirements
  • These L-Series 2 Hole Lugs are engineered for fast, safe and compliant connections

Klauke Cable Lugs 70-800mm² – For Demanding Industrial Applications

Designed to handle the challenges of aluminium-to-copper transitions in power and control systems, Klauke Bimetallic Compression Cable Lugs offer high-performance and weather-resistant reliability. From switchboards to industrial panels, these Bimetallic AlCu Cable Lugs streamline installation while delivering long-lasting electrical integrity.

When quality, compliance and ease of use matter, choose Klauke Compression AlCu Cable Lugs. They are the trusted 16-400mm Klauke Cable Lugs you need for professional, corrosion-resistant conductor terminations.

For Additional Information on Klauke L-Series Tubular Cu Cable Lugs with 2 holes (70-800mm²), please consult the Technical Data Table or PDF File below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Part Number Nominal Cross-Section (mm²) Size of Bolt Diameter Dimensions (mm²) - A Dimensions (mm²) - B Dimensions (mm²) - D1 Dimensions (mm²) - D2 Dimensions (mm²) - D4 Dimensions (mm²) - C1 Dimensions (mm²) - C2 Dimensions (mm²) - I Dimensions (mm²) - I2 Weight 100 pcs. ~kg Packing Unit/PCS
L70BO210445MS 70 M10 20 21 11,2 10,5 14,5 12 12 41 44,5 5,46 100
L70BO212445MS 70 M12 20 22 11,2 13 14,5 13 13 42 44,5 5,28 100
L95BO210445MS 95 M10 22 25 13,4 10,5 17 12 12 45 44,5 7,34 25
L95BO212445MS 95 M12 22 25 13,4 13 17 13 13 45 44,5 7,16 25
L120BO210445MS 120 M10 23,5 28 15 10,5 19,5 14 14 51 44,5 11,32 100
L120BO212445MS 120 M12 23,5 28 15 13 19,5 14 14 51 44,5 10,96 100
L120BO214445MS 120 M14 23,5 28 15 15 19,5 15 15 52 44,5 10,83 10
L150BO210445MS 150 M10 26 31 16,5 10,5 21 14 14 56 44,5 12,69 10
L150BO212445MS 150 M12 26 31 16,5 13 21 15 15 57 44,5 12,58 25
L150BO216445MS 150 M16 26 31 16,5 17 21 16 16 58 44,5 12,11 10
L185BO212445MS 185 M12 28 35 19 13 24 18 18 65 44,5 17,93 10
L185BO216445MS 185 M16 28 35 19 17 24 18 18 65 44,5 17,13 10
L240BO212445MS 240 M12 32 39 21 13 26 21,5 21,5 72 44,5 21,09 25
L240BO216445MS 240 M16 32 39 21 17 26 21,5 21,5 72 44,5 20,33 10
L300BO212445MS 300 M12 38,5 43 23,5 13 29,5 24 24 87 44,5 33,71 10
L300BO216445MS 300 M16 38,5 43 23,5 17 29,5 24 24 87 44,5 32,71 10
L400BO212445MS 400 M12 39 49 27 13 34 24 24 90 44,5 46,30 10
L400BO216445MS 400 M16 39 49 27 17 34 24 24 90 44,5 45,05 10
L500BO212445MS 500 M12 68 56 31 13 38 24 24 120 44,5 63,11 5
L500BO216445MS 500 M16 68 56 31 17 38 24 24 120 44,5 61,94 5
L630BO212445MS 630 M12 68 59 34 13 40 24 24 120 44,5 58,86 5
L630BO216445MS 630 M16 68 59 34 17 40 24 24 120 44,5 57,83 5
L800BO212445MS 800 M12 100 75 40 13 52 30 30 165 44,5 186,00 5
L800BO216445MS 800 M16 100 75 40 17 52 30 30 165 44,5 184,00 5
