Klauke L-Series Tubular Cu Cable Lugs with 4 holes (185-800mm²)
Klauke L-Series Tubular Cu Cable Lugs with 4 holes (185-800mm²)

Product overview

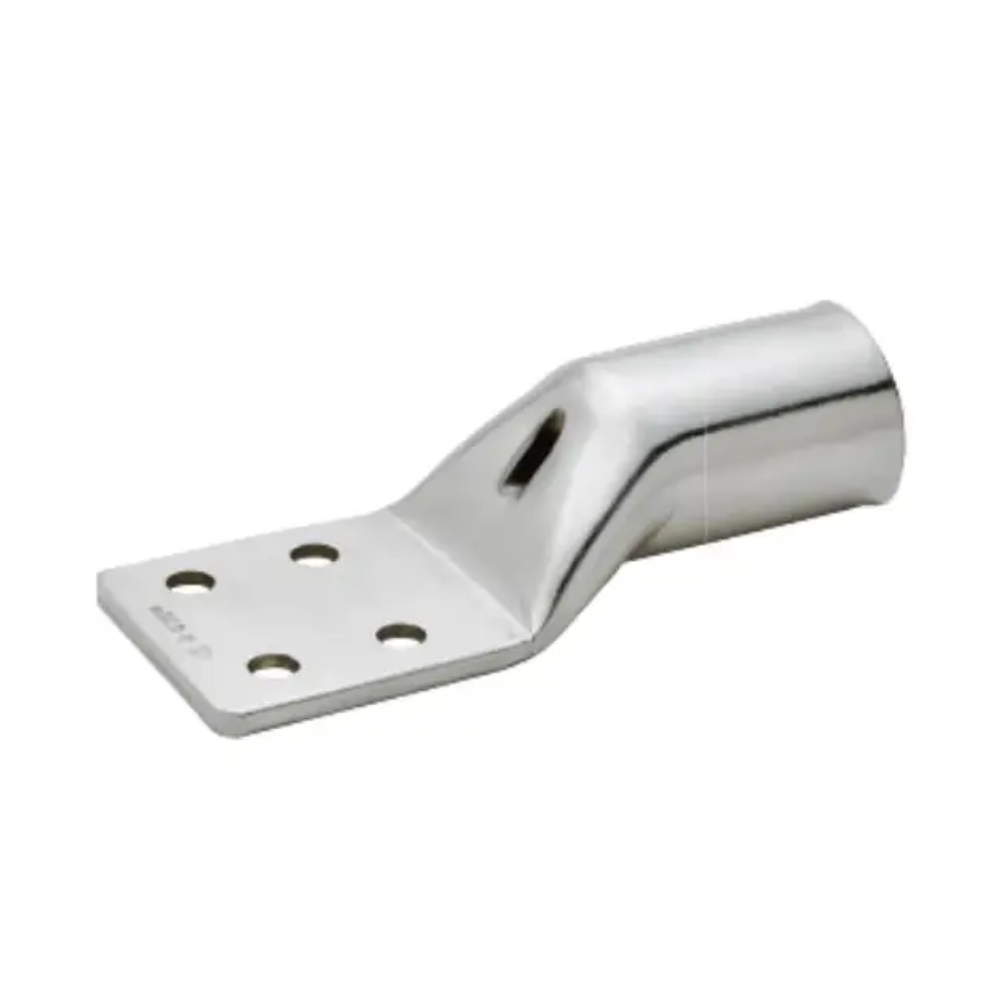

Klauke L-Series Tubular Cu Cable Lugs with 4 holes (185-800mm²) are tubular copper connectors with four mounting holes. They are ideal for transformer terminations and other heavy-duty electrical applications. These L-Series 4 Hole Cu Lugs feature a flared entry point that makes cable insertion quicker and easier, while also ensuring a neat finish with no raised diameter after crimping. Manufactured from tin-plated copper (EN13600) for enhanced corrosion resistance, Klauke 4 Hole Cu Lugs ensure reliable, low-resistance connections across a wide range of industrial environments.

Part Numbers: L185BO4825FMS, L240BO4825FMS, L300BO4825FMS, L400BO4825FMS, L500BO4825FMS, L630BO4825FMS, L800BO4825FMS.

Klauke L-Series Tubular Cu Cable Lugs with 4 holes (185-800mm²)

Designed for secure, code-compliant terminations, Klauke 4 Hole Cable Lugs are ideal for use with multi-stranded round conductors (e.g. to BS EN 60228 Class 2). They’re also for use on pre-rounded, multi-stranded sector-shaped conductors. The flat contact surfaces and internal chamfer ensure a straightforward, dependable connection, while the integrated inspection hole allows quick confirmation of full conductor insertion. With standardised 25mm and 35mm hole spacing, these Tubular Cable Lugs are well-suited for 4-hole transformer fixings in demanding industrial settings. Built for long-term performance, they provide consistent, safe results with minimal processing effort.

Key Features & Benefits

  • Cross-section range: 185 to 800 mm² – accommodates a broad spectrum of conductor sizes
  • For stranded and pre-rounded sector-shaped conductors – compatible with EN 60228 Class 2 cables
  • Flared entry design – allows quicker cable insertion and a smooth, clean finish post-crimp
  • Flat contact surfaces with internal chamfer – simplifies installation and improves electrical contact
  • Tin-plated copper (EN13600) – ensures excellent conductivity and long-term corrosion protection
  • Inspection hole – enabling fast visual confirmation of proper conductor insertion
  • 25mm and 35mm hole centre spacing – suitable for standard 4-hole transformer mountings
  • These L-Series 4 Hole Lugs are engineered for secure, reliable and repeatable performance

Klauke Cable Lugs 185–800mm² – Industrial-Grade 4 Hole Cu Solutions

Whether installed in switchboards, control gear or transformer housings, Klauke 4 Hole Cu Cable Lugs offer a robust, high-performance solution for copper conductor terminations. These Tubular Lugs are built for harsh environments, supporting strong mechanical stability and low contact resistance.

When precision, compliance and durability matter, choose Klauke L-Series 4 Hole Cu Lugs. They are the trusted 185–800mm Klauke Cable Lugs you need for safe and efficient installations.

For Additional Information on Klauke L-Series Tubular Cu Cable Lugs with 4 holes (185-800mm²), please consult the Technical Data Table or PDF File below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Part Number Nominal Cross-Section (mm²) Size of Bolt Diameter Dimensions (mm²) - A Dimensions (mm²) - B Dimensions (mm²) - D1 Dimensions (mm²) - D2 Dimensions (mm²) - D4 Dimensions (mm²) - C1 Dimensions (mm²) - C2 Dimensions (mm²) - I Dimensions (mm²) - I2 Dimensions (mm²) - B1 Weight 100 pcs. ~kg Packing Unit/PCS
L185BO4825FMS 185 M8 46 61 19 9 24 15 20 84 25 35 19,88 10
L240BO4825FMS 240 M8 48 61 21 9 26 15 20 88 25 35 22,77 10
L300BO4825FMS 300 M8 52 61 23 9 29,5 15 20 93 25 35 30,78 10
L400BO4825FMS 400 M8 50 61 27 9 34 15 20 94 25 35 41,10 10
L500BO4825FMS 500 M8 53 61 31 9 38 15 20 99 25 35 47,66 5
L630BO4825FMS 630 M8 57 61 34 9 40 15 20 104 25 35 45,17 5
L800BO4825FMS 800 M8 67 61 40 9 52 15 20 118 25 35 123 5
