Klauke SS316 Stainless Steel Tubular Cable Lugs (V4A)
Product overview

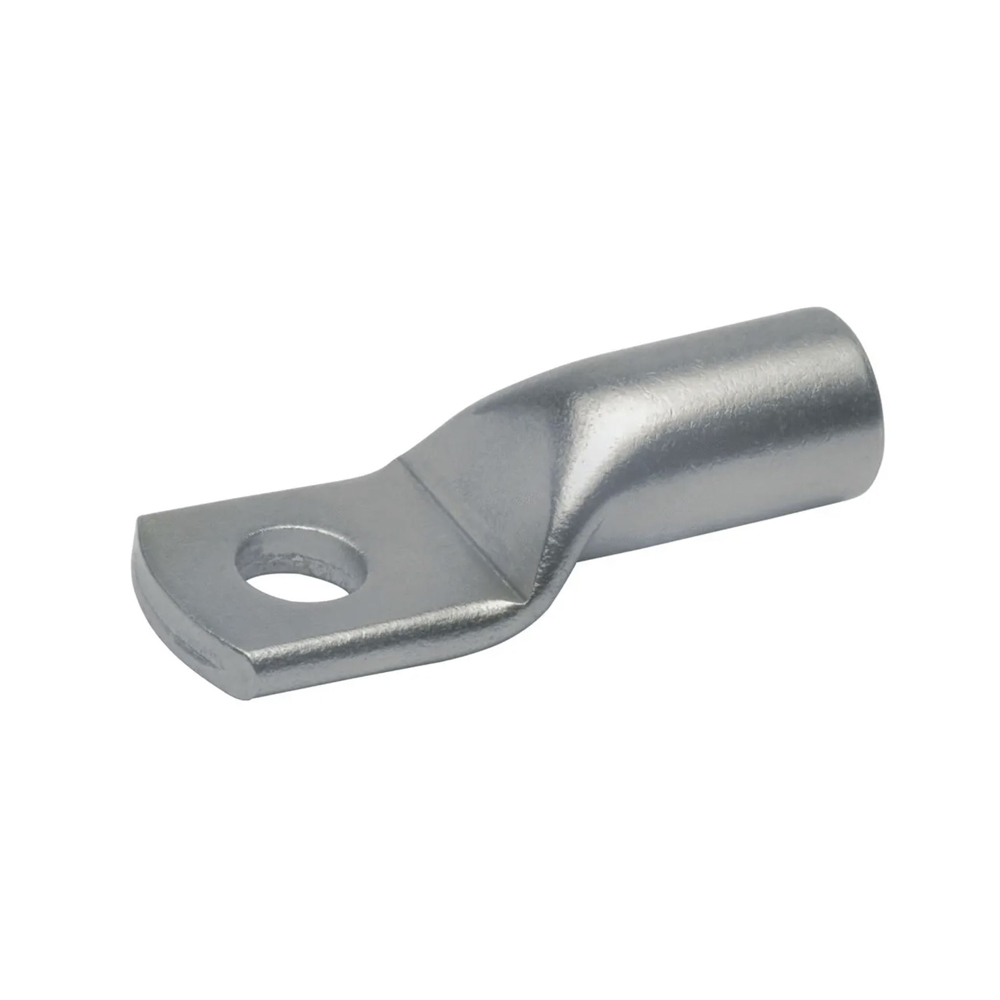

Klauke SS316 Stainless Steel Tubular Cable Lugs (V4A)
Klauke SS316 Tubular Cable Lugs (V4A) are high-quality stainless steel connectors. They are designed for multi-stranded and fine-stranded round conductors (to EN 60228 Class 2 and 5) as well as pre-rounded sector-shaped conductors. Engineered for harsh environments, these V4A Cable Lugs provide reliable, corrosion-resistant connections where performance and longevity matter. Common applications include industrial and chemical plants, marine and offshore installations, outdoor power distribution systems, switchgear and control panels, and battery and high-current connections.
With flat contact surfaces and an internal chamfer, SS316 Tubular Cable Lugs ensure safe, simple and secure electrical terminations. Ideal for use in aggressive environments, Klauke SS316 Cable Lugs withstand acid, rust and heat up to 400 °C, making them a trusted choice for industry professionals.
Klauke Part Numbers: 79V44, 80V44, 80V46, 81V44, 81V45, 81V46, 82V45, 82V46, 82V48, 83V45, 83V46, 83V48, 83V410, 84V46, 84V48, 84V410, 85V46, 85V48, 85V410, 86V46, 86V48, 86V410, 86V412, 87V48, 87V410, 87V412, 87V416, 88V412.
Key Features & Benefits
- V4A Stainless Steel (X5CrNiMo17-12-2) for highly corrosive environments
- Optional V2A (X5CrNi18-10) available
- Available from 0,5 up to 95mm², bolt size M4 up to M12
- Multi-stranded round and pre-rounded sector-shaped conductors (EN 60228 Cl. 2 & 5)
- Smooth, bright, defect-free finish with no scoring, folds or blisters
- Safe for use up to 400 °C
- Flat contact surfaces and internal chamfer ensure secure and reliable connections
- Compatible with Klauke hydraulic/hand crimping tools and crimping heads:
- Series 4: EK35/4ML, EK35/4, K35/4
- Series 22: EKM60/22IS, EKM60/22, EK60/22, EKM60UNV, EK60UNV, HK60/22, K22, THK22
- Series 13: EK120/32, EK120/42, EK120UNV, EK120U, EK135FT, HK120/30, HK120/42, HK120U, PK120/42, PK120U, THK120
Why Choose Klauke SS316 Tubular Cable Lugs?
Klauke SS316 Tubular Cable Lugs offer a durable, professional-grade solution for secure electrical terminations in demanding environments. Combining corrosion-resistant V4A stainless steel construction with reliable performance under high temperatures and harsh conditions, they provide consistent, long-term connection integrity with minimal installation effort.
For Additional Information on Klauke SS316 Stainless Steel Tubular Cable Lugs (V4A), please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part Number | Nominal Cross-Section (mm²) | Size of Bolt Diameter | Dimensions (mm²) - D1 | Dimensions (mm²) - A | Dimensions (mm²) - B | Dimensions (mm²) - C1 | Dimensions (mm²) - C2 | Dimensions (mm²) - D2 | Dimensions (mm²) - D4 | Dimensions (mm²) - I | Weight 100 pcs. ~kg | Packing Unit/PCS |
| 79V44 | 0,5-1 | M4 | 1,6 | 6 | 6,5 | 4,5 | 4,5 | 4,3 | 3,2 | 13 | 0,080 | 100 |
| 80V44 | 1,5-2,5 | M4 | 3,0 | 8 | 9,0 | 5 | 5,5 | 4,3 | 5,0 | 17 | 0,260 | 100 |
| 80V46 | 1,5-2,5 | M6 | 3,0 | 8 | 9,5 | 6,5 | 6,5 | 6,5 | 5,0 | 19 | 0,215 | 100 |
| 81V44 | 4-6 | M4 | 4,0 | 9 | 9,0 | 5 | 5,5 | 4,3 | 6,0 | 18 | 0,260 | 100 |
| 81V45 | 4-6 | M5 | 4,0 | 9 | 9,5 | 6 | 6 | 5,5 | 6,0 | 19 | 0,280 | 100 |
| 81V46 | 4-6 | M6 | 4,0 | 9 | 10,0 | 7 | 6,5 | 6,5 | 6,0 | 19 | 0,280 | 100 |
| 82V45 | 10 | M5 | 5,0 | 10 | 12,5 | 6,5 | 7,5 | 5,5 | 8,0 | 22 | 0,710 | 100 |
| 82V46 | 10 | M6 | 5,0 | 10 | 12,5 | 6,5 | 7,5 | 6,5 | 8,0 | 22 | 0,780 | 100 |
| 82V48 | 10 | M8 | 5,0 | 10 | 15,0 | 9 | 10 | 8,5 | 8,0 | 25 | 0,780 | 100 |
| 83V45 | 16 | M5 | 6,0 | 13 | 12,0 | 5,5 | 6,5 | 5,5 | 8,0 | 28 | 0,500 | 50 |
| 83V46 | 16 | M6 | 6,0 | 13 | 12,0 | 6 | 7,5 | 6,5 | 8,0 | 28 | 0,550 | 50 |
| 83V48 | 16 | M8 | 6,0 | 13 | 15,0 | 8,5 | 9,5 | 8,5 | 8,0 | 29 | 0,600 | 50 |
| 83V410 | 16 | M10 | 6,0 | 13 | 17,0 | 10,5 | 11,5 | 10,5 | 8,0 | 31 | 0,650 | 25 |
| 84V46 | 25 | M6 | 7,0 | 15 | 14,0 | 7,5 | 7,5 | 6,5 | 10,0 | 30 | 1,210 | 50 |
| 84V48 | 25 | M8 | 7,0 | 15 | 16,0 | 9 | 10 | 8,5 | 10,0 | 32 | 1,380 | 50 |
| 84V410 | 25 | M10 | 7,0 | 15 | 18,0 | 12 | 12 | 10,5 | 10,0 | 34 | 1,300 | 50 |
| 85V46 | 35 | M6 | 9,0 | 17 | 17,0 | 7,5 | 7,5 | 6,5 | 12,0 | 32 | 1,600 | 50 |
| 85V48 | 35 | M8 | 9,0 | 17 | 17,0 | 10 | 10 | 8,5 | 12,0 | 35 | 1,850 | 50 |
| 85V410 | 35 | M10 | 9,0 | 17 | 17,0 | 12 | 12 | 10,5 | 12,0 | 37 | 1,700 | 50 |
| 86V46 | 50 | M6 | 10,0 | 19 | 20,0 | 10 | 10 | 6,5 | 14,0 | 37 | 2,800 | 50 |
| 86V48 | 50 | M8 | 10,0 | 19 | 20,0 | 10 | 10 | 8,5 | 14,0 | 37 | 2,600 | 50 |
| 86V410 | 50 | M10 | 10,0 | 19 | 20,0 | 12 | 12 | 10,5 | 14,0 | 39 | 2,800 | 50 |
| 86V412 | 50 | M12 | 10,0 | 19 | 20,0 | 13 | 13 | 13,0 | 14,0 | 43 | 2,960 | 50 |
| 87V48 | 70 | M8 | 12,0 | 21 | 23,0 | 10 | 10 | 8,5 | 16,0 | 43 | 3,650 | 25 |
| 87V410 | 70 | M10 | 12,0 | 21 | 23,0 | 12 | 12 | 10,5 | 16,0 | 44 | 3,930 | 25 |
| 87V412 | 70 | M12 | 12,0 | 21 | 23,0 | 13 | 13 | 13,0 | 16,0 | 46 | 3,850 | 25 |
| 87V416 | 70 | M16 | 12,0 | 21 | 26,0 | 16 | 16 | 17,0 | 16,0 | 46 | 3,960 | 25 |
| 88V412 | 95 | M12 | 14,0 | 25 | 26,0 | 13 | 13 | 13,0 | 18,0 | 49 | 5,540 | 25 |
