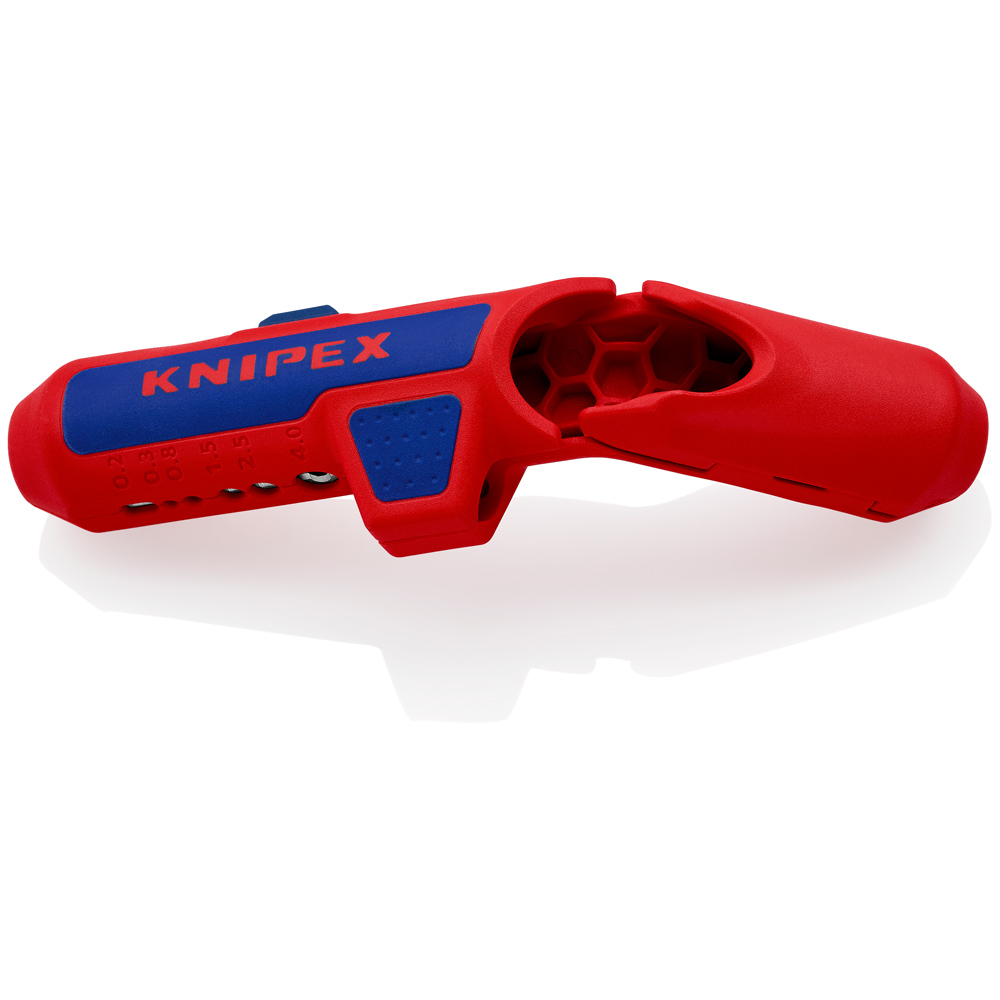

KNIPEX 16 95 01 SB ErgoStrip ® Universal Stripping Tool for Right-Handers
Product overview
KNIPEX 16 95 01 SB ErgoStrip ® Universal Stripping Tool for Right-Handers
The KNIPEX 16 95 01 SB ErgoStrip ® Universal Stripping Tool for Right-Handers is a versatile cable preparation tool. It’s designed for fast and accurate stripping of common installation, data and coaxial cables. Combining multiple cable stripping functions within a single ergonomic design, the 169501SB helps electricians work more efficiently while reducing the need to carry multiple specialist tools.
The KNIPEX 169501SB features an innovative pistol-grip design that enables comfortable handling during cutting, stripping and sheath removal operations. Designed specifically as a stripping tool for right handers, it provides excellent control when working with round cables, damp-proof installation cables, twisted-pair data cables and coaxial cables. Its tapered tool ends allow easy access into flush-mounted boxes, distribution boards and other confined installation areas.
Part Number: 16 95 01 SB.
Key Features & Benefits
- Universal stripping tool for round, installation, data and coaxial cables
- Ergonomic pistol-grip design for improved control and reduced fatigue
- Suitable for common installation cables such as NYM cable from 3 x 1.5 mm² to 5 x 2.5 mm²
- Integrated stripping device for conductor sizes 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4.0 mm²
- Tapered tool ends provide improved access in confined spaces
- Simplified conductor insertion using integrated location ridges
- Suitable for CAT 5, CAT 6 and CAT 7 twisted-pair data cables
- Strips coaxial cables from Ø 4.8 mm to 7.5 mm
- Opening spring and locking mechanism for convenient operation and storage
- Multi-component construction with soft grip zones for enhanced comfort and secure handling
Why Choose the KNIPEX 16 95 01 SB?
The KNIPEX 169501SB combines several cable preparation functions into one compact and highly practical tool. Electricians can use this ErgoStrip stripping tool to strip installation cables, prepare data cables and process coaxial cables without constantly changing tools, helping save time during installation work.
Its ergonomic design allows comfortable one-handed operation, while the slim tapered profile enables access into tight spaces commonly encountered in electrical installations. The integrated stripping profiles and internal positioning guides help deliver consistent and accurate stripping results across a wide range of conductor sizes.
For Additional Information on the KNIPEX 16 95 01 SB ErgoStrip ® Universal Stripping Tool for Right-Handers, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| PART NO. |
16 95 01 SB
|
| EAN | 4003773079927 |
| WEIGHT | 75 g |
| DIMENSIONS | 135 x 85 x 37 mm |
| REACH COMPLIANT | Contains SVHC |
| RoHS COMPLIANT | Not applicable |
| STRIPPING CAPACITIES ROUND CABLE (DIAMETRE) | Ø 8 - 13 mm |
| STRIPPING CAPACITY CONDUCTORS AND STRANDS | 0.2 — 4.0 mm² |
| STRIPPING CAPACITIES FOR COAX CABLE (DIAMETRE) | Ø 4.8 - 7.5 mm |
| STRIPPING CAPACITY DATA CABLE | CAT 5 - 7, Twisted Pair (UTP/STP) |
| STRIPPING CAPACITIES | Ø 8.0 — 13.0 mm |
