KNIPEX 16 95 03 SB ErgoStrip ® PV
Product overview

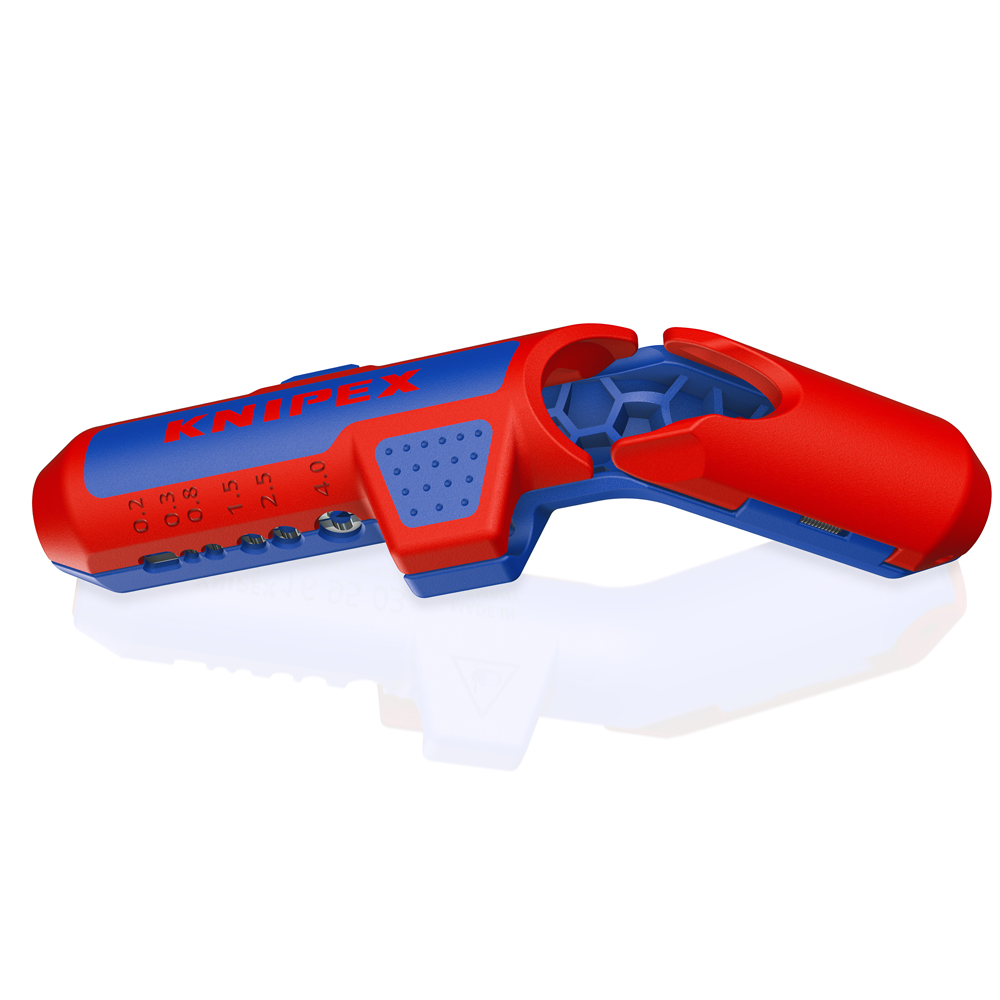

KNIPEX 16 95 03 SB ErgoStrip ® PV
The KNIPEX 16 95 03 SB ErgoStrip ® PV delivers fast, precise stripping for PV solar cables and standard electrical installation cables. Electricians use the 169503SB ErgoStrip to process 4 and 6 mm² PV conductors (such as H1Z2Z2-K) as well as common round and damp-proof cables like NYM 3 x 1.5 mm² up to 5 x 2.5 mm².
The KNIPEX 16 95 03 SB combines cutting, stripping and sheath removal in one ergonomic tool. Installers can switch quickly between PV work and general wiring tasks without changing tools, which improves speed and consistency on-site. The 169503SB ErgoStrip PV also supports clean, repeatable stripping thanks to its integrated length stop for solar connectors.
Part Number: 16 95 03 SB.
Key Features & Benefits
- Fast stripping of PV cables and installation cables
- Adjustable PV length stop (6–18 mm) for solar connectors
- Ergonomic pistol grip for controlled operation
- Conical tool ends for confined installation spaces
- Integrated stripping system for 0.2–4.0 mm² conductors
- Opening spring and locking mechanism for ease of use
- Multi-component handle for secure grip and comfort
- Supports repeatable stripping with internal guide ridges
Why Choose the KNIPEX ErgoStrip PV?
The KNIPEX ErgoStrip PV reduces tool changes on-site and improves installation speed. Electricians use the 169503SB ErgoStrip to streamline PV and general electrical preparation work in one compact tool. The design supports professional use in solar installations, domestic wiring, and control cabinet preparation.
With its hybrid functionality, the 169503SB replaces multiple stripping tools and keeps installation workflows efficient and consistent. It also delivers reliable repeatability for everyday professional electrical installation tasks.
For Additional Information on the KNIPEX 16 95 03 SB ErgoStrip ® PV, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| PART NO. |
16 95 03 SB
|
| EAN | 4003773092605 |
| WEIGHT | 65 g |
| DIMENSIONS | 246 x 85 x 38 mm |
| REACH COMPLIANT | Does not contain SVHC |
| RoHS COMPLIANT | Not applicable |
| STRIPPING CAPACITIES ROUND CABLE (DIAMETRE) | Ø 8 - 13 mm |
| STRIPPING CAPACITY CONDUCTORS AND STRANDS | 0.2 — 4.0 mm² |
