KNIPEX 95 16 160 StepCut ® VDE Cable Shears
Product overview

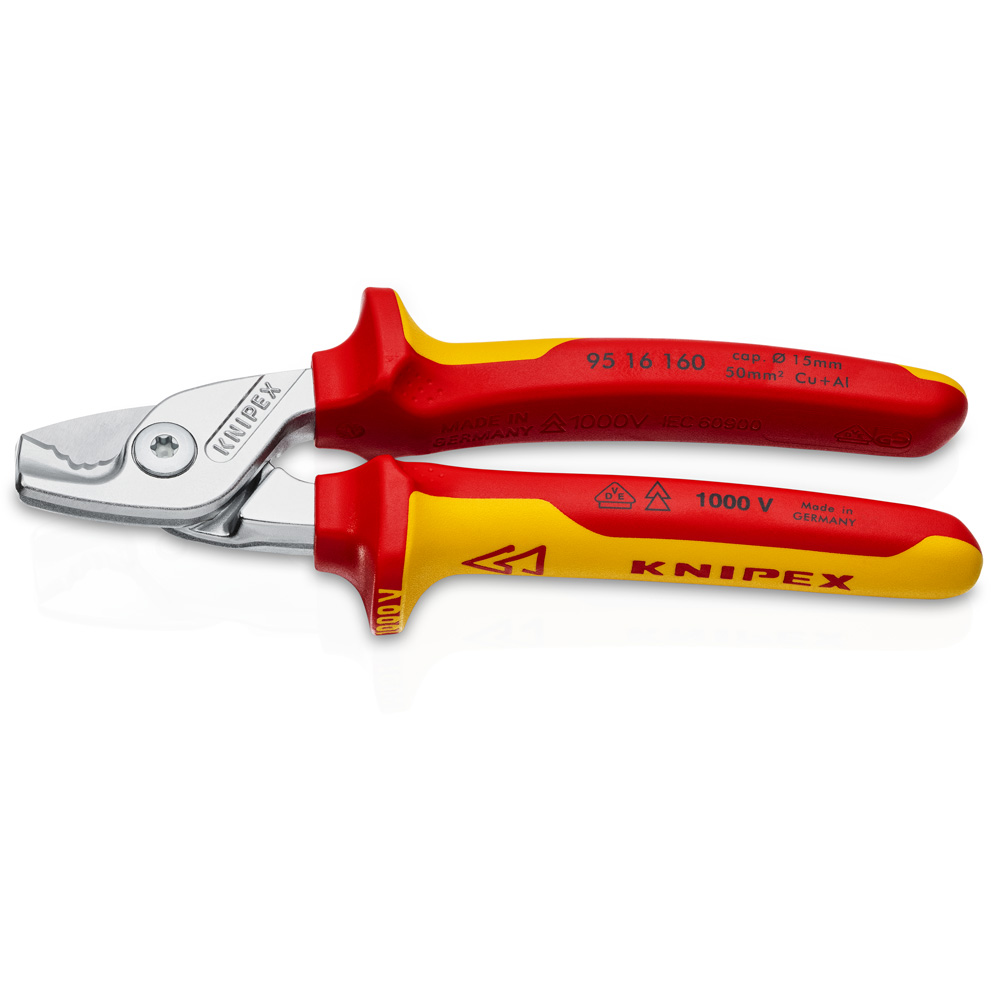

KNIPEX 95 16 160 StepCut ® VDE Cable Shears
KNIPEX 95 16 160 StepCut ® VDE Cable Shears are precision-engineered cable cutters. They are designed to deliver powerful, controlled cutting performance with significantly reduced effort. These KNIPEX 9516160 StepCut ® VDE Cable Shears feature an innovative stepped cutting edge design that progressively cuts wires one after another. This makes cable cutting up to 40% easier compared with conventional cable shears of the same length. Compact, lightweight and only 160 mm in size, these VDE cable shears provide safe operation on live installations up to 1,000V.
StepCut ® Cable Shears cut multi-core copper and aluminium cables cleanly without crushing them, ensuring reliable results across a wide range of applications. The ergonomic handle design improves cutting feel and control, even when working with larger cable diameters, while the robust bolted joint ensures long-term precision and smooth operation.
Part Number: 95 16 160.
Key Features & Benefits
- StepCut ® design reduces cutting effort by up to 40% compared to standard cable shears
- Cuts multi-core copper and aluminium cables up to Ø 15 mm (50 mm²)
- Suitable for solid copper and aluminium cables up to 5 × 4 mm²
- Clean cutting action without crushing cable cores
- Ergonomic multi-component handles for improved grip and comfort
- VDE-tested insulated handles for safe working up to 1,000V
- Induction-hardened cutting edges with approximately 56 HRC hardness
- Bolted joint for precise, smooth and durable performance
- Pinch guard for enhanced user safety
- Compact 160 mm design for easy handling in confined spaces
Why Choose KNIPEX 95 16 160 Shears?
KNIPEX 95 16 160 StepCut ® VDE cable shears are designed for electricians who require maximum cutting efficiency without sacrificing control or safety. The stepped cutting mechanism ensures progressively easier cutting with less hand force. This makes them especially effective during repetitive cable preparation tasks. Their compact size and ergonomic design also make them highly practical for daily use on-site.
With their combination of reduced effort cutting, VDE-certified safety and durable construction, KNIPEX 9516160 StepCut ® VDE cable shears are an essential tool for modern electrical installation work.
For Additional Information on KNIPEX 95 16 160 StepCut ® VDE Cable Shears, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| PART NO. |
95 16 160
|
| EAN |
4003773085966
|
| SHEARS | Chrome-plated |
| HEAD | Chrome-plated |
| HANDLES | Insulated with multi-component grips, VDE-tested |
| WEIGHT | 225 g |
| DIMENSIONS | 160 x 60 x 28 mm |
| STANDARD |
DIN EN 60900 IEC 60900
|
| REACH COMPLIANT | Does not contain SVHC |
| RoHS COMPLIANT | Not applicable |
| CUTTING CAPACITY COPPER CABLE, MULTIPLE-STRANDED |
50 mm² |
| CUTTING CAPACITY COPPER CABLE, MULTIPLE-STRANDED |
Ø 15 mm |
| AWG | 1 / 0 |
| VDE TESTED | Yes |
