Prysmian BICON Single Way Polyamide Cleat 373AA Series (373AA00, 373AA01, 373AA02, 373AA03, 373AA04, 373AA05, 373AA06)
Prysmian BICON Single Way Polyamide Cleat 373AA Series (373AA00, 373AA01, 373AA02, 373AA03, 373AA04, 373AA05, 373AA06)

Product overview

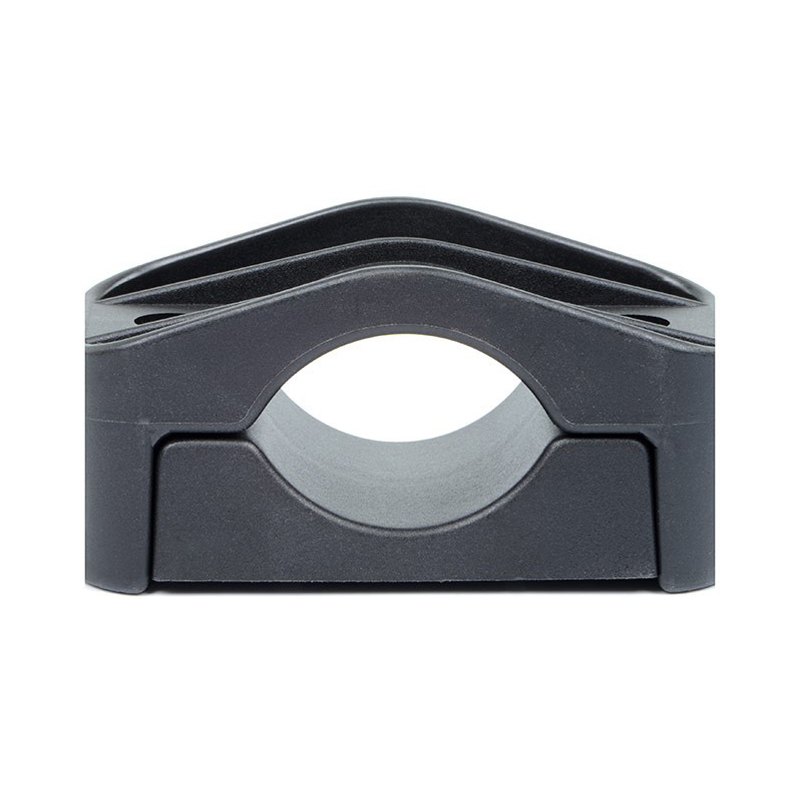

Prysmian BICON Single Way Polyamide Cleat 373AA Series are two bolt single way cleats 15 to 170 mm for the mounting of single and multicore cables. They can be used with low, medium and high voltage cables with diameters between Ø 15 mm – 170 mm or tubes and hoses.
Part Numbers: 373AA00, 373AA01, 373AA02, 373AA03, 373AA04, 373AA05, 373AA06.

Prysmian BICON 373AA Series Features

  • Manufactured from high-strength glass-filled polyamide 6 (PA), glass fibre reinforced
  • Suitable for single or multicore cables with diameters from 15 – 170mm
  • For mounting low, medium and high voltage cables
  • High range take – able to accommodate loosely toleranced cables
  • Non magnetic / non conductive.
  • Non oxidizing / non corrosive.
  • No sharp angles.
  • Stackable
  • Life expectancy 40+ years
  • Halogen free, flame retardant and self-extinguising – ideal for tunnels and buildings V-0 (UL94)
  • Weather resistant – UV, Ozone and frost
  • Resistant to oils, salts, moisture, acids, other aggressive materials and even nuclear radiation.
  • Resistant to Ionizing radiation – ideal for use in nuclear power plants
  • Fully recyclable
  • Available pre-mounted
  • Approved to IEC 61914:2009
  • Tailor-made fastening material is also available.
  • Operation Temperatures -40°C to +125°C (with short periods at +225°C)

Tests

Prysmian BICON 373AA Series cable clamps (cable cleats) have been tested by UL (the underwriters laboratories U.S.A.), Voltalab in Grenoble (Schneider), the Prof. Ir. Damstra laboratory (Eaton) and SGS Brussels amongst other in accordance with international safety standard NEN-EN-IEC 61914:2009. (All test reports are available upon request).

Cable and Cleat Selection

Design Number Cable Diameter ∅ (mm)  Cable Diameter ∅ (inch)
373AA00 15 – 26 mm 0.59 – 1.02 in.
373AA01 26 – 38 mm 1.02 – 1.5 in.
373AA02 36 – 52 mm 1.42 – 2.05 in.
373AA03 50 – 75 mm 1.97 – 2.95 in.
373AA04 75 – 100 mm 2.95 – 3.94 in.
373AA05 100 – 135 mm 3.94 – 5.31 in.
373AA06 135 – 170 mm 5.31 – 6.69 in.

Note: All sizes have stud clearance holes of 15.5mm, allowing fixing sizes M10, M12 & M14 to be used.

Download PDF File for Additional Information on Prysmian BICON Single Way Polyamide Cleat 373AA Series.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Part No Cable ∅ A B C D E F G H
373AA00 15 - 26 mm 77 mm 45 mm 50 mm 10 mm 26 - 42 mm 4 mm 17 mm 8 mm
373AA01 26 - 38 mm 92 mm 60 mm 60 mm 12 mm 33 - 49 mm 7 mm 18 mm 7 mm
373AA02 36 - 52 mm 105 mm 60 mm 75 mm 12 mm 39 - 55 mm 15 mm 23 mm 8 mm
373AA03 50 - 75 mm 126 mm 60 mm 95 mm 12 mm 46 - 71 mm 22 mm 30 mm 9 mm
373AA04 75 - 100 mm 200 mm 80 mm 150 mm 15 mm 70 - 95 mm 32 mm 45 mm 10 mm
373AA05 100 - 135 mm 225 mm 85 mm 175 mm 15 mm 85 - 120 mm 43 mm 58 mm 10 mm
373AA06 135 - 170 mm 260 mm 90 mm 210 mm 15 mm 133 - 169 mm 62 mm 90 mm 28 mm
Note: All sizes have stud clearance holes of 15.5mm, allowing fixing sizes M10, M12 & M14 to be used.
