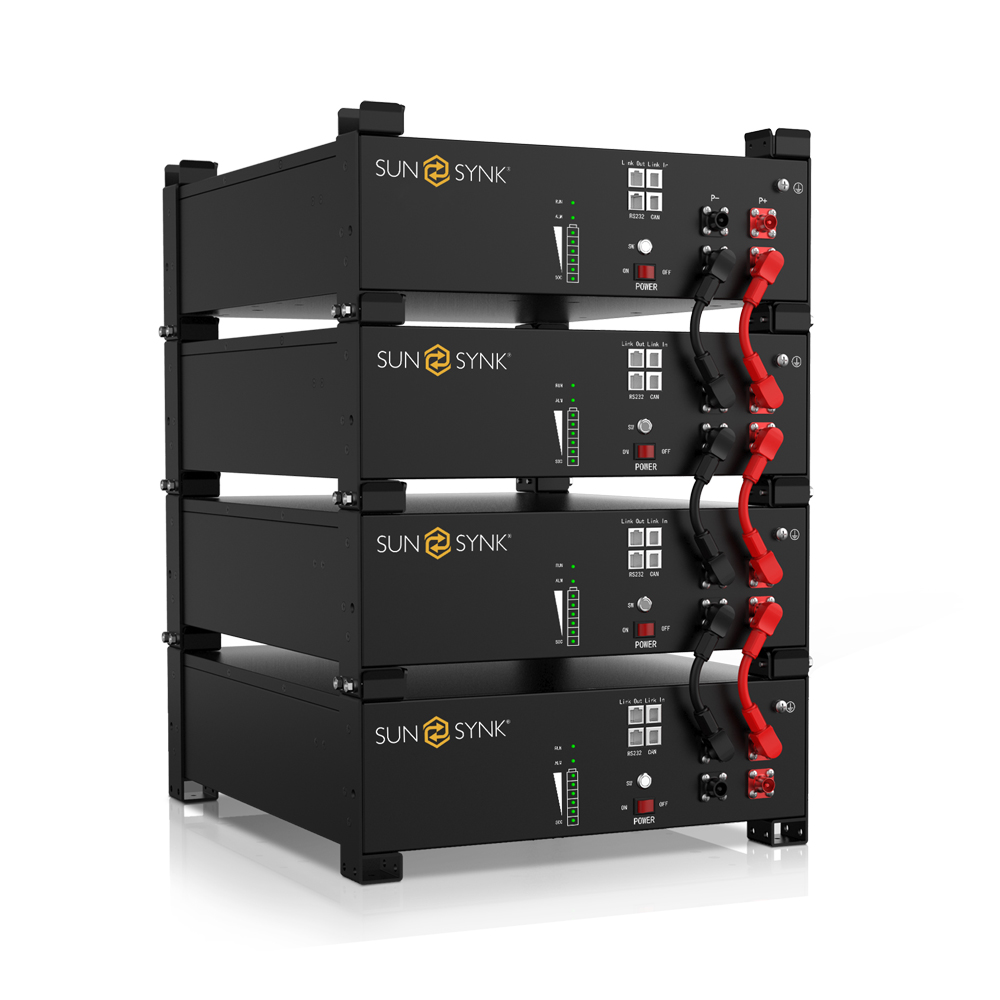

Sunsynk SUN-BATT-5.32R – 5.32kWh Rack Mounted Battery
Product overview
Sunsynk SUN-BATT-5.32R – 5.32kWh Rack Mounted Battery
Sunsynk SUN-BATT-5.32R is a high-performance LiFePO4 battery for residential and small commercial energy storage. It delivers reliable, efficient power with a 45.6V–56.16V range, fully compatible with 48V hybrid inverters. Supporting up to 80% depth of discharge, it maximises usable energy while protecting long-term battery health. Its intelligent BMS monitors voltage, current and temperature, with safeguards against overcharge, over-discharge, over-current, and extreme temperatures. Up to 8 units can be connected in parallel for scalable capacity, and quick paralleling with no dip switches simplifies installation. 1C charge/discharge (0.5C in the UK) allows full use of stored energy.
Key Features & Benefits
5.32kWh LiFePO4 battery provides safe, long-life energy storage for residential and small commercial applications- Supports up to 80% depth of discharge to maximise usable energy
- Built-in BMS monitors voltage, current, and temperature for safe, balanced operation
- Advanced protection: Overcharge, over-discharge, over-current, and high/low temperature safeguards
- Parallel capability supports up to 8 SUN-BATT-5.32R units for scalable energy systems
- Quick paralleling function requires no dip switches for fast, simple installation
- 1C charge/discharge capability (region dependent; UK models 0.5C) for optimal energy utilisation
- Fully compatible with 48V hybrid inverters for seamless system integration
- Rack-mounted design saves space and enables organised, secure installation
- Automatically manages charge, discharge, and cell balancing to prolong battery lifespan
Why Choose the Sunsynk SUN-BATT-5.32R Battery?
The SUN-BATT-5.32R is a reliable, scalable rack-mounted energy storage solution. Featuring LiFePO4 chemistry, it offers enhanced safety, a long life and consistent performance. The Sunsynk SUN-BATT-5.32R Battery includes intelligent BMS protection and supports parallel expansion. It installs easily and delivers dependable backup power for homes and small commercial systems.
Sunsynk Battery Range List
- IP20 REPT Series (5.32kWh – Wall Mounted | Rack Mounted): Made for high-capacity energy independence, supporting massive system builds up to 159.75kWh per inverter
- IP65 L-Series (3.07kWh | 5.12kWh | 5.32kWh): A robust, weather-resistant compact option perfect for residential outdoor or 19-inch rack installations with no dip switches required
- IP20 G-Series (5.32kWh): An optimised indoor storage module featuring 90% depth of discharge and effortless scalability up to 32 units in parallel
- IP65 W-Series (5.32kWh | 10.64kWh): The ultimate all-weather solution, featuring an integrated 125A circuit breaker and advanced low-temperature charging down to -10°C
For Additional Information on the Sunsynk SUN-BATT-5.32R – 5.32kWh Rack Mounted Battery, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
PERFORMANCE |
| SUN-BATT-5.32R | |
| NOMINAL VOLTAGE | 51.2 Vdc |
| NOMINAL CAPACITY | 104Ah |
| BATTERY ENERGY | 5320 Wh |
| CHARGE VOLTAGE | 55.68~56.16Vdc |
| DISCHARGE VOLTAGE | 45.6-56.16 Vdc |
| NOMINAL CHARGE/DISCHARGE CURRENT | 50A |
| NOMINAL CHARGE/DISCHARGE POWER | 2500W |
| MAX. CHARGE / DISCHARGE CURRENT | 100A |
| MAX. CHARGE / DISCHARGE POWER | 5000W |
| SHORT CIRCUIT CURRENT | 350A |
COMMUNICATION |
| SUN-BATT-5.32R | |
| DISPLAY | SOC status indicator, LED indicator |
| COMMUNICATION | RS232, RS485, CAN |
GENERAL SPECIFICATION |
| SUN-BATT-5.32R | |
| DIMENSIONS (W x H x D) |
440 x 550 x 130mm |
| WEIGHT | 46kg |
| INSTALLATION | Rack-Mounted, Wall-Mounted or Cabinet-Mounted |
| WORKING TEMPERATURE | -20ºC ~ 60ºC |
| STORAGE TEMPERATURE | ≤25ºC, 12 months ≤35ºC, 6 months ≤45ºC, 3 months |
| OPERATING / STORAGE / HUMIDITY | ≤ 95%RH |
| MAX. OPERATING ALTITUDE | ≤2000m |
| IP RATING | IP20 |
| CELL TECHNOLOGY | LiFePO4, Lithium Iron Phosphate |
| CYCLE LIFE | 6000 Cycles @ 80% DOD / 25ºC / 0.5C, 60% EOL |
| SCALABILITY | Max. 8 batteries in parallel |
STANDARD COMPLIANCE |
| SUN-BATT-5.32R | |
| CERTIFICATION | PACK: UN38.3, IEC62619, IEC61000, CELL: UN38.3, IEC62619, UL 1642, JET (more available upon request) |
ORDERING AND DELIVERABLE PART |
| SUN-BATT-5.32R | |
| PRODUCT ORDERING PART | SUN-BATT-5.32R Battery SUN-BATT-5.32R Power cable SUN-BATT-5.32R Parallel cable |
