WISKA CWP Premium Cable Gland Kits (Brass)
WISKA CWP Premium Cable Gland Kits (Brass)

Product overview

WISKA CWP Premium LSF Cable Gland Kits (Brass) are Gland Packs for external or internal use with all types on SWA Armoured Cables. They provide environmental seal on the cable outer sheath, as well as mechanical cable retention and electrical continuity via armoured wire termination. They comply with British Standard BS EN 624444:2013, BS 6121: 1989 and EN 50262:1999, while delivering an IP66 ingress protection rating against waterjets and dust.

Part Numbers (Wiska No): CWP 16L (50108820), CWP 20SS (50101680), CWP 20S (50101681), CWP 20L (50101682), CWP 25 (50101683), CWP 32 (50101684), CWP 40 (50101685), CWP 50S (50101686), CWP 50L (50101687), CWP 63S (50101688), CWP 63 (50101689), CWP 75S (50101690), CWP 75L (50101691), CWP 90L (50101692).

Features

  • Suitable for both indoor and outdoor use
  • Protection Class IP66 (Dust-tight and protected against powerful waterjets)
  • Gland made from Brass, while nickel-plated, aluminium and stainless steel options are available upon request
  • Shroud from LSF PVC and Seals from PCP (Black)
  • Suitable for external or internal use with all types on Steel Wire Armoured (SWA) Cables
  • Delivers excellent mechanical cable retention and electrical continuity

Technical Data

  • Complies with BS EN 624444:2013, BS 6121 Part-1 1989, EN 50262:1999
  • Gland rated to IP66 (with thread seal) EN60529
  • Service temperature range between -20°C to +80°C
  • Metric & NPT versions available

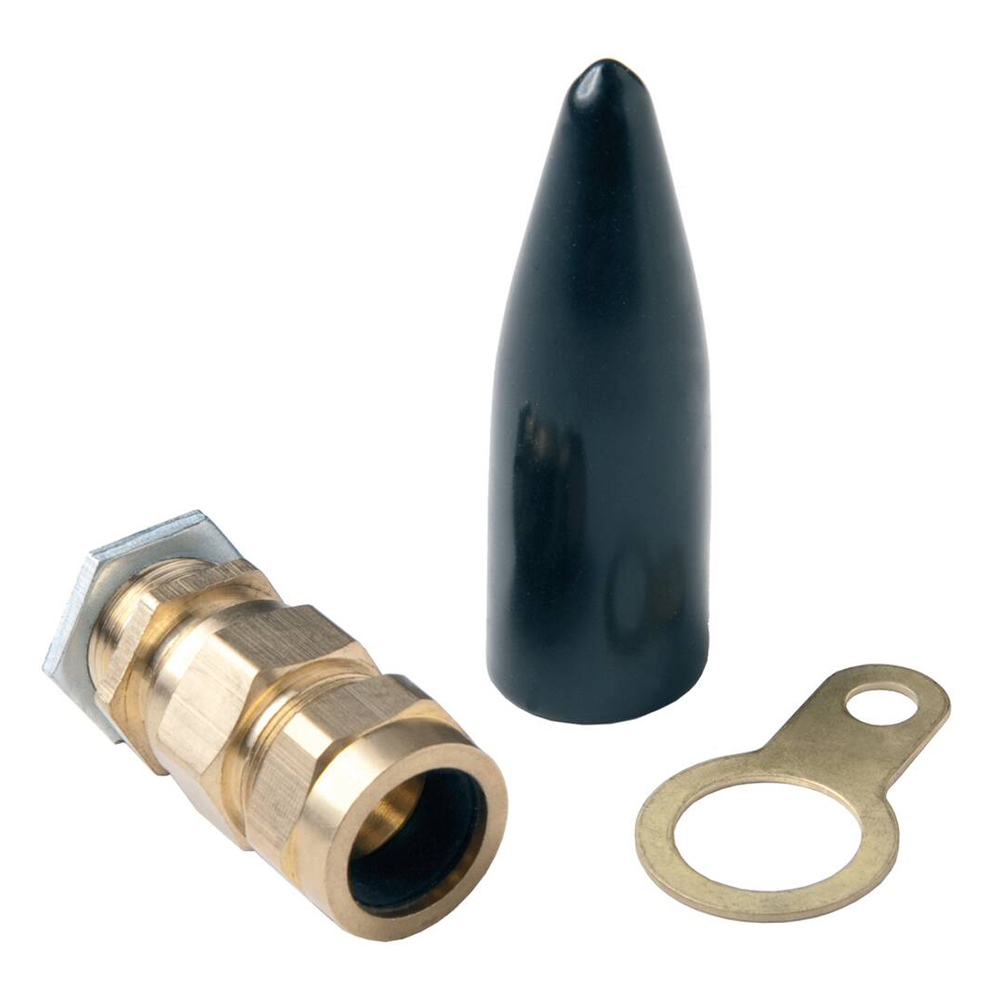

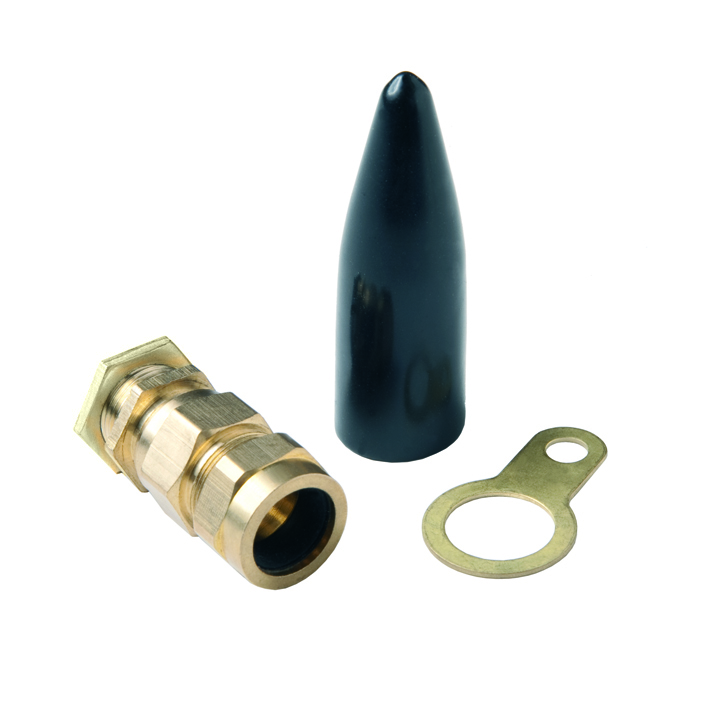

WISKA CWP Premium LSF Cable Gland Kit Contents

  • CW Brass Gland
  • Brass Locknut
  • Brass Earth Tag
  • Nylon Thread Seal
  • LSF Shroud (M16-M32: 2 per kit | M40-M90: 1 per kit)

For more information on WISKA CWP Premium LSF Cable Gland Kits, please consult the Technical Data Table or Download the PDF files below.

Please note that technical information are subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

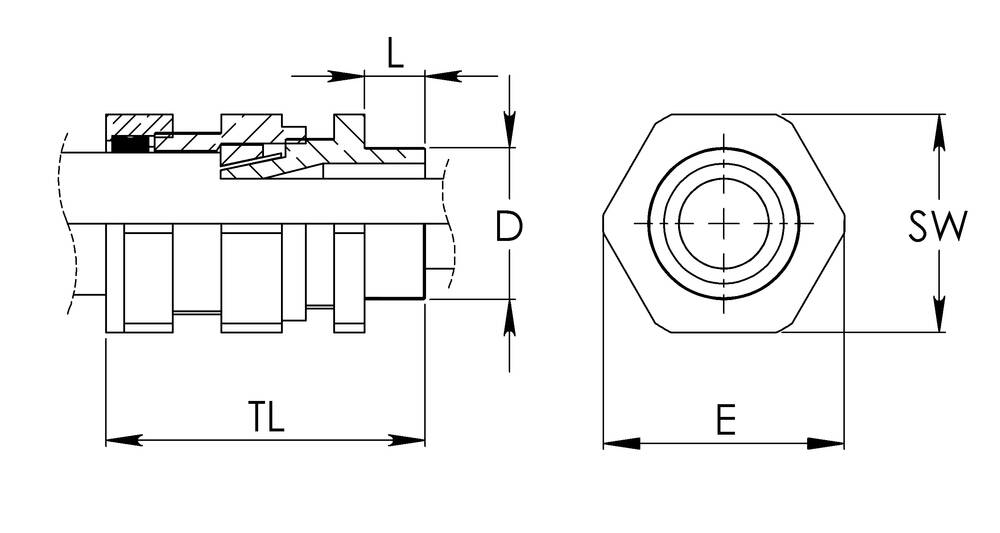

Technical Data

Gland Type Wiska Part No Entry Thread Size
(D)		 Entry Thread Length
(L)		 Cable Diameter Ø Below Armour Armour Wire Diameter Ø Hexagon Flats
(SW)		 Hexagon Corners
(E)		 Qty per Kit
CWP 16L 50108820 M16 x 1.5 10 mm 8.4 - 13.8 mm 9 mm 0.9 mm 22 mm 24.4 mm 2
CWP 20SS 50101680 M20 x 1.5 10 mm 8.4 - 13.8 mm 9 mm 0.9 mm 22 mm 24.4 mm 2
CWP 20S 50101681 M20 x 1.5 10 mm 12.9 - 15.8 mm 11.8 mm 0.9 / 1.25 mm 24 mm 26.6 mm 2
CWP 20L 50101682 M20 x 1.5 10 mm 15.5 - 20.8 mm 13.8 mm 0.9 / 1.25 mm 30 mm 33.3 mm 2
CWP 25L 50101683 M25 x 1.5 10 mm 20.3 - 37.5 mm 19.8 mm 1.25 / 1.6 mm 38 mm 42.2 mm 2
CWP 32L 50101684 M32 x 1.5 10 mm 26.7 - 33.5 mm 26.4 mm 1.6 / 2 mm 46 mm 51 mm 2
CWP 40L 50101685 M40 x 1.5 15 mm 33 - 40.9 mm 32.4 mm 1.6 / 2 mm 55 mm 61 mm 1
CWP 50S 50101686 M50 x 1.5 15 mm 39.4 - 46.3 mm 38 mm 2 / 2.5 mm 60 mm 66.6 mm 1
CWP 50L 50101687 M50 x 1.5 15 mm 45.7 - 52.6 mm 44 mm 2 / 2.5 mm 65 mm 72.1 mm 1
CWP 63S 50101688 M63 x 1.5 15 mm 52.1 - 61.5 mm 49 mm 2.5 mm 75 mm 83.2 mm 1
CWP 63L 50101689 M63 x 1.5 15 mm 58.4 - 65.3 mm 55.5 mm 2.5 mm 80 mm 88.8 mm 1
CWP 75S 50101690 M75 x 1.5 20 mm 64.8 - 73 mm 62 mm 2.5 mm 90 mm 100 mm 1
CWP 75L 50101691 M75 x 1.5 20 mm 71 - 78 mm 67 mm 2.5 mm 95 mm 105.4 mm 1
CWP 90L 50101692 M90 x 1.5 20 mm 81 - 90 mm 79 mm 2.5 / 3.15 mm 110 mm 122.1 mm 1
